Ремкомплект ступицы передней для автомобиля Citroen C4 (10-)

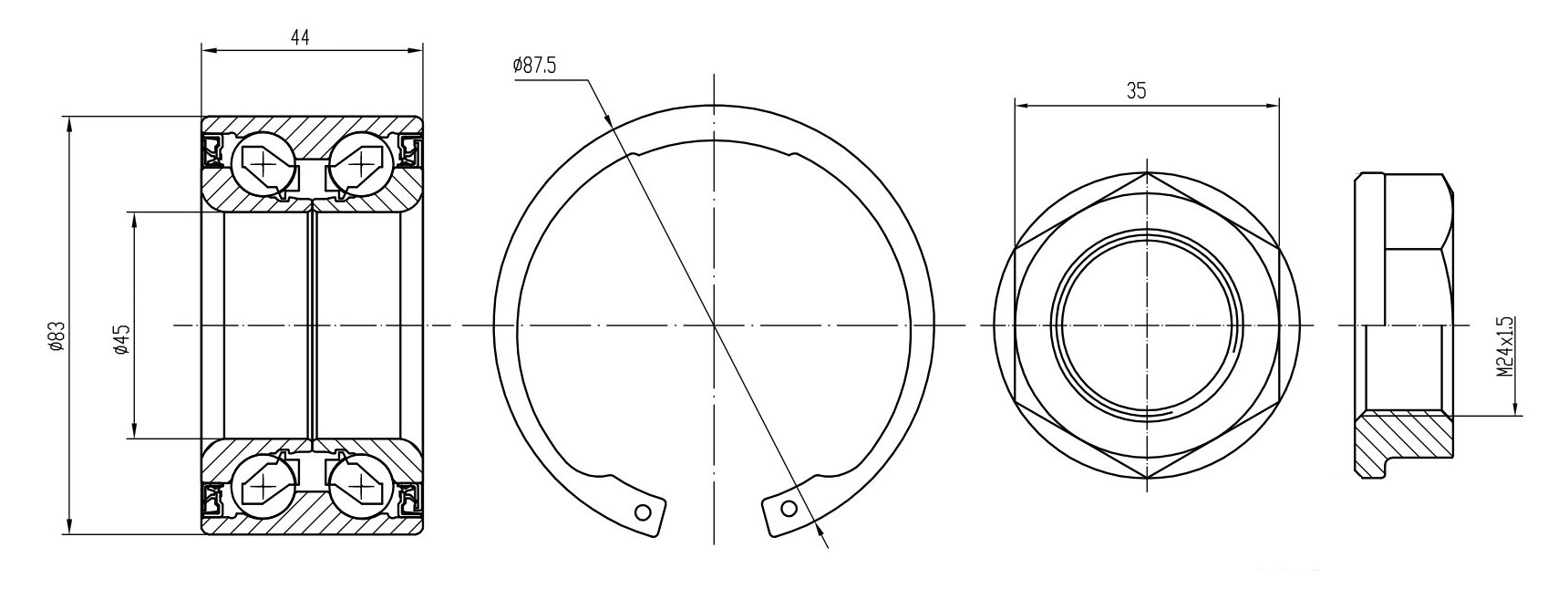

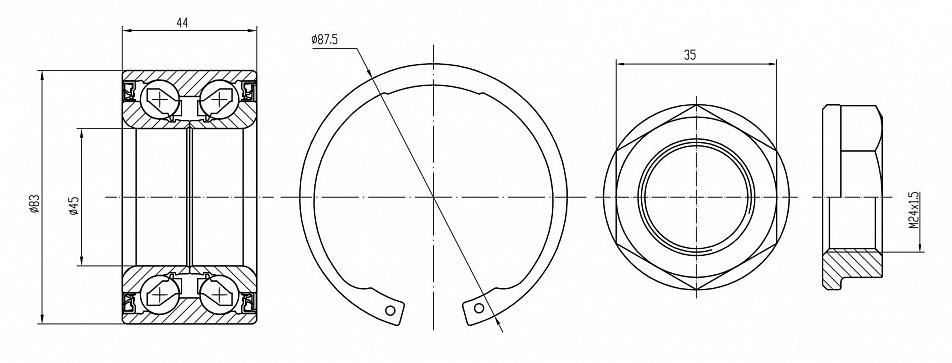

Характеристики
| Особенности конструкции: | Шариковый двухрядный |
| Ось (сторона установки): | Передняя |
| Внутренний диаметр, мм: | 45 |
| Наружный диаметр, мм: | 83 |
| Ширина подшипника (B), мм: | 44 |
ОЕМ-номер
16 077 041 80
3350.82
3350.85
3350.98
16 239 422 80
Основные характеристики
Гарантия
12 месяцев / 30000 км (что наступит раньше)
Особенности конструкции
Шариковый двухрядный
Ось (сторона установки)
Передняя
Внутренний диаметр, мм
45
Наружный диаметр, мм
83
Ширина подшипника (B), мм
44
Товарная линейка
BLACK
Количество на автомобиль
2

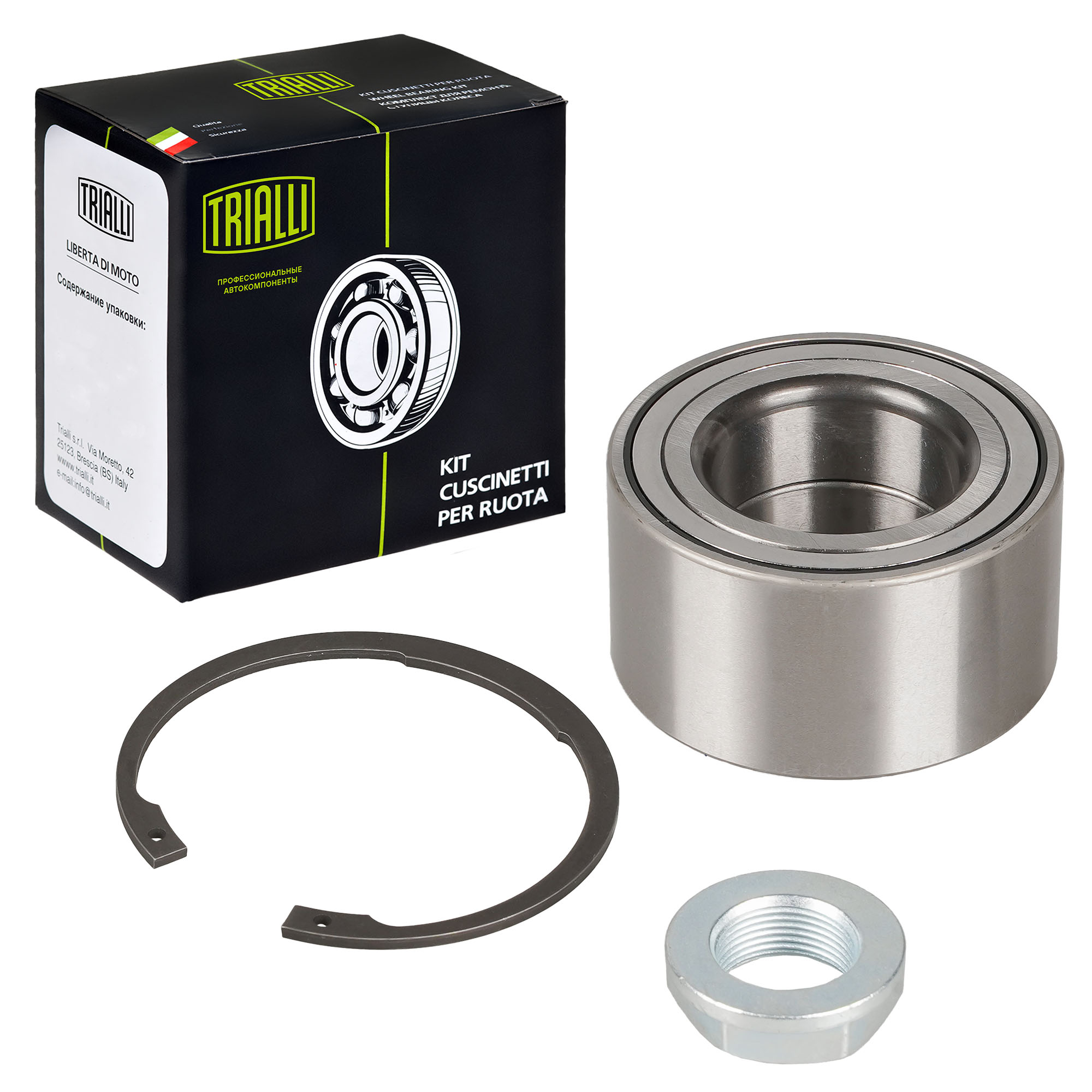

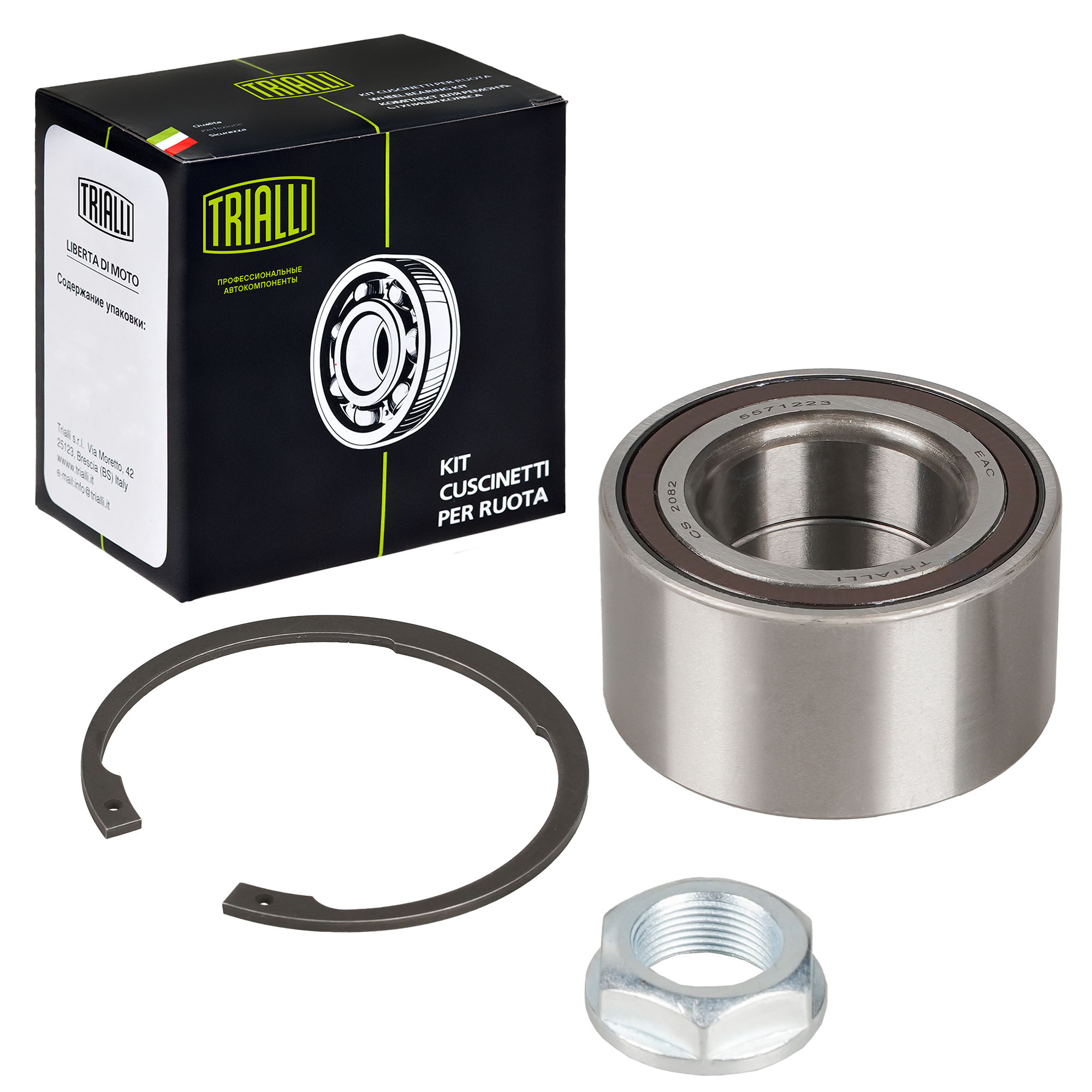

Комплектация
Подшипник (сталь)
1 шт
Гайка (сталь)
1 шт
Стопорное кольцо (сталь)
1 шт
| Марка | Модель | Модификация | Код двигателя | Мощность, лс | Объём двигателя | Год выпуска |
|---|---|---|---|---|---|---|
| CITROEN | C4 II (NC_) | 1.2 THP 110 (NCHNZ6, NCHNV6) | HNV (EB2DTM), HNZ (EB2DT) | 110 | 1199 | 2015 - 2017 |
| CITROEN | C4 II (NC_) | 1.2 THP 130 (NCHNYM, NCHNYT) | HNY (EB2DTS) | 130 | 1199 | 2014 - 2017 |
| CITROEN | C4 II (NC_) | 1.6 BlueHDi 100 | BHY (DV6FD) | 99 | 1560 | 2014 - 2018 |
| CITROEN | C4 II (NC_) | 1.6 BlueHDi 115 | BHX (DV6FC) | 115 | 1560 | 2013 - 2015 |
| CITROEN | C4 II (NC_) | 1.6 BlueHDi 120 | BHZ (DV6FC) | 120 | 1560 | 2015 - 2018 |
| CITROEN | C4 II (NC_) | 1.6 THP 155 | 5FV (EP6CDT) | 156 | 1598 | 2009 - 2016 |
| CITROEN | C4 II (NC_) | 1.6 VTi 120 (NC5FS0, NC5FS9) | 5FS (EP6C) | 120 | 1598 | 2009 - 2016 |
| CITROEN | C4 II (NC_) | 2.0 HDi / BlueHDi 150 | AHR (DW10FD), RHE (DW10CTED4) | 150 | 1997 | 2009 - н.в. |
| CITROEN | C5 III (RD_) | 1.6 HDi 110 (RD9HL0, RD9HR8, RD9HRA) | 9HL (DV6C), 9HR (DV6C) | 112 | 1560 | 2010 - 2012 |
| CITROEN | C5 III (RD_) | 1.6 HDi 110 (RD9HZC) | 9HZ (DV6TED4) | 109 | 1560 | 2008 - 2010 |
| CITROEN | C5 III (RD_) | 1.6 HDi 115 (RD9HRA, RD9HLA, RD9HL0) | 9HL (DV6C), 9HR (DV6C) | 114 | 1560 | 2012 - 2015 |
| CITROEN | C5 III (RD_) | 1.6 THP 150 (RD5FN8, RD5FNA) | 5FN (EP6CDT) | 150 | 1598 | 2010 - 2016 |
| CITROEN | C5 III (RD_) | 1.6 THP 155 (RD5FV8, RD5FNA) | 5FV (EP6CDT) | 156 | 1598 | 2009 - 2016 |
| CITROEN | C5 III (RD_) | 1.6 VTi 120 (RD5FS8, RD5FSA) | 5FS (EP6C) | 120 | 1598 | 2010 - 2015 |
| CITROEN | C5 III (RD_) | 1.8 16V (RD6FXC) | 6FY (EW7A) | 125 | 1749 | 2008 - 2010 |
| CITROEN | C5 III (RD_) | 2.0 16V (RDRFJC, RDRFJF) | RFJ (EW10A) | 140 | 1997 | 2008 - 2014 |
| CITROEN | C5 III (RD_) | 2.0 HDi (RDRHD8, RDRHDJ, RDRHR8, RDRHRJ) | RHD (DW10CTED4), RHF (DW10BTED4), RHR (DW10BTED4) | 136 | 1997 | 2008 - 2014 |
| CITROEN | C5 III (RD_) | 2.0 HDi 140 (RDRHF8, RDRHFA, RDRHA8, RDRHAJ) | RHA (DW10CTED4), RHF (DW10BTED4) | 140 | 1997 | 2008 - 2015 |
| CITROEN | C5 III (RD_) | 2.0 HDi 150 / BlueHDi 150 (RDRHEA, RDRHE8, RDAHRM,... | AHR (DW10FD), AHX (DW10FD), RHE (DW10CTED4) | 150 | 1997 | 2009 - 2017 |
| CITROEN | C5 III (RD_) | 2.0 HDi 165 (RDRHHA, RDRHH8) | RHH (DW10CTED4) | 163 | 1997 | 2009 - 2016 |
| CITROEN | C5 III (RD_) | 2.0 HDi 180 (RDAHWT) | AHW (DW10FC) | 181 | 1997 | 2015 - 2017 |
| CITROEN | C5 III (RD_) | 2.2 HDi (RD4HTH) | 4HS (DW12BTED4) | 170 | 2179 | 2008 - 2011 |
| CITROEN | C5 III (RD_) | 2.2 HDi 200 (RD4HLA) | 4HL (DW12C) | 204 | 2179 | 2010 - 2015 |
| CITROEN | C5 III (RD_) | 2.7 HDi (RDUHZJ) | UHZ (DT17TED4) | 204 | 2720 | 2008 - 2009 |
| CITROEN | C5 III (RD_) | 3.0 HDi 240 (RDX8CA) | DT20C | 241 | 2992 | 2009 - 2014 |
| CITROEN | C5 III (RD_) | 3.0 V6 (RDXFVJ) | XFU (ES9A), XFV (ES9A) | 211 | 2946 | 2008 - 2010 |
| CITROEN | C5 III Break (RW_) | 1.6 HDi 110 | 9HL (DV6C), 9HR (DV6C) | 112 | 1560 | 2010 - 2012 |
| CITROEN | C5 III Break (RW_) | 1.6 HDi 110 (RW9HZC) | 9HZ (DV6TED4) | 109 | 1560 | 2008 - 2010 |
| CITROEN | C5 III Break (RW_) | 1.6 HDi 115 | 9HL (DV6C), 9HR (DV6C) | 114 | 1560 | 2012 - 2015 |
| CITROEN | C5 III Break (RW_) | 1.6 THP 150 | 5FN (EP6CDT) | 150 | 1598 | 2009 - 2016 |
| CITROEN | C5 III Break (RW_) | 1.6 THP 155 | 5FV (EP6CDT) | 156 | 1598 | 2009 - 2016 |
| CITROEN | C5 III Break (RW_) | 1.6 VTI 120 | 5FS (EP6C) | 120 | 1598 | 2010 - 2015 |
| CITROEN | C5 III Break (RW_) | 1.8 i 16V (RW6FYC) | 6FY (EW7A) | 125 | 1749 | 2008 - 2010 |
| CITROEN | C5 III Break (RW_) | 2.0 i 16V (RWRFJC, RWRFJF) | RFJ (EW10A) | 140 | 1997 | 2008 - 2014 |
| CITROEN | C5 III Break (RW_) | 2.0 HDi | RHD (DW10CTED4), RHR (DW10BTED4) | 136 | 1997 | 2008 - 2014 |
| CITROEN | C5 III Break (RW_) | 2.0 HDi 140 | RHA (DW10CTED4), RHF (DW10BTED4) | 140 | 1997 | 2009 - 2015 |
| CITROEN | C5 III Break (RW_) | 2.0 HDi 150 / BlueHDi 150 (RWRHEJ, RWRHE8) | AHR (DW10FD), RHE (DW10CTED4) | 150 | 1997 | 2009 - 2017 |
| CITROEN | C5 III Break (RW_) | 2.0 HDi 165 | RHH (DW10CTED4) | 163 | 1997 | 2009 - 2016 |
| CITROEN | C5 III Break (RW_) | 2.0 HDi 180 | AHW (DW10FC) | 181 | 1997 | 2015 - 2017 |
| CITROEN | C5 III Break (RW_) | 2.2 HDi (RW4HTH) | 4HT (DW12BTED4) | 170 | 2179 | 2008 - 2011 |
| CITROEN | C5 III Break (RW_) | 2.2 HDi 165 | 4HP (DW12BTED4) | 163 | 2179 | 2008 - 2009 |
| CITROEN | C5 III Break (RW_) | 2.2 HDi 200 | 4HL (DW12C) | 204 | 2179 | 2010 - 2015 |
| CITROEN | C5 III Break (RW_) | 2.7 HDi | UHZ (DT17TED4) | 204 | 2720 | 2008 - 2009 |
| CITROEN | C5 III Break (RW_) | 3.0 HDi 240 (RWX8CA) | DT20C | 241 | 2992 | 2009 - 2014 |
| CITROEN | C5 III Break (RW_) | 3.0 V6 (RWXFVA, RWXFUA) | XFU (ES9A), XFV (ES9A) | 211 | 2946 | 2008 - 2010 |
| CITROEN | C6 (TD_) | 2.2 HDi | 4HS (DW12BTED4), 4HT (DW12BTED4) / 4HP (DW12BTED4) | 170,163 | 2179 | 2006 - 2012 |
| CITROEN | C6 (TD_) | 2.7 HDi | UHZ (DT17TED4) | 204 | 2720 | 2005 - 2011 |
| CITROEN | C6 (TD_) | 3.0 HDi | DT20C | 241 | 2993 | 2009 - 2012 |
| CITROEN | C6 (TD_) | 3.0 V6 | XFV (ES9A), XFX (ES9J4S) | 211 | 2946 | 2005 - 2012 |
| CITROEN | DS4 (NX_) | 1.6 BlueHDi 120 | BHZ (DV6FC) | 120 | 1560 | 2014 - 2015 |
| CITROEN | DS4 (NX_) | 1.6 THP 155 | 5FV (EP6CDT) | 156 | 1598 | 2011 - 2015 |
| CITROEN | DS4 (NX_) | 1.6 THP 160 | 5FM (EP6CDTM) | 163 | 1598 | 2012 - 2015 |
| CITROEN | DS4 (NX_) | 1.6 THP 200 | 5FU (EP6CDTX), 5FU (EP6DTX) | 200 | 1598 | 2011 - 2015 |
| CITROEN | DS4 (NX_) | 1.6 VTi 120 | 5FS (EP6C) | 120 | 1598 | 2011 - 2015 |
| CITROEN | DS4 (NX_) | 2.0 BlueHDi 150 | AHX (DW10FD) | 150 | 1997 | 2014 - 2015 |
| CITROEN | DS4 (NX_) | 2.0 BlueHDi 180 | AHW (DW10FC) | 180 | 1997 | 2014 - 2015 |
| CITROEN | DS5 | 1.6 BlueHDi 120 | BHZ (DV6FC) | 120 | 1560 | 2014 - 2015 |
| CITROEN | DS5 | 1.6 HDi | BHX (DV6FC) | 115 | 1560 | 2013 - 2015 |
| CITROEN | DS5 | 1.6 HDi 110 | 9HR (DV6C) | 112 | 1560 | 2011 - 2015 |
| CITROEN | DS5 | 1.6 HDi 115 | 9HD (DV6C) | 114 | 1560 | 2012 - 2015 |
| CITROEN | DS5 | 1.6 THP 155 | 5FV (EP6CDT) | 156 | 1598 | 2011 - 2015 |
| CITROEN | DS5 | 1.6 THP 165 Hybrid | 5GZ (EP6FDT) | 165 | 1598 | 2012 - 2015 |
| CITROEN | DS5 | 1.6 THP 200 | 5FU (EP6CDTX), 5FU (EP6DTX) | 200 | 1598 | 2011 - 2015 |
| CITROEN | DS5 | 2.0 BlueHDi 150 | AHX (DW10FD) | 150 | 1997 | 2014 - 2015 |
| CITROEN | DS5 | 2.0 BlueHDi 180 | AHW (DW10FC) | 180 | 1997 | 2013 - 2015 |
| CITROEN | DS5 | 2.0 HDi 135 | RHD (DW10CB) | 136 | 1997 | 2011 - 2015 |
| CITROEN | DS5 | 2.0 HDi 165 | RHH (DW10CTED4) | 163 | 1997 | 2011 - 2015 |
| CITROEN | DS5 | 2.0 HDi 165 Hybrid4 4x4 | RHC (DW10CTED4) | 163 | 1997 | 2011 - 2015 |
| CITROEN | DS5 | 2.0 HDi 200 Hybrid4 All-wheel Drive | RHC (DW10CTED4) | 200 | 1997 | 2011 - 2015 |
| DS | DS 5 (KF_) | 1.6 BlueHDi 120 | BHZ (DV6FC) | 120 | 1560 | 2015 - 2018 |
| DS | DS 5 (KF_) | 1.6 THP 165 (KF5GZT) | 5GZ (EP6FDT) | 165 | 1598 | 2015 - 2018 |
| DS | DS 5 (KF_) | 1.6 THP 210 | 5GM (EP6FDTX) | 210 | 1598 | 2015 - 2018 |
| DS | DS 5 (KF_) | 2.0 BlueHDi 150 | AHR (DW10FD) | 150 | 1997 | 2015 - 2018 |
| DS | DS 5 (KF_) | 2.0 BlueHDi 180 | AHW (DW10FC) | 180 | 1997 | 2015 - 2018 |
| DS | DS 5 (KF_) | 2.0 Hybrid4 4x4 | RHC (DW10CTED4) | 163 | 1997 | 2015 - 2018 |
| PEUGEOT | 3008 I MPV (0U_) | 2.0 HDi Hybrid4 (0URHCA) | RHC (DW10CTED4) | 200 | 1997 | 2011 - 2016 |
| PEUGEOT | 308 CC (4B_) | 1.6 THP | 5FY (EP6CDTX) | 200 | 1598 | 2010 - 2014 |
| PEUGEOT | 308 I (4A_, 4C_) | 1.6 GTi | 5FY (EP6CDTX) | 200 | 1598 | 2010 - 2014 |
| PEUGEOT | 407 (6D_) | 1.6 HDi 110 (6D9HZC, 6D9HYC) | 9HY (DV6TED4), 9HZ (DV6TED4) | 109 | 1560 | 2004 - 2010 |
| PEUGEOT | 407 (6D_) | 1.8 (6D6FZB) | 6FZ (EW7J4) | 116 | 1749 | 2004 - 2005 |
| PEUGEOT | 407 (6D_) | 1.8 16V (6D6FYC) | 6FY (EW7A) | 125 | 1749 | 2005 - 2010 |
| PEUGEOT | 407 (6D_) | 2.0 (6DRFNB, 6DRFNE) | RFN (EW10J4) | 136 | 1997 | 2004 - 2005 |
| PEUGEOT | 407 (6D_) | 2.0 16V (6DRFJC, 6DRFJE, 6DRFJF) | RFJ (EW10A) | 140 | 1997 | 2005 - 2010 |
| PEUGEOT | 407 (6D_) | 2.0 Bioflex (6DRFJB) | RFJ (EW10A) | 140 | 1997 | 2007 - 2011 |
| PEUGEOT | 407 (6D_) | 2.0 HDi (6DRHHA) | RHH (DW10CTED4) | 163 | 1997 | 2009 - 2010 |
| PEUGEOT | 407 (6D_) | 2.0 HDi (6DRHRH) | RHR (DW10BTED4) | 140 | 1997 | 2009 - 2010 |
| PEUGEOT | 407 (6D_) | 2.0 HDi 135 (6DRHRH, 6DRHRE, 6DRHRG, 6DRHRJ) | RHR (DW10BTED4) | 136 | 1997 | 2004 - 2010 |
| PEUGEOT | 407 (6D_) | 2.2 (6D3FZE, 6D3FZH) | 3FZ (EW12J4) | 158 | 2230 | 2004 - 2006 |
| PEUGEOT | 407 (6D_) | 2.2 16V (6D3FYH, 6D3FYE) | 3FY (EW12J4) | 163 | 2230 | 2005 - 2010 |
| PEUGEOT | 407 (6D_) | 2.2 HDi (6D4HPH) | 4HP (DW12BTED4) | 163 | 2179 | 2006 - 2010 |
| PEUGEOT | 407 (6D_) | 2.2 HDi 170 (6D4HTH) | 4HS (DW12BTED4), 4HT (DW12BTED4) | 170 | 2179 | 2006 - 2010 |
| PEUGEOT | 407 (6D_) | 2.7 HDi (6DUHZJ, 6DUHZF) | UHZ (DT17TED4) | 204 | 2720 | 2005 - 2010 |
| PEUGEOT | 407 (6D_) | 3.0 (6DXFVJ) | XFV (ES9A) | 211 | 2946 | 2004 - 2010 |
| PEUGEOT | 407 Coupe (6C_) | 2.0 HDi | RHR (DW10BTED4) / RHH (DW10CTED4) | 136,163 | 1997 | 2005 - н.в. |
| PEUGEOT | 407 Coupe (6C_) | 2.2 16V | 3FY (EW12J4) | 163 | 2230 | 2005 - н.в. |
| PEUGEOT | 407 Coupe (6C_) | 2.7 HDi | UHZ (DT17TED4) | 204 | 2720 | 2005 - н.в. |
| PEUGEOT | 407 Coupe (6C_) | 3.0 HDi | DT20C | 241 | 2992 | 2009 - н.в. |
| PEUGEOT | 407 Coupe (6C_) | 3.0 V6 | XFV (ES9A) | 211 | 2946 | 2005 - н.в. |
| PEUGEOT | 407 SW (6E_, 6D_) | 1.6 HDi 110 | 9HY (DV6TED4), 9HZ (DV6TED4) | 109 | 1560 | 2004 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | 1.8 | 6FZ (EW7J4) | 116 | 1749 | 2004 - 2005 |
| PEUGEOT | 407 SW (6E_, 6D_) | 1.8 16V | 6FY (EW7A) | 125 | 1749 | 2005 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | 2.0 | RFN (EW10J4) | 136 | 1997 | 2004 - 2005 |
| PEUGEOT | 407 SW (6E_, 6D_) | 2.0 16V | RFJ (EW10A) | 140 | 1997 | 2005 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | 2.0 HDi | RHR (DW10BTED4) / RHH (DW10CTED4) | 140,163 | 1997 | 2008 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | 2.0 HDi 135 | RHR (DW10BTED4) | 136 | 1997 | 2004 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | 2.2 | 3FZ (EW12J4) | 158 | 2230 | 2004 - 2005 |
| PEUGEOT | 407 SW (6E_, 6D_) | 2.2 16V | 3FY (EW12J4) | 163 | 2230 | 2005 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | 2.2 HDi | 4HP (DW12BTED4) | 163 | 2179 | 2008 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | 2.2 HDi 170 | 4HS (DW12BTED4), 4HT (DW12BTED4) | 170 | 2179 | 2006 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | 2.7 HDi | UHZ (DT17TED4) | 204 | 2720 | 2005 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | 3.0 | XFV (ES9A) | 211 | 2946 | 2004 - 2010 |
| PEUGEOT | 508 I (8D_) | 1.6 THP | 5GZ (EP6FDT) / 5FV (EP6CDT) | 165,156 | 1598 | 2010 - 2018 |
| PEUGEOT | 508 I (8D_) | 1.6 BlueHDi 120 | BHZ (DV6FC) | 120 | 1560 | 2014 - 2018 |
| PEUGEOT | 508 I (8D_) | 1.6 HDi | 9HD (DV6CTED) / 9HL (DV6C), 9HR (DV6C) / BHX (DV6FC) | 115,112,116 | 1560 | 2010 - 2018 |
| PEUGEOT | 508 I (8D_) | 1.6 VTi | 5FS (EP6C) | 120 | 1598 | 2010 - 2018 |
| PEUGEOT | 508 I (8D_) | 2.0 BlueHDi 150 | AHX (DW10FD) | 150 | 1997 | 2014 - 2018 |
| PEUGEOT | 508 I (8D_) | 2.0 BlueHDi 180 | AHW (DW10FC) | 180 | 1997 | 2014 - 2018 |
| PEUGEOT | 508 I (8D_) | 2.0 HDi | RHA (DW10CTED4), RHF (DW10BTED4) / RHH (DW10CTED4) | 140,163 | 1997 | 2010 - 2018 |
| PEUGEOT | 508 I (8D_) | 2.0 HDi Hybrid4 AWC | RHC (DW10CTED4) | 200 | 1997 | 2010 - 2018 |
| PEUGEOT | 508 I (8D_) | 2.2 HDi | 4HL (DW12C) | 204 | 2179 | 2010 - 2018 |
| PEUGEOT | 508 | 2.0 HDi Hybrid4 AWC | RHC (DW10CTED4) | 163 | 1997 | 2010 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 1.6 | 5GZ (EP6FDT) | 165 | 1598 | 2012 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 1.6 BlueHDi 120 | BHZ (DV6FC) | 120 | 1560 | 2014 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 1.6 HDi | 9HL (DV6C), 9HR (DV6C) / BHX (DV6FC) | 112,115,116 | 1560 | 2010 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 1.6 THP | 5FV (EP6CDT) | 156 | 1598 | 2010 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 1.6 VTi | 5FS (EP6C) | 120 | 1598 | 2010 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 2.0 BlueHDi 150 | AHX (DW10FD) | 150 | 1997 | 2014 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 2.0 BlueHDi 180 | AHW (DW10FC) | 180 | 1997 | 2014 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 2.0 HDi | RHH (DW10CTED4) / RHA (DW10CTED4), RHF (DW10BTED4) | 163,140 | 1997 | 2010 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 2.0 HDi 180 RXH | AHW (DW10FC) | 181 | 1997 | 2014 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 2.0 HDi RXH Hybrid4 | RHC (DW10CTED4) | 200 | 1997 | 2010 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 2.2 HDi | 4HL (DW12C) | 204 | 2179 | 2010 - 2018 |
| PEUGEOT | 607 (9D, 9U) | 2.0 | RFN (EW10J4) | 136 | 1997 | 2000 - 2005 |
| PEUGEOT | 607 (9D, 9U) | 2.0 HDI | RHZ (DW10ATED) / RHR (DW10BTED4) | 109,136 | 1997 | 2000 - 2011 |
| PEUGEOT | 607 (9D, 9U) | 2.2 16V | 3FZ (EW12J4) / 3FY (EW12J4) | 158,163 | 2230 | 2000 - 2010 |
| PEUGEOT | 607 (9D, 9U) | 2.2 HDi | 4HX (DW12TED4) / 4HS (DW12BTED4), 4HT (DW12BTED4) | 133,170 | 2179 | 2000 - 2010 |
| PEUGEOT | 607 (9D, 9U) | 2.7 HDi 24V | DT17TED4 | 204 | 2721 | 2004 - 2011 |
| PEUGEOT | 607 (9D, 9U) | 3.0 V6 24V | XFX (ES9J4S) / XFV (ES9A), XFX (ES9J4S) | 207,211 | 2946 | 2000 - 2011 |
| PEUGEOT | RCZ | 1.6 16V | 5FV (EP6CDT) / 5FU (EP6CDTX) | 156,200 | 1598 | 2010 - 2015 |
| PEUGEOT | RCZ | 1.6 THP 150 | 5FE (EP6CDTMD) | 150 | 1598 | 2011 - 2015 |
| PEUGEOT | RCZ | 1.6 THP 270 | 5FG (EP6CDTR) | 270 | 1598 | 2013 - 2015 |
| PEUGEOT | RCZ | 2.0 HDi | RHH (DW10CTED4) | 163 | 1997 | 2010 - 2015 |
| PEUGEOT | 3008 | 2.0 HDi Hybrid4 | RHC (DW10CTED4) | 165 | 1997 | 2011 - 2016 |
Характеристики
| Особенности конструкции: | Шариковый двухрядный |
| Ось (сторона установки): | Передняя |
| Внутренний диаметр, мм: | 45 |
| Наружный диаметр, мм: | 83 |
| Ширина подшипника (B), мм: | 44 |
| Товарная линейка: | BLACK |
| Количество на автомобиль: | 2 |
Комплектация
Подшипник (сталь)
1 шт
Гайка (сталь)
1 шт
Стопорное кольцо (сталь)
1 шт
ОЕМ номера
16 077 041 80
3350.82
3350.85
3350.98
16 239 422 80
Применяемость
Информация по применяемости изделий к конкретной модели автомобиля является справочной
| Марка | Модель | Двигатель | Мощность, лс | Объём двигателя | Год |
|---|---|---|---|---|---|
| CITROEN | C4 II (NC_) | HNV (EB2DTM), HNZ (EB2DT) | 110 | 1199 | 2015 - 2017 |
| CITROEN | C4 II (NC_) | HNY (EB2DTS) | 130 | 1199 | 2014 - 2017 |
| CITROEN | C4 II (NC_) | BHY (DV6FD) | 99 | 1560 | 2014 - 2018 |
| CITROEN | C4 II (NC_) | BHX (DV6FC) | 115 | 1560 | 2013 - 2015 |
| CITROEN | C4 II (NC_) | BHZ (DV6FC) | 120 | 1560 | 2015 - 2018 |
| CITROEN | C4 II (NC_) | 5FV (EP6CDT) | 156 | 1598 | 2009 - 2016 |
| CITROEN | C4 II (NC_) | 5FS (EP6C) | 120 | 1598 | 2009 - 2016 |
| CITROEN | C4 II (NC_) | AHR (DW10FD), RHE (DW10CTED4) | 150 | 1997 | 2009 - н.в. |
| CITROEN | C5 III (RD_) | 9HL (DV6C), 9HR (DV6C) | 112 | 1560 | 2010 - 2012 |
| CITROEN | C5 III (RD_) | 9HZ (DV6TED4) | 109 | 1560 | 2008 - 2010 |
| CITROEN | C5 III (RD_) | 9HL (DV6C), 9HR (DV6C) | 114 | 1560 | 2012 - 2015 |
| CITROEN | C5 III (RD_) | 5FN (EP6CDT) | 150 | 1598 | 2010 - 2016 |
| CITROEN | C5 III (RD_) | 5FV (EP6CDT) | 156 | 1598 | 2009 - 2016 |
| CITROEN | C5 III (RD_) | 5FS (EP6C) | 120 | 1598 | 2010 - 2015 |
| CITROEN | C5 III (RD_) | 6FY (EW7A) | 125 | 1749 | 2008 - 2010 |
| CITROEN | C5 III (RD_) | RFJ (EW10A) | 140 | 1997 | 2008 - 2014 |
| CITROEN | C5 III (RD_) | RHD (DW10CTED4), RHF (DW10BTED4), RHR (DW10BTED4) | 136 | 1997 | 2008 - 2014 |
| CITROEN | C5 III (RD_) | RHA (DW10CTED4), RHF (DW10BTED4) | 140 | 1997 | 2008 - 2015 |
| CITROEN | C5 III (RD_) | AHR (DW10FD), AHX (DW10FD), RHE (DW10CTED4) | 150 | 1997 | 2009 - 2017 |
| CITROEN | C5 III (RD_) | RHH (DW10CTED4) | 163 | 1997 | 2009 - 2016 |
| CITROEN | C5 III (RD_) | AHW (DW10FC) | 181 | 1997 | 2015 - 2017 |
| CITROEN | C5 III (RD_) | 4HS (DW12BTED4) | 170 | 2179 | 2008 - 2011 |
| CITROEN | C5 III (RD_) | 4HL (DW12C) | 204 | 2179 | 2010 - 2015 |
| CITROEN | C5 III (RD_) | UHZ (DT17TED4) | 204 | 2720 | 2008 - 2009 |
| CITROEN | C5 III (RD_) | DT20C | 241 | 2992 | 2009 - 2014 |
| CITROEN | C5 III (RD_) | XFU (ES9A), XFV (ES9A) | 211 | 2946 | 2008 - 2010 |
| CITROEN | C5 III Break (RW_) | 9HL (DV6C), 9HR (DV6C) | 112 | 1560 | 2010 - 2012 |
| CITROEN | C5 III Break (RW_) | 9HZ (DV6TED4) | 109 | 1560 | 2008 - 2010 |
| CITROEN | C5 III Break (RW_) | 9HL (DV6C), 9HR (DV6C) | 114 | 1560 | 2012 - 2015 |
| CITROEN | C5 III Break (RW_) | 5FN (EP6CDT) | 150 | 1598 | 2009 - 2016 |
| CITROEN | C5 III Break (RW_) | 5FV (EP6CDT) | 156 | 1598 | 2009 - 2016 |
| CITROEN | C5 III Break (RW_) | 5FS (EP6C) | 120 | 1598 | 2010 - 2015 |
| CITROEN | C5 III Break (RW_) | 6FY (EW7A) | 125 | 1749 | 2008 - 2010 |
| CITROEN | C5 III Break (RW_) | RFJ (EW10A) | 140 | 1997 | 2008 - 2014 |
| CITROEN | C5 III Break (RW_) | RHD (DW10CTED4), RHR (DW10BTED4) | 136 | 1997 | 2008 - 2014 |
| CITROEN | C5 III Break (RW_) | RHA (DW10CTED4), RHF (DW10BTED4) | 140 | 1997 | 2009 - 2015 |
| CITROEN | C5 III Break (RW_) | AHR (DW10FD), RHE (DW10CTED4) | 150 | 1997 | 2009 - 2017 |
| CITROEN | C5 III Break (RW_) | RHH (DW10CTED4) | 163 | 1997 | 2009 - 2016 |
| CITROEN | C5 III Break (RW_) | AHW (DW10FC) | 181 | 1997 | 2015 - 2017 |
| CITROEN | C5 III Break (RW_) | 4HT (DW12BTED4) | 170 | 2179 | 2008 - 2011 |
| CITROEN | C5 III Break (RW_) | 4HP (DW12BTED4) | 163 | 2179 | 2008 - 2009 |
| CITROEN | C5 III Break (RW_) | 4HL (DW12C) | 204 | 2179 | 2010 - 2015 |
| CITROEN | C5 III Break (RW_) | UHZ (DT17TED4) | 204 | 2720 | 2008 - 2009 |
| CITROEN | C5 III Break (RW_) | DT20C | 241 | 2992 | 2009 - 2014 |
| CITROEN | C5 III Break (RW_) | XFU (ES9A), XFV (ES9A) | 211 | 2946 | 2008 - 2010 |
| CITROEN | C6 (TD_) | 4HS (DW12BTED4), 4HT (DW12BTED4) / 4HP (DW12BTED4) | 170,163 | 2179 | 2006 - 2012 |
| CITROEN | C6 (TD_) | UHZ (DT17TED4) | 204 | 2720 | 2005 - 2011 |
| CITROEN | C6 (TD_) | DT20C | 241 | 2993 | 2009 - 2012 |
| CITROEN | C6 (TD_) | XFV (ES9A), XFX (ES9J4S) | 211 | 2946 | 2005 - 2012 |
| CITROEN | DS4 (NX_) | BHZ (DV6FC) | 120 | 1560 | 2014 - 2015 |
| CITROEN | DS4 (NX_) | 5FV (EP6CDT) | 156 | 1598 | 2011 - 2015 |
| CITROEN | DS4 (NX_) | 5FM (EP6CDTM) | 163 | 1598 | 2012 - 2015 |
| CITROEN | DS4 (NX_) | 5FU (EP6CDTX), 5FU (EP6DTX) | 200 | 1598 | 2011 - 2015 |
| CITROEN | DS4 (NX_) | 5FS (EP6C) | 120 | 1598 | 2011 - 2015 |
| CITROEN | DS4 (NX_) | AHX (DW10FD) | 150 | 1997 | 2014 - 2015 |
| CITROEN | DS4 (NX_) | AHW (DW10FC) | 180 | 1997 | 2014 - 2015 |
| CITROEN | DS5 | BHZ (DV6FC) | 120 | 1560 | 2014 - 2015 |
| CITROEN | DS5 | BHX (DV6FC) | 115 | 1560 | 2013 - 2015 |
| CITROEN | DS5 | 9HR (DV6C) | 112 | 1560 | 2011 - 2015 |
| CITROEN | DS5 | 9HD (DV6C) | 114 | 1560 | 2012 - 2015 |
| CITROEN | DS5 | 5FV (EP6CDT) | 156 | 1598 | 2011 - 2015 |
| CITROEN | DS5 | 5GZ (EP6FDT) | 165 | 1598 | 2012 - 2015 |
| CITROEN | DS5 | 5FU (EP6CDTX), 5FU (EP6DTX) | 200 | 1598 | 2011 - 2015 |
| CITROEN | DS5 | AHX (DW10FD) | 150 | 1997 | 2014 - 2015 |
| CITROEN | DS5 | AHW (DW10FC) | 180 | 1997 | 2013 - 2015 |
| CITROEN | DS5 | RHD (DW10CB) | 136 | 1997 | 2011 - 2015 |
| CITROEN | DS5 | RHH (DW10CTED4) | 163 | 1997 | 2011 - 2015 |
| CITROEN | DS5 | RHC (DW10CTED4) | 163 | 1997 | 2011 - 2015 |
| CITROEN | DS5 | RHC (DW10CTED4) | 200 | 1997 | 2011 - 2015 |
| DS | DS 5 (KF_) | BHZ (DV6FC) | 120 | 1560 | 2015 - 2018 |
| DS | DS 5 (KF_) | 5GZ (EP6FDT) | 165 | 1598 | 2015 - 2018 |
| DS | DS 5 (KF_) | 5GM (EP6FDTX) | 210 | 1598 | 2015 - 2018 |
| DS | DS 5 (KF_) | AHR (DW10FD) | 150 | 1997 | 2015 - 2018 |
| DS | DS 5 (KF_) | AHW (DW10FC) | 180 | 1997 | 2015 - 2018 |
| DS | DS 5 (KF_) | RHC (DW10CTED4) | 163 | 1997 | 2015 - 2018 |
| PEUGEOT | 3008 I MPV (0U_) | RHC (DW10CTED4) | 200 | 1997 | 2011 - 2016 |
| PEUGEOT | 308 CC (4B_) | 5FY (EP6CDTX) | 200 | 1598 | 2010 - 2014 |
| PEUGEOT | 308 I (4A_, 4C_) | 5FY (EP6CDTX) | 200 | 1598 | 2010 - 2014 |
| PEUGEOT | 407 (6D_) | 9HY (DV6TED4), 9HZ (DV6TED4) | 109 | 1560 | 2004 - 2010 |
| PEUGEOT | 407 (6D_) | 6FZ (EW7J4) | 116 | 1749 | 2004 - 2005 |
| PEUGEOT | 407 (6D_) | 6FY (EW7A) | 125 | 1749 | 2005 - 2010 |
| PEUGEOT | 407 (6D_) | RFN (EW10J4) | 136 | 1997 | 2004 - 2005 |
| PEUGEOT | 407 (6D_) | RFJ (EW10A) | 140 | 1997 | 2005 - 2010 |
| PEUGEOT | 407 (6D_) | RFJ (EW10A) | 140 | 1997 | 2007 - 2011 |
| PEUGEOT | 407 (6D_) | RHH (DW10CTED4) | 163 | 1997 | 2009 - 2010 |
| PEUGEOT | 407 (6D_) | RHR (DW10BTED4) | 140 | 1997 | 2009 - 2010 |
| PEUGEOT | 407 (6D_) | RHR (DW10BTED4) | 136 | 1997 | 2004 - 2010 |
| PEUGEOT | 407 (6D_) | 3FZ (EW12J4) | 158 | 2230 | 2004 - 2006 |
| PEUGEOT | 407 (6D_) | 3FY (EW12J4) | 163 | 2230 | 2005 - 2010 |
| PEUGEOT | 407 (6D_) | 4HP (DW12BTED4) | 163 | 2179 | 2006 - 2010 |
| PEUGEOT | 407 (6D_) | 4HS (DW12BTED4), 4HT (DW12BTED4) | 170 | 2179 | 2006 - 2010 |
| PEUGEOT | 407 (6D_) | UHZ (DT17TED4) | 204 | 2720 | 2005 - 2010 |
| PEUGEOT | 407 (6D_) | XFV (ES9A) | 211 | 2946 | 2004 - 2010 |
| PEUGEOT | 407 Coupe (6C_) | RHR (DW10BTED4) / RHH (DW10CTED4) | 136,163 | 1997 | 2005 - н.в. |
| PEUGEOT | 407 Coupe (6C_) | 3FY (EW12J4) | 163 | 2230 | 2005 - н.в. |
| PEUGEOT | 407 Coupe (6C_) | UHZ (DT17TED4) | 204 | 2720 | 2005 - н.в. |
| PEUGEOT | 407 Coupe (6C_) | DT20C | 241 | 2992 | 2009 - н.в. |
| PEUGEOT | 407 Coupe (6C_) | XFV (ES9A) | 211 | 2946 | 2005 - н.в. |
| PEUGEOT | 407 SW (6E_, 6D_) | 9HY (DV6TED4), 9HZ (DV6TED4) | 109 | 1560 | 2004 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | 6FZ (EW7J4) | 116 | 1749 | 2004 - 2005 |
| PEUGEOT | 407 SW (6E_, 6D_) | 6FY (EW7A) | 125 | 1749 | 2005 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | RFN (EW10J4) | 136 | 1997 | 2004 - 2005 |
| PEUGEOT | 407 SW (6E_, 6D_) | RFJ (EW10A) | 140 | 1997 | 2005 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | RHR (DW10BTED4) / RHH (DW10CTED4) | 140,163 | 1997 | 2008 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | RHR (DW10BTED4) | 136 | 1997 | 2004 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | 3FZ (EW12J4) | 158 | 2230 | 2004 - 2005 |
| PEUGEOT | 407 SW (6E_, 6D_) | 3FY (EW12J4) | 163 | 2230 | 2005 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | 4HP (DW12BTED4) | 163 | 2179 | 2008 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | 4HS (DW12BTED4), 4HT (DW12BTED4) | 170 | 2179 | 2006 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | UHZ (DT17TED4) | 204 | 2720 | 2005 - 2010 |
| PEUGEOT | 407 SW (6E_, 6D_) | XFV (ES9A) | 211 | 2946 | 2004 - 2010 |
| PEUGEOT | 508 I (8D_) | 5GZ (EP6FDT) / 5FV (EP6CDT) | 165,156 | 1598 | 2010 - 2018 |
| PEUGEOT | 508 I (8D_) | BHZ (DV6FC) | 120 | 1560 | 2014 - 2018 |
| PEUGEOT | 508 I (8D_) | 9HD (DV6CTED) / 9HL (DV6C), 9HR (DV6C) / BHX (DV6FC) | 115,112,116 | 1560 | 2010 - 2018 |
| PEUGEOT | 508 I (8D_) | 5FS (EP6C) | 120 | 1598 | 2010 - 2018 |
| PEUGEOT | 508 I (8D_) | AHX (DW10FD) | 150 | 1997 | 2014 - 2018 |
| PEUGEOT | 508 I (8D_) | AHW (DW10FC) | 180 | 1997 | 2014 - 2018 |
| PEUGEOT | 508 I (8D_) | RHA (DW10CTED4), RHF (DW10BTED4) / RHH (DW10CTED4) | 140,163 | 1997 | 2010 - 2018 |
| PEUGEOT | 508 I (8D_) | RHC (DW10CTED4) | 200 | 1997 | 2010 - 2018 |
| PEUGEOT | 508 I (8D_) | 4HL (DW12C) | 204 | 2179 | 2010 - 2018 |
| PEUGEOT | 508 | RHC (DW10CTED4) | 163 | 1997 | 2010 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 5GZ (EP6FDT) | 165 | 1598 | 2012 - 2018 |
| PEUGEOT | 508 SW I (8E_) | BHZ (DV6FC) | 120 | 1560 | 2014 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 9HL (DV6C), 9HR (DV6C) / BHX (DV6FC) | 112,115,116 | 1560 | 2010 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 5FV (EP6CDT) | 156 | 1598 | 2010 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 5FS (EP6C) | 120 | 1598 | 2010 - 2018 |
| PEUGEOT | 508 SW I (8E_) | AHX (DW10FD) | 150 | 1997 | 2014 - 2018 |
| PEUGEOT | 508 SW I (8E_) | AHW (DW10FC) | 180 | 1997 | 2014 - 2018 |
| PEUGEOT | 508 SW I (8E_) | RHH (DW10CTED4) / RHA (DW10CTED4), RHF (DW10BTED4) | 163,140 | 1997 | 2010 - 2018 |
| PEUGEOT | 508 SW I (8E_) | AHW (DW10FC) | 181 | 1997 | 2014 - 2018 |
| PEUGEOT | 508 SW I (8E_) | RHC (DW10CTED4) | 200 | 1997 | 2010 - 2018 |
| PEUGEOT | 508 SW I (8E_) | 4HL (DW12C) | 204 | 2179 | 2010 - 2018 |
| PEUGEOT | 607 (9D, 9U) | RFN (EW10J4) | 136 | 1997 | 2000 - 2005 |
| PEUGEOT | 607 (9D, 9U) | RHZ (DW10ATED) / RHR (DW10BTED4) | 109,136 | 1997 | 2000 - 2011 |
| PEUGEOT | 607 (9D, 9U) | 3FZ (EW12J4) / 3FY (EW12J4) | 158,163 | 2230 | 2000 - 2010 |
| PEUGEOT | 607 (9D, 9U) | 4HX (DW12TED4) / 4HS (DW12BTED4), 4HT (DW12BTED4) | 133,170 | 2179 | 2000 - 2010 |
| PEUGEOT | 607 (9D, 9U) | DT17TED4 | 204 | 2721 | 2004 - 2011 |
| PEUGEOT | 607 (9D, 9U) | XFX (ES9J4S) / XFV (ES9A), XFX (ES9J4S) | 207,211 | 2946 | 2000 - 2011 |
| PEUGEOT | RCZ | 5FV (EP6CDT) / 5FU (EP6CDTX) | 156,200 | 1598 | 2010 - 2015 |
| PEUGEOT | RCZ | 5FE (EP6CDTMD) | 150 | 1598 | 2011 - 2015 |
| PEUGEOT | RCZ | 5FG (EP6CDTR) | 270 | 1598 | 2013 - 2015 |
| PEUGEOT | RCZ | RHH (DW10CTED4) | 163 | 1997 | 2010 - 2015 |
| PEUGEOT | 3008 | RHC (DW10CTED4) | 165 | 1997 | 2011 - 2016 |
×
