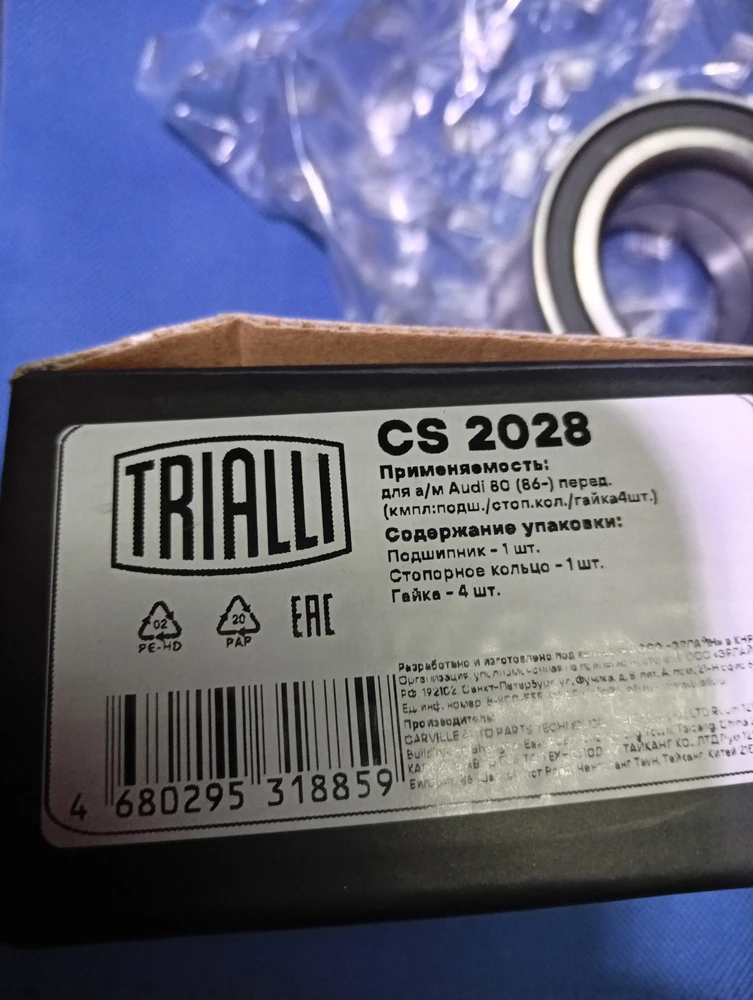

Ремкомплект ступицы передней для автомобиля Audi 80 (86-)
Характеристики

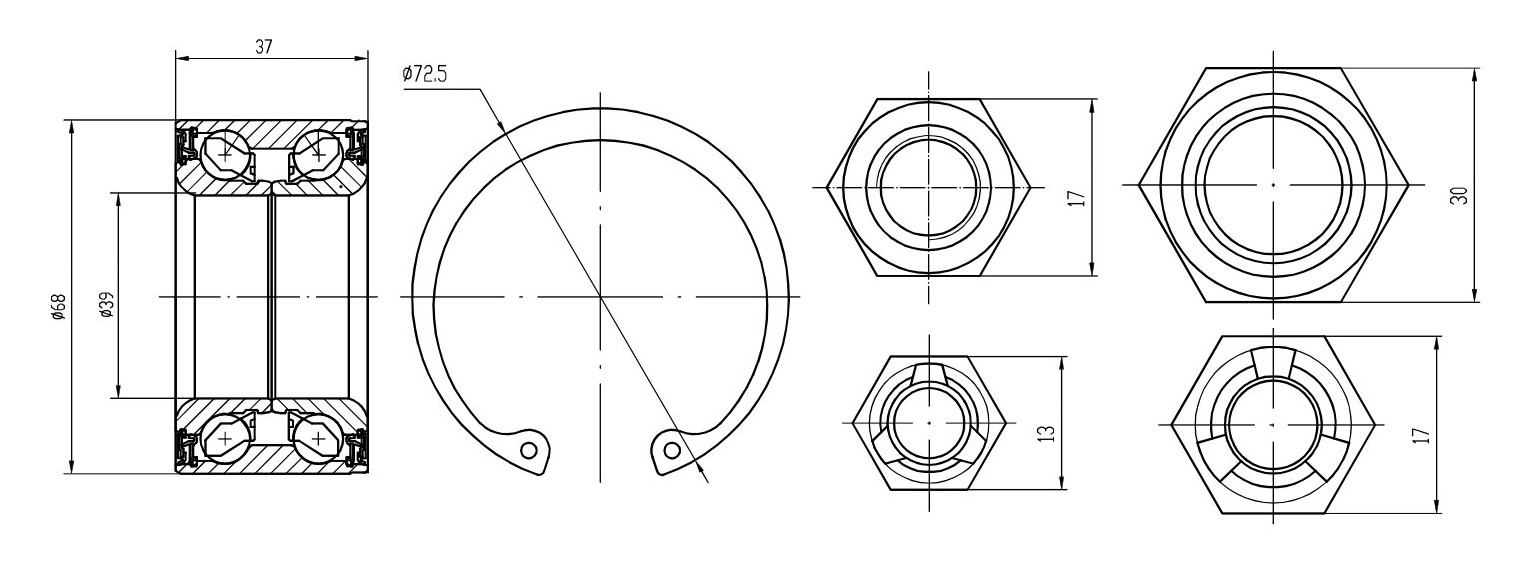

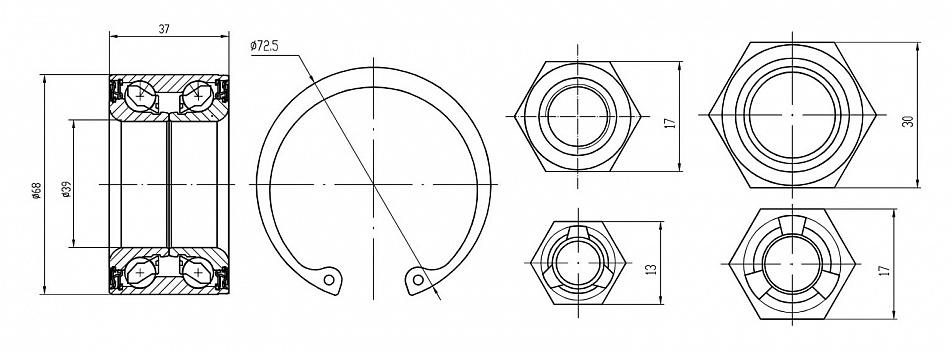

| Особенности конструкции: | Шариковый двухрядный |
| Ось (сторона установки): | Передняя |
| Внутренний диаметр, мм: | 39 |
| Наружный диаметр, мм: | 68 |
| Ширина подшипника (B), мм: | 37 |
ОЕМ-номер
321 498 625 B
321 498 625 C
321 498 625 D
321 498 625 E
331598625
S11-3001015
Основные характеристики
Гарантия
12 месяцев / 30000 км (что наступит раньше)
Особенности конструкции
Шариковый двухрядный
Ось (сторона установки)
Передняя
Внутренний диаметр, мм
39
Наружный диаметр, мм
68
Ширина подшипника (B), мм
37
Товарная линейка
BLACK
Количество на автомобиль
2

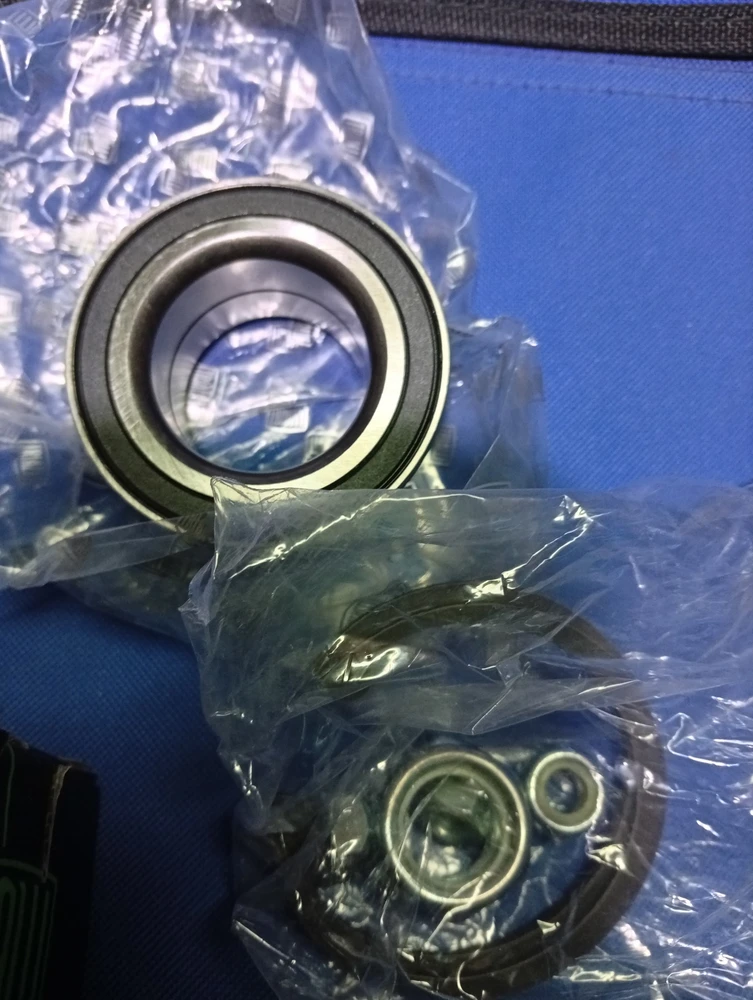

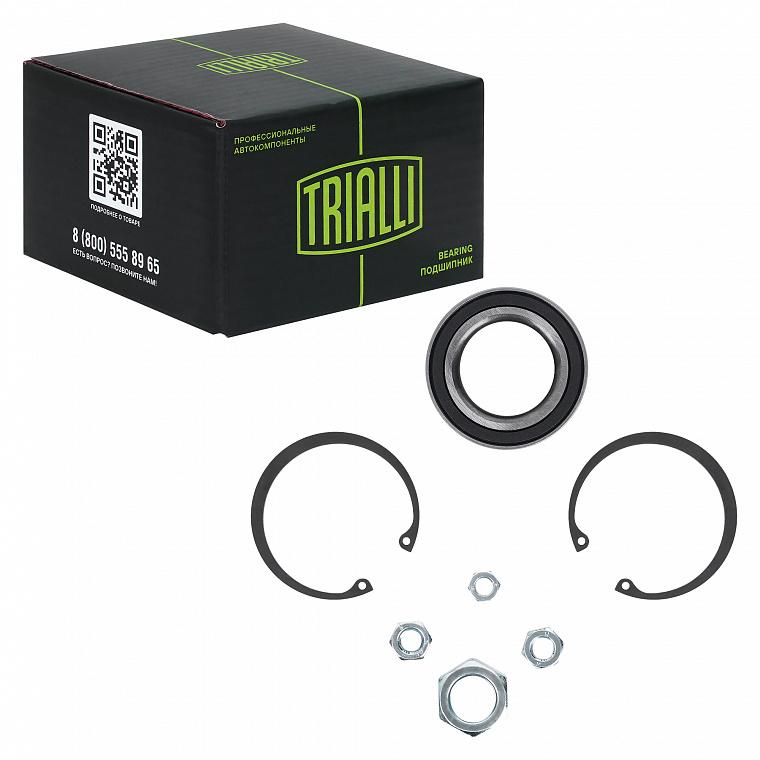

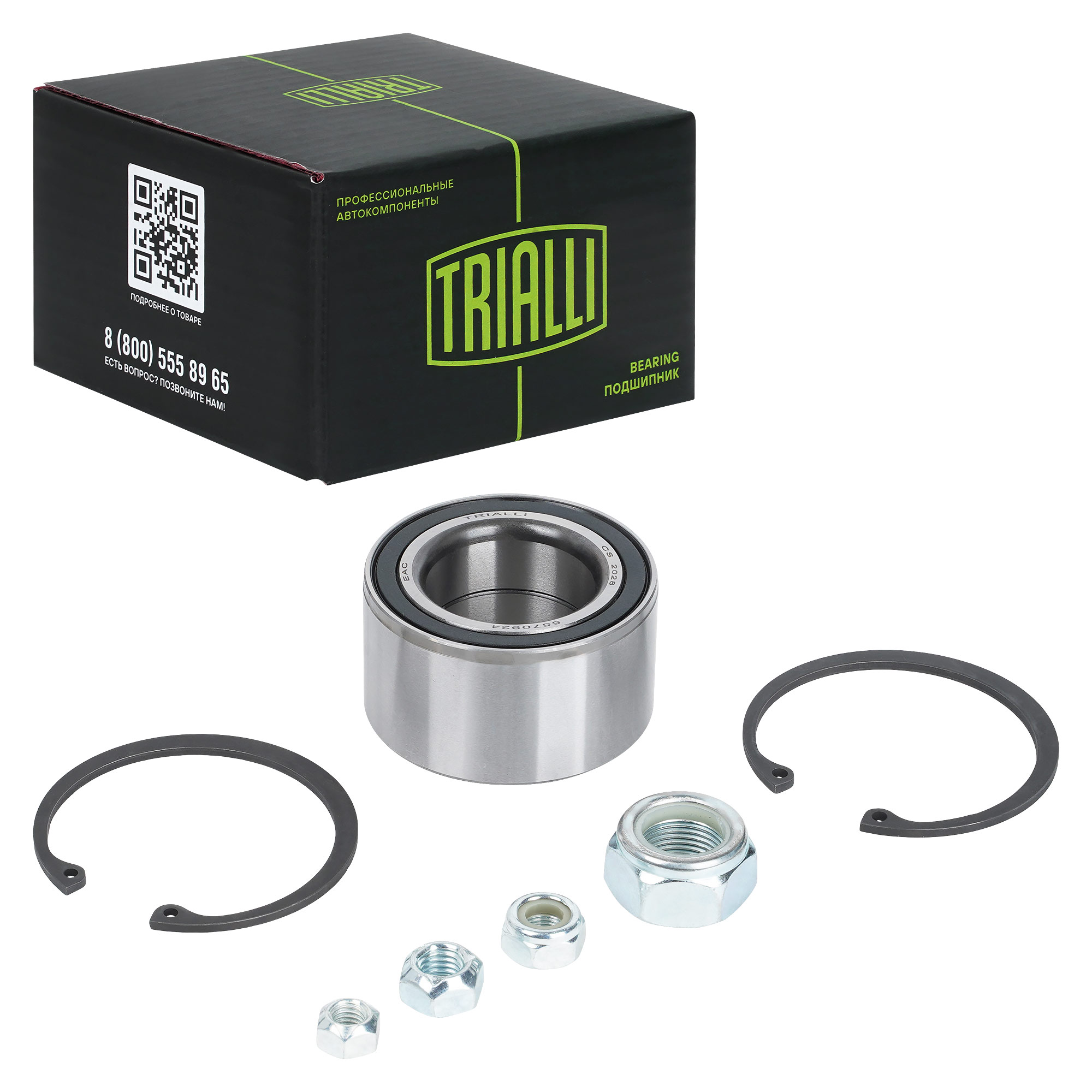

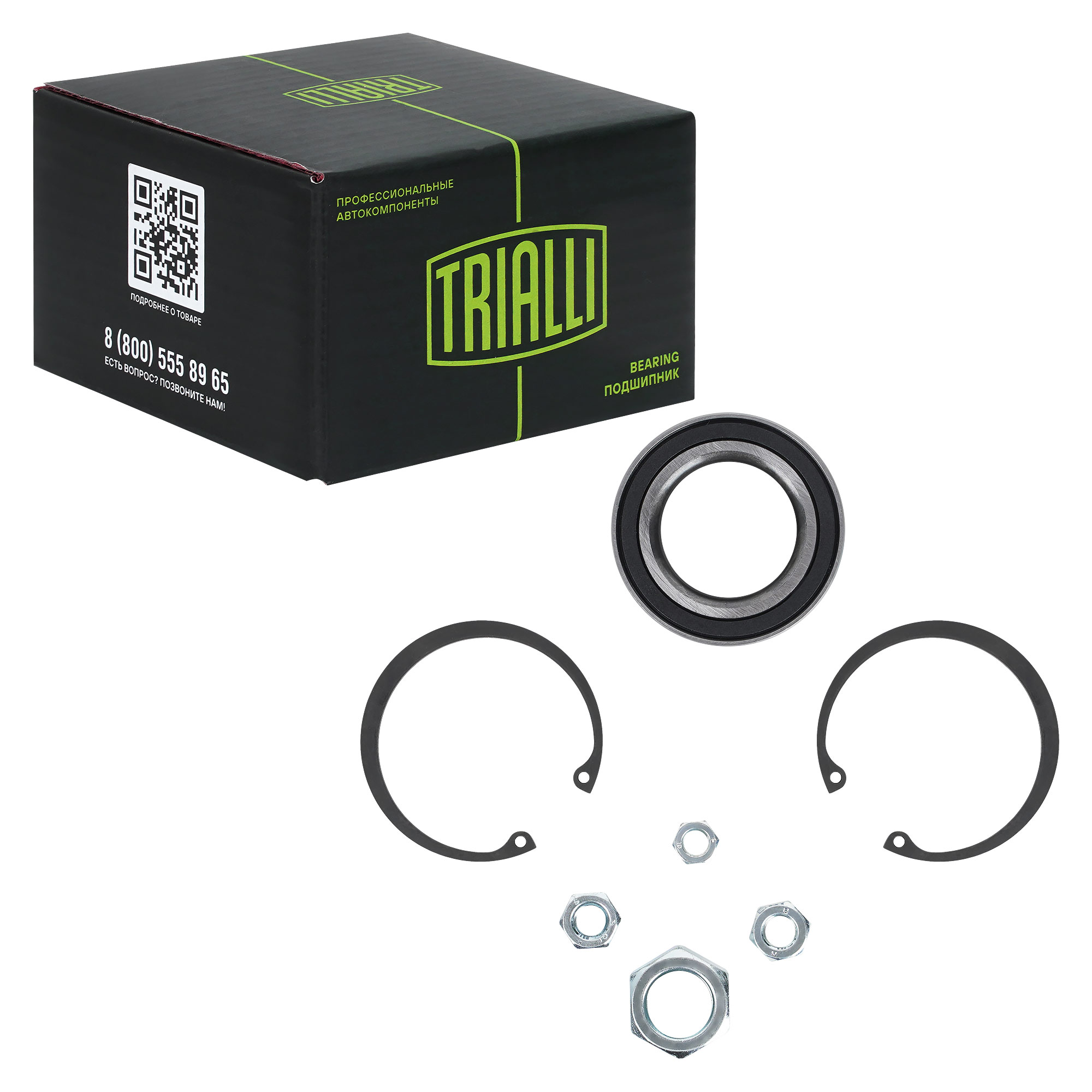

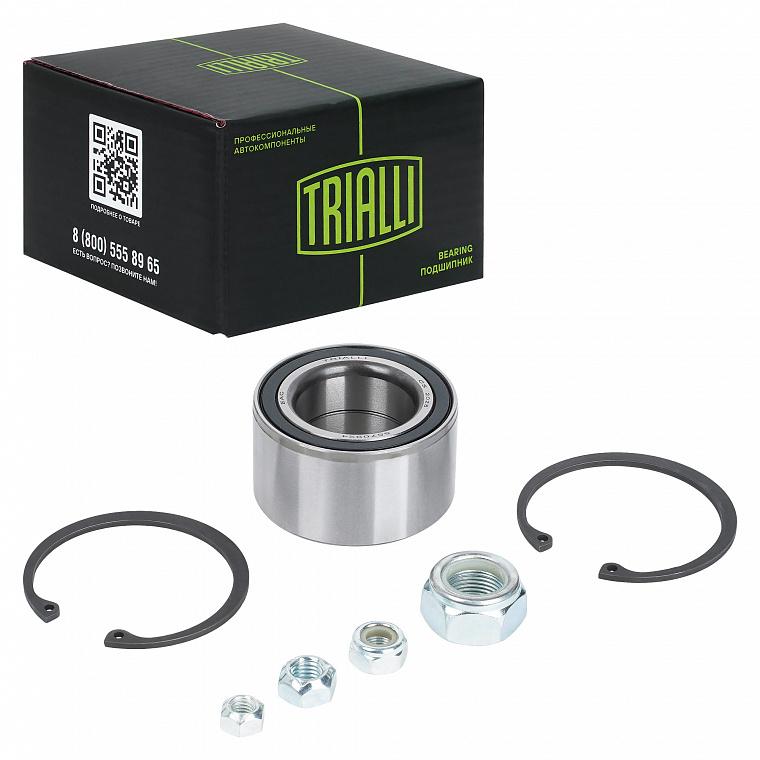

Комплектация
Подшипник
1 шт
Стопорное кольцо
1 шт
Гайка
4 шт
| Марка | Модель | Модификация | Код двигателя | Мощность, лс | Объём двигателя | Год выпуска |
|---|---|---|---|---|---|---|
| AUDI | 80 B1 Saloon (80, 82) | 1.3 | ZF / ZA | 60,55 | 1297 | 1972 - 1978 |
| AUDI | 80 B1 Saloon (80, 82) | 1.5 | ZC / YJ, ZB | 85,75 | 1471 | 1972 - 1976 |
| AUDI | 80 B1 Saloon (80, 82) | 1.6 | YG / FS / YN / YP | 83,72,75,85 | 1588 | 1975 - 1978 |
| AUDI | 80 B1 Saloon (80, 82) | 1.6 GT | XX | 100 | 1588 | 1973 - 1976 |
| AUDI | 80 B1 Saloon (80, 82) | 1.6 GTE | YS | 110 | 1588 | 1976 - 1978 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 1.3 | FY / FZ / EP | 55,60 | 1272,1297 | 1978 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 1.6 | YT, YY / WV, WY, YN / SA / YP / DT, JU | 70,75,73,85 | 1588,1595 | 1978 - 1987 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 1.6 D | CR, JK | 54 | 1588 | 1980 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 1.6 GLE | YZ | 110 | 1588 | 1978 - 1982 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 1.6 TD | CY | 70 | 1588 | 1981 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 1.8 | DS, JN, JV / JN / SF | 90,93,88 | 1781 | 1983 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 1.8 CC quattro (85Q) | JN, JV, NE / JN | 90,93 | 1781 | 1984 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 1.8 GTE | PV / DZ, MU | 110,112 | 1781 | 1984 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 1.8 GTE quattro (85Q) | DZ / PV | 112,110 | 1781 | 1984 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 1.9 CD-5S | WN | 115 | 1921 | 1981 - 1983 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 2.0 | HP, JS | 115 | 1994 | 1983 - 1984 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 2.0 quattro (85Q) | JS | 115 | 1994 | 1983 - 1984 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 2.2 quattro | KL / HY | 131,136 | 2144,2226 | 1982 - 1984 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 2.2 quattro (85Q) | KK | 136 | 2144 | 1982 - 1984 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | 1.4 | SE | 65 | 1400 | 1986 - 1988 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | 1.6 | RN / PP | 75,70 | 1595 | 1986 - 1991 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | 1.6 D | JK | 54 | 1588 | 1987 - 1989 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | 1.6 TD | RA, SB | 80 | 1588 | 1986 - 1991 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | 1.8 | RU / SD | 75,113 | 1781,1847 | 1986 - 1990 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | 1.8 E | DZ | 112 | 1781 | 1986 - 1991 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | 1.8 E quattro | DZ | 112 | 1781 | 1986 - 1991 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | 1.8 S | SF / JN, JV, NE, PM, SF | 88,90 | 1781 | 1986 - 1991 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | 1.8 S quattro | SF / JN, NE, PM, SF | 88,90 | 1781 | 1986 - 1991 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | 1.8 quattro | SD | 113 | 1847 | 1986 - н.в. |
| AUDI | 90 B2 (813, 814, 853) | 1.6 TD | CY | 70 | 1588 | 1985 - 1987 |
| AUDI | 90 B2 (813, 814, 853) | 2.0 | HP, JS / SK | 115,113 | 1994 | 1984 - 1987 |
| AUDI | 90 B2 (813, 814, 853) | 2.0 quattro | JS | 116 | 1994 | 1984 - 1986 |
| AUDI | 90 B2 (813, 814, 853) | 2.2 | HY, KV / KX | 136,115 | 2226 | 1984 - 1987 |
| AUDI | 90 B2 (813, 814, 853) | 2.2 E quattro | KV / JT | 136,120 | 2226 | 1984 - 1987 |
| AUDI | 90 B3 (893, 894, 8A2) | 1.6 TD | RA, SB | 80 | 1588 | 1987 - 1991 |
| AUDI | 90 B3 (893, 894, 8A2) | 2.2 E | KV | 136 | 2226 | 1987 - 1991 |
| AUDI | 90 B3 (893, 894, 8A2) | 2.3 E | NG | 133,136 | 2309 | 1987 - 1991 |
| AUDI | COUPE B2 (81, 855, 856) | 1.6 | YN | 75 | 1588 | 1980 - 1981 |
| AUDI | COUPE B2 (81, 855, 856) | 1.8 | DD | 75 | 1781 | 1981 - 1983 |
| AUDI | COUPE B2 (81, 855, 856) | 1.8 GT | DS, JN, JV / PV / JN / DZ / SF | 90,107,93,112,88 | 1781 | 1982 - 1988 |
| AUDI | COUPE B2 (81, 855, 856) | 1.8 GT quattro | DZ | 112 | 1781 | 1984 - 1988 |
| AUDI | COUPE B2 (81, 855, 856) | 1.9 | WN | 115 | 1921 | 1980 - 1983 |
| AUDI | COUPE B2 (81, 855, 856) | 2.0 | HP, JS / SK | 115,113 | 1994 | 1983 - 1988 |
| AUDI | COUPE B2 (81, 855, 856) | 2.1 GT | KE, KL | 131 | 2144 | 1982 - 1987 |
| AUDI | COUPE B2 (81, 855, 856) | 2.2 GT | KX / HY, KV | 115,136 | 2226 | 1981 - 1988 |
| AUDI | COUPE B2 (81, 855, 856) | 2.2 quattro | JT / KV | 120,136 | 2226 | 1984 - 1988 |
| AUDI | COUPE B2 (81, 855, 856) | 2.3 | NG | 133 | 2309 | 1986 - 1987 |
| AUDI | COUPE B2 (81, 855, 856) | 2.3 quattro | NG | 133 | 2309 | 1987 - н.в. |
| VW | GOLF II (19E, 1G1) | 1.8 GTI G60 Syncro | 1H, PG | 160 | 1781 | 1988 - 1991 |
| VW | GOLF II (19E, 1G1) | 1.8 Syncro | GU, GX / 1P | 90,98 | 1781 | 1986 - 1991 |
| VW | GOLF II (19E, 1G1) | 1.8 i Cat Syncro | GX, RP | 90 | 1781 | 1987 - 1991 |
| VW | GOLF III (1H1) | 1.8 Syncro (1HX1) | ABS, ADZ | 90 | 1781 | 1993 - 1997 |
| VW | GOLF III (1H1) | 1.9 TDI Syncro (1HX1) | 1Z, AHU, ALE | 90 | 1896 | 1995 - 1997 |
| VW | GOLF III (1H1) | 2.0 Syncro (1HX1) | AGG | 115 | 1984 | 1995 - 1997 |
| VW | GOLF III Variant (1H5) | 1.8 Syncro | ADZ | 90 | 1781 | 1994 - 1999 |
| VW | GOLF III Variant (1H5) | 1.9 TDI Syncro | 1Z, AHU, ALE | 90 | 1896 | 1995 - 1999 |
| VW | GOLF III Variant (1H5) | 2.0 Syncro | AGG | 115 | 1984 | 1995 - 1999 |
| VW | JETTA II (19E, 1G2, 165) | 1.8 Syncro | 1P / GU, GX, RP | 98,90 | 1781 | 1987 - 1991 |
| VW | PASSAT B1 (32) | 1.3 | FY / FZ / ZA / ZF | 55,60 | 1272,1297 | 1973 - 1980 |
| VW | PASSAT B1 (32) | 1.5 | ZC / YJ, ZB | 86,75 | 1471 | 1973 - 1975 |
| VW | PASSAT B1 (32) | 1.5 D | CK | 50 | 1471 | 1977 - 1980 |
| VW | PASSAT B1 (32) | 1.6 | YP / FS | 85,72 | 1588 | 1975 - 1980 |
| VW | PASSAT B1 (32) | 1.6 GLi | YS | 110 | 1588 | 1977 - 1980 |
| VW | PASSAT B1 Variant (33) | 1.3 | ZF / FY / ZA | 60,55 | 1297,1272 | 1973 - 1980 |
| VW | PASSAT B1 Variant (33) | 1.5 | YJ, ZB / ZC | 75,86 | 1471 | 1973 - 1975 |
| VW | PASSAT B1 Variant (33) | 1.5 D | CK | 50 | 1471 | 1977 - 1980 |
| VW | PASSAT B1 Variant (33) | 1.6 | YP / YN | 85,75 | 1588 | 1975 - 1980 |
| VW | PASSAT B1 Variant (33) | 1.6 D | CR | 54 | 1588 | 1980 - 1981 |
| VW | PASSAT B1 Variant (33) | 1.6 i | YS | 110 | 1588 | 1978 - 1980 |
| VW | PASSAT B2 (32B) | 1.3 | EP, EU / FY / FZ | 60,55 | 1297,1272 | 1980 - 1986 |
| VW | PASSAT B2 (32B) | 1.6 | YP / WV, WY, YN / DT / DTA, PP / RL | 85,75,70,72 | 1588,1595 | 1979 - 1988 |
| VW | PASSAT B2 (32B) | 1.6 D | CR, JK | 54 | 1588 | 1980 - 1988 |
| VW | PASSAT B2 (32B) | 1.6 TD | RA / CY | 80,70 | 1588 | 1982 - 1989 |
| VW | PASSAT B2 (32B) | 1.8 | DS, JN, JV / DZ / RM | 90,112,87 | 1781 | 1983 - 1988 |
| VW | PASSAT B2 (32B) | 1.9 | WN | 115 | 1921 | 1981 - 1983 |
| VW | PASSAT B2 (32B) | 2.0 | HP, JS | 115 | 1994 | 1983 - 1988 |
| VW | PASSAT B2 (32B) | 2.2 | KX / KV | 115,136 | 2226 | 1985 - 1988 |
| VW | PASSAT B2 Saloon (32B) | 1.6 | RL / DTA, PP / DT, JU | 72,70,75 | 1595 | 1984 - 1988 |
| VW | PASSAT B2 Saloon (32B) | 1.6 D | JK | 54 | 1588 | 1984 - 1988 |
| VW | PASSAT B2 Saloon (32B) | 1.6 TD | CY | 70 | 1588 | 1985 - 1988 |
| VW | PASSAT B2 Saloon (32B) | 1.8 | DS, JN / RM | 90,87 | 1781 | 1985 - 1988 |
| VW | PASSAT B2 Saloon (32B) | 2.2 | KX | 115 | 2226 | 1985 - 1988 |
| VW | PASSAT B2 Variant (33B) | 1.3 | FY / EP, EU / FZ | 55,60 | 1272,1297 | 1980 - 1986 |
| VW | PASSAT B2 Variant (33B) | 1.6 | YP / WV, WY, YN / RL / DTA, PP / DT, JU | 85,75,72,70 | 1588,1595 | 1980 - 1988 |
| VW | PASSAT B2 Variant (33B) | 1.6 D | CR, JK | 54 | 1588 | 1980 - 1988 |
| VW | PASSAT B2 Variant (33B) | 1.6 TD | CY | 70 | 1588 | 1982 - 1988 |
| VW | PASSAT B2 Variant (33B) | 1.8 | DS, JN, JV / DZ / RM | 90,112,87 | 1781 | 1983 - 1988 |
| VW | PASSAT B2 Variant (33B) | 1.8 Syncro | DS, JN | 90 | 1781 | 1986 - 1988 |
| VW | PASSAT B2 Variant (33B) | 1.9 | WN | 115 | 1921 | 1981 - 1983 |
| VW | PASSAT B2 Variant (33B) | 2.0 | HP, JS | 115 | 1994 | 1983 - 1988 |
| VW | PASSAT B2 Variant (33B) | 2.0 Syncro | HP, JS | 116 | 1994 | 1984 - 1988 |
| VW | PASSAT B2 Variant (33B) | 2.2 | KV / KX | 136,115 | 2226 | 1985 - 1988 |
| VW | PASSAT B2 Variant (33B) | 2.2 Syncro | JT, KX | 120 | 2226 | 1985 - 1988 |
| VW | PASSAT B3/B4 (3A2, 35I) | 1.8 G60 Syncro | PG | 160 | 1781 | 1988 - 1996 |
| VW | PASSAT B3/B4 (3A2, 35I) | 2.0 Syncro | 2E, ADY, AGG | 115 | 1984 | 1990 - 1996 |
| VW | PASSAT B3/B4 Variant (3A5, 35I) | 1.8 G60 Syncro | PG | 160 | 1781 | 1988 - 1997 |
| VW | PASSAT B3/B4 Variant (3A5, 35I) | 2.0 Syncro | 2E, ADY, AGG | 115 | 1984 | 1990 - 1996 |
| VW | SANTANA (32B) | 1.3 | FZ | 60 | 1272 | 1981 - 1983 |
| VW | SANTANA (32B) | 1.6 | WV / DT / YP | 75,85 | 1588,1595 | 1981 - 1984 |
| VW | SANTANA (32B) | 1.6 D | CR, JK | 54 | 1588 | 1981 - 1984 |
| VW | SANTANA (32B) | 1.6 TD | CY | 70 | 1588 | 1981 - 1984 |
| VW | SANTANA (32B) | 1.8 | DS | 90 | 1781 | 1983 - 1984 |
| VW | SANTANA (32B) | 1.9 | WN | 115 | 1921 | 1981 - 1983 |
| VW | SANTANA (32B) | 2.0 | HP, JS | 115 | 1994 | 1983 - 1984 |
321 498 625 B
321 498 625 C
321 498 625 D
321 498 625 E
331598625
S11-3001015
811 407 625 D
811 407 625 F
823 407 625 B
330498625
330 498 625 B
Характеристики
| Особенности конструкции: | Шариковый двухрядный |
| Ось (сторона установки): | Передняя |
| Внутренний диаметр, мм: | 39 |
| Наружный диаметр, мм: | 68 |
| Ширина подшипника (B), мм: | 37 |
| Товарная линейка: | BLACK |
| Количество на автомобиль: | 2 |
Комплектация
Подшипник
1 шт
Стопорное кольцо
1 шт
Гайка
4 шт
ОЕМ номера
321 498 625 B
321 498 625 C
321 498 625 D
321 498 625 E
331598625
S11-3001015
811 407 625 D
811 407 625 F
823 407 625 B
330498625
330 498 625 B
Применяемость
Информация по применяемости изделий к конкретной модели автомобиля является справочной
| Марка | Модель | Двигатель | Мощность, лс | Объём двигателя | Год |
|---|---|---|---|---|---|
| AUDI | 80 B1 Saloon (80, 82) | ZF / ZA | 60,55 | 1297 | 1972 - 1978 |
| AUDI | 80 B1 Saloon (80, 82) | ZC / YJ, ZB | 85,75 | 1471 | 1972 - 1976 |
| AUDI | 80 B1 Saloon (80, 82) | YG / FS / YN / YP | 83,72,75,85 | 1588 | 1975 - 1978 |
| AUDI | 80 B1 Saloon (80, 82) | XX | 100 | 1588 | 1973 - 1976 |
| AUDI | 80 B1 Saloon (80, 82) | YS | 110 | 1588 | 1976 - 1978 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | FY / FZ / EP | 55,60 | 1272,1297 | 1978 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | YT, YY / WV, WY, YN / SA / YP / DT, JU | 70,75,73,85 | 1588,1595 | 1978 - 1987 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | CR, JK | 54 | 1588 | 1980 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | YZ | 110 | 1588 | 1978 - 1982 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | CY | 70 | 1588 | 1981 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | DS, JN, JV / JN / SF | 90,93,88 | 1781 | 1983 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | JN, JV, NE / JN | 90,93 | 1781 | 1984 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | PV / DZ, MU | 110,112 | 1781 | 1984 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | DZ / PV | 112,110 | 1781 | 1984 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | WN | 115 | 1921 | 1981 - 1983 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | HP, JS | 115 | 1994 | 1983 - 1984 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | JS | 115 | 1994 | 1983 - 1984 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | KL / HY | 131,136 | 2144,2226 | 1982 - 1984 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | KK | 136 | 2144 | 1982 - 1984 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | SE | 65 | 1400 | 1986 - 1988 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | RN / PP | 75,70 | 1595 | 1986 - 1991 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | JK | 54 | 1588 | 1987 - 1989 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | RA, SB | 80 | 1588 | 1986 - 1991 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | RU / SD | 75,113 | 1781,1847 | 1986 - 1990 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | DZ | 112 | 1781 | 1986 - 1991 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | DZ | 112 | 1781 | 1986 - 1991 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | SF / JN, JV, NE, PM, SF | 88,90 | 1781 | 1986 - 1991 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | SF / JN, NE, PM, SF | 88,90 | 1781 | 1986 - 1991 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | SD | 113 | 1847 | 1986 - н.в. |
| AUDI | 90 B2 (813, 814, 853) | CY | 70 | 1588 | 1985 - 1987 |
| AUDI | 90 B2 (813, 814, 853) | HP, JS / SK | 115,113 | 1994 | 1984 - 1987 |
| AUDI | 90 B2 (813, 814, 853) | JS | 116 | 1994 | 1984 - 1986 |
| AUDI | 90 B2 (813, 814, 853) | HY, KV / KX | 136,115 | 2226 | 1984 - 1987 |
| AUDI | 90 B2 (813, 814, 853) | KV / JT | 136,120 | 2226 | 1984 - 1987 |
| AUDI | 90 B3 (893, 894, 8A2) | RA, SB | 80 | 1588 | 1987 - 1991 |
| AUDI | 90 B3 (893, 894, 8A2) | KV | 136 | 2226 | 1987 - 1991 |
| AUDI | 90 B3 (893, 894, 8A2) | NG | 133,136 | 2309 | 1987 - 1991 |
| AUDI | COUPE B2 (81, 855, 856) | YN | 75 | 1588 | 1980 - 1981 |
| AUDI | COUPE B2 (81, 855, 856) | DD | 75 | 1781 | 1981 - 1983 |
| AUDI | COUPE B2 (81, 855, 856) | DS, JN, JV / PV / JN / DZ / SF | 90,107,93,112,88 | 1781 | 1982 - 1988 |
| AUDI | COUPE B2 (81, 855, 856) | DZ | 112 | 1781 | 1984 - 1988 |
| AUDI | COUPE B2 (81, 855, 856) | WN | 115 | 1921 | 1980 - 1983 |
| AUDI | COUPE B2 (81, 855, 856) | HP, JS / SK | 115,113 | 1994 | 1983 - 1988 |
| AUDI | COUPE B2 (81, 855, 856) | KE, KL | 131 | 2144 | 1982 - 1987 |
| AUDI | COUPE B2 (81, 855, 856) | KX / HY, KV | 115,136 | 2226 | 1981 - 1988 |
| AUDI | COUPE B2 (81, 855, 856) | JT / KV | 120,136 | 2226 | 1984 - 1988 |
| AUDI | COUPE B2 (81, 855, 856) | NG | 133 | 2309 | 1986 - 1987 |
| AUDI | COUPE B2 (81, 855, 856) | NG | 133 | 2309 | 1987 - н.в. |
| VW | GOLF II (19E, 1G1) | 1H, PG | 160 | 1781 | 1988 - 1991 |
| VW | GOLF II (19E, 1G1) | GU, GX / 1P | 90,98 | 1781 | 1986 - 1991 |
| VW | GOLF II (19E, 1G1) | GX, RP | 90 | 1781 | 1987 - 1991 |
| VW | GOLF III (1H1) | ABS, ADZ | 90 | 1781 | 1993 - 1997 |
| VW | GOLF III (1H1) | 1Z, AHU, ALE | 90 | 1896 | 1995 - 1997 |
| VW | GOLF III (1H1) | AGG | 115 | 1984 | 1995 - 1997 |
| VW | GOLF III Variant (1H5) | ADZ | 90 | 1781 | 1994 - 1999 |
| VW | GOLF III Variant (1H5) | 1Z, AHU, ALE | 90 | 1896 | 1995 - 1999 |
| VW | GOLF III Variant (1H5) | AGG | 115 | 1984 | 1995 - 1999 |
| VW | JETTA II (19E, 1G2, 165) | 1P / GU, GX, RP | 98,90 | 1781 | 1987 - 1991 |
| VW | PASSAT B1 (32) | FY / FZ / ZA / ZF | 55,60 | 1272,1297 | 1973 - 1980 |
| VW | PASSAT B1 (32) | ZC / YJ, ZB | 86,75 | 1471 | 1973 - 1975 |
| VW | PASSAT B1 (32) | CK | 50 | 1471 | 1977 - 1980 |
| VW | PASSAT B1 (32) | YP / FS | 85,72 | 1588 | 1975 - 1980 |
| VW | PASSAT B1 (32) | YS | 110 | 1588 | 1977 - 1980 |
| VW | PASSAT B1 Variant (33) | ZF / FY / ZA | 60,55 | 1297,1272 | 1973 - 1980 |
| VW | PASSAT B1 Variant (33) | YJ, ZB / ZC | 75,86 | 1471 | 1973 - 1975 |
| VW | PASSAT B1 Variant (33) | CK | 50 | 1471 | 1977 - 1980 |
| VW | PASSAT B1 Variant (33) | YP / YN | 85,75 | 1588 | 1975 - 1980 |
| VW | PASSAT B1 Variant (33) | CR | 54 | 1588 | 1980 - 1981 |
| VW | PASSAT B1 Variant (33) | YS | 110 | 1588 | 1978 - 1980 |
| VW | PASSAT B2 (32B) | EP, EU / FY / FZ | 60,55 | 1297,1272 | 1980 - 1986 |
| VW | PASSAT B2 (32B) | YP / WV, WY, YN / DT / DTA, PP / RL | 85,75,70,72 | 1588,1595 | 1979 - 1988 |
| VW | PASSAT B2 (32B) | CR, JK | 54 | 1588 | 1980 - 1988 |
| VW | PASSAT B2 (32B) | RA / CY | 80,70 | 1588 | 1982 - 1989 |
| VW | PASSAT B2 (32B) | DS, JN, JV / DZ / RM | 90,112,87 | 1781 | 1983 - 1988 |
| VW | PASSAT B2 (32B) | WN | 115 | 1921 | 1981 - 1983 |
| VW | PASSAT B2 (32B) | HP, JS | 115 | 1994 | 1983 - 1988 |
| VW | PASSAT B2 (32B) | KX / KV | 115,136 | 2226 | 1985 - 1988 |
| VW | PASSAT B2 Saloon (32B) | RL / DTA, PP / DT, JU | 72,70,75 | 1595 | 1984 - 1988 |
| VW | PASSAT B2 Saloon (32B) | JK | 54 | 1588 | 1984 - 1988 |
| VW | PASSAT B2 Saloon (32B) | CY | 70 | 1588 | 1985 - 1988 |
| VW | PASSAT B2 Saloon (32B) | DS, JN / RM | 90,87 | 1781 | 1985 - 1988 |
| VW | PASSAT B2 Saloon (32B) | KX | 115 | 2226 | 1985 - 1988 |
| VW | PASSAT B2 Variant (33B) | FY / EP, EU / FZ | 55,60 | 1272,1297 | 1980 - 1986 |
| VW | PASSAT B2 Variant (33B) | YP / WV, WY, YN / RL / DTA, PP / DT, JU | 85,75,72,70 | 1588,1595 | 1980 - 1988 |
| VW | PASSAT B2 Variant (33B) | CR, JK | 54 | 1588 | 1980 - 1988 |
| VW | PASSAT B2 Variant (33B) | CY | 70 | 1588 | 1982 - 1988 |
| VW | PASSAT B2 Variant (33B) | DS, JN, JV / DZ / RM | 90,112,87 | 1781 | 1983 - 1988 |
| VW | PASSAT B2 Variant (33B) | DS, JN | 90 | 1781 | 1986 - 1988 |
| VW | PASSAT B2 Variant (33B) | WN | 115 | 1921 | 1981 - 1983 |
| VW | PASSAT B2 Variant (33B) | HP, JS | 115 | 1994 | 1983 - 1988 |
| VW | PASSAT B2 Variant (33B) | HP, JS | 116 | 1994 | 1984 - 1988 |
| VW | PASSAT B2 Variant (33B) | KV / KX | 136,115 | 2226 | 1985 - 1988 |
| VW | PASSAT B2 Variant (33B) | JT, KX | 120 | 2226 | 1985 - 1988 |
| VW | PASSAT B3/B4 (3A2, 35I) | PG | 160 | 1781 | 1988 - 1996 |
| VW | PASSAT B3/B4 (3A2, 35I) | 2E, ADY, AGG | 115 | 1984 | 1990 - 1996 |
| VW | PASSAT B3/B4 Variant (3A5, 35I) | PG | 160 | 1781 | 1988 - 1997 |
| VW | PASSAT B3/B4 Variant (3A5, 35I) | 2E, ADY, AGG | 115 | 1984 | 1990 - 1996 |
| VW | SANTANA (32B) | FZ | 60 | 1272 | 1981 - 1983 |
| VW | SANTANA (32B) | WV / DT / YP | 75,85 | 1588,1595 | 1981 - 1984 |
| VW | SANTANA (32B) | CR, JK | 54 | 1588 | 1981 - 1984 |
| VW | SANTANA (32B) | CY | 70 | 1588 | 1981 - 1984 |
| VW | SANTANA (32B) | DS | 90 | 1781 | 1983 - 1984 |
| VW | SANTANA (32B) | WN | 115 | 1921 | 1981 - 1983 |
| VW | SANTANA (32B) | HP, JS | 115 | 1994 | 1983 - 1984 |
×
