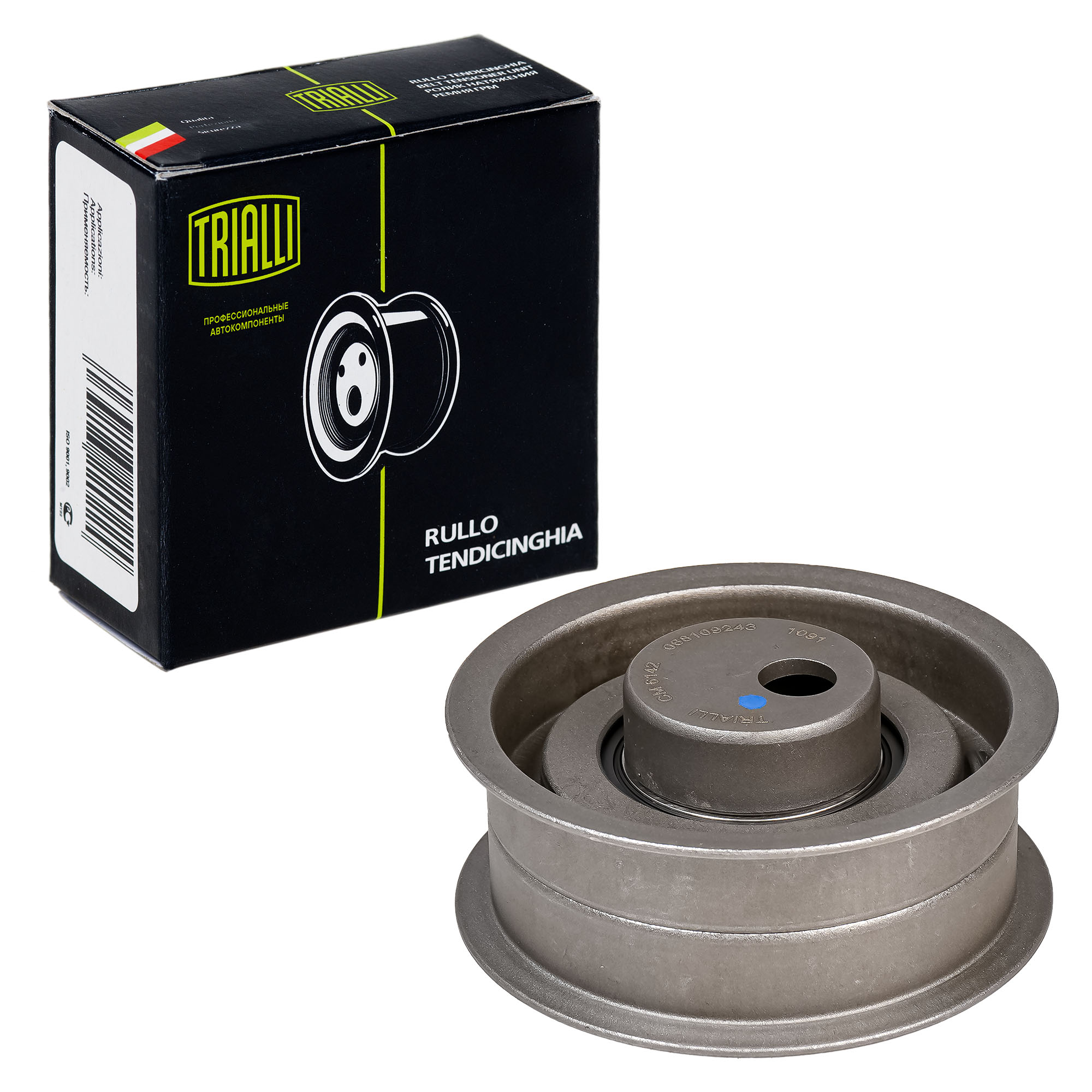

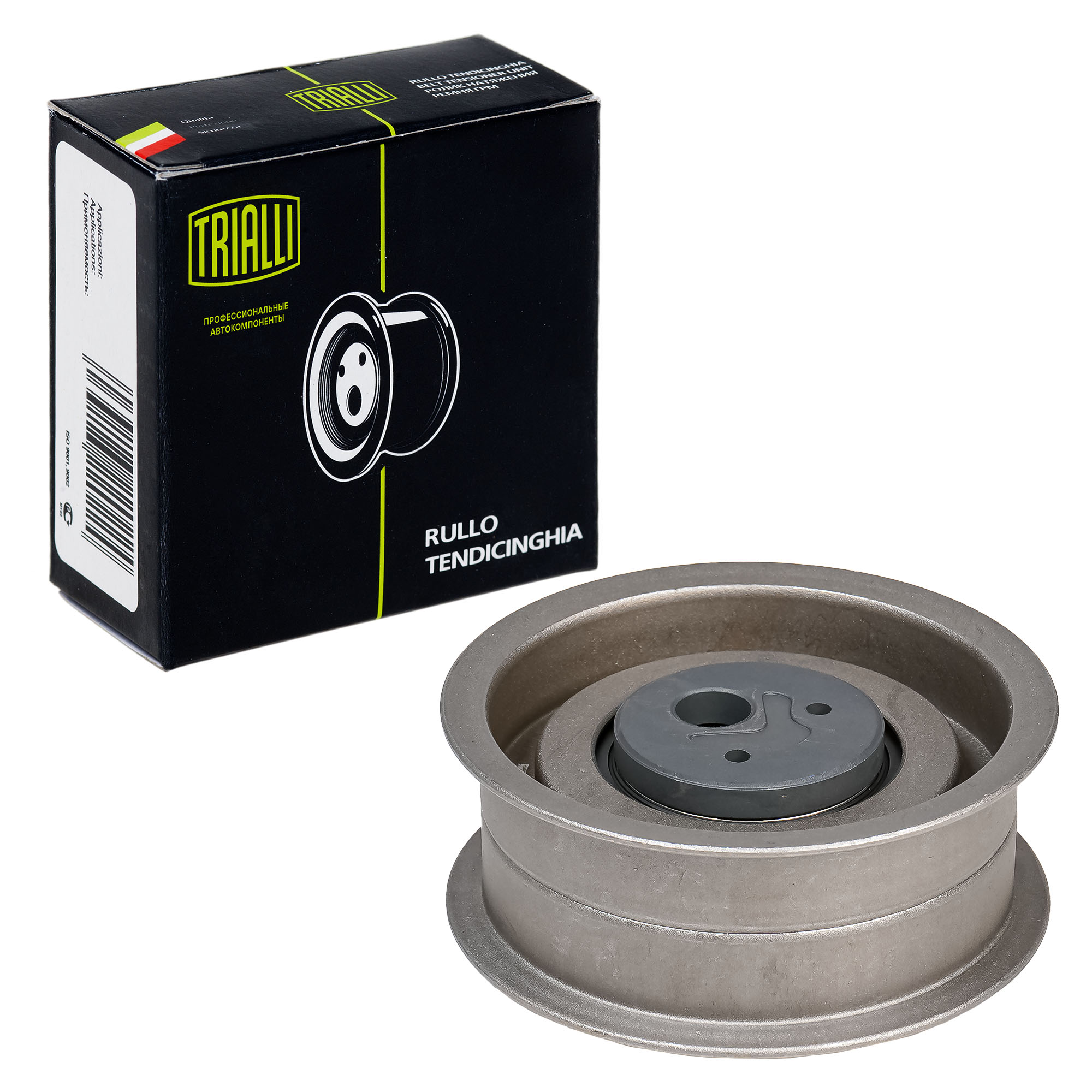

Ролик ГРМ натяжной для автомобилей VW Transporter T3 (79-) 1.6d/1.7d/1.9d
Характеристики

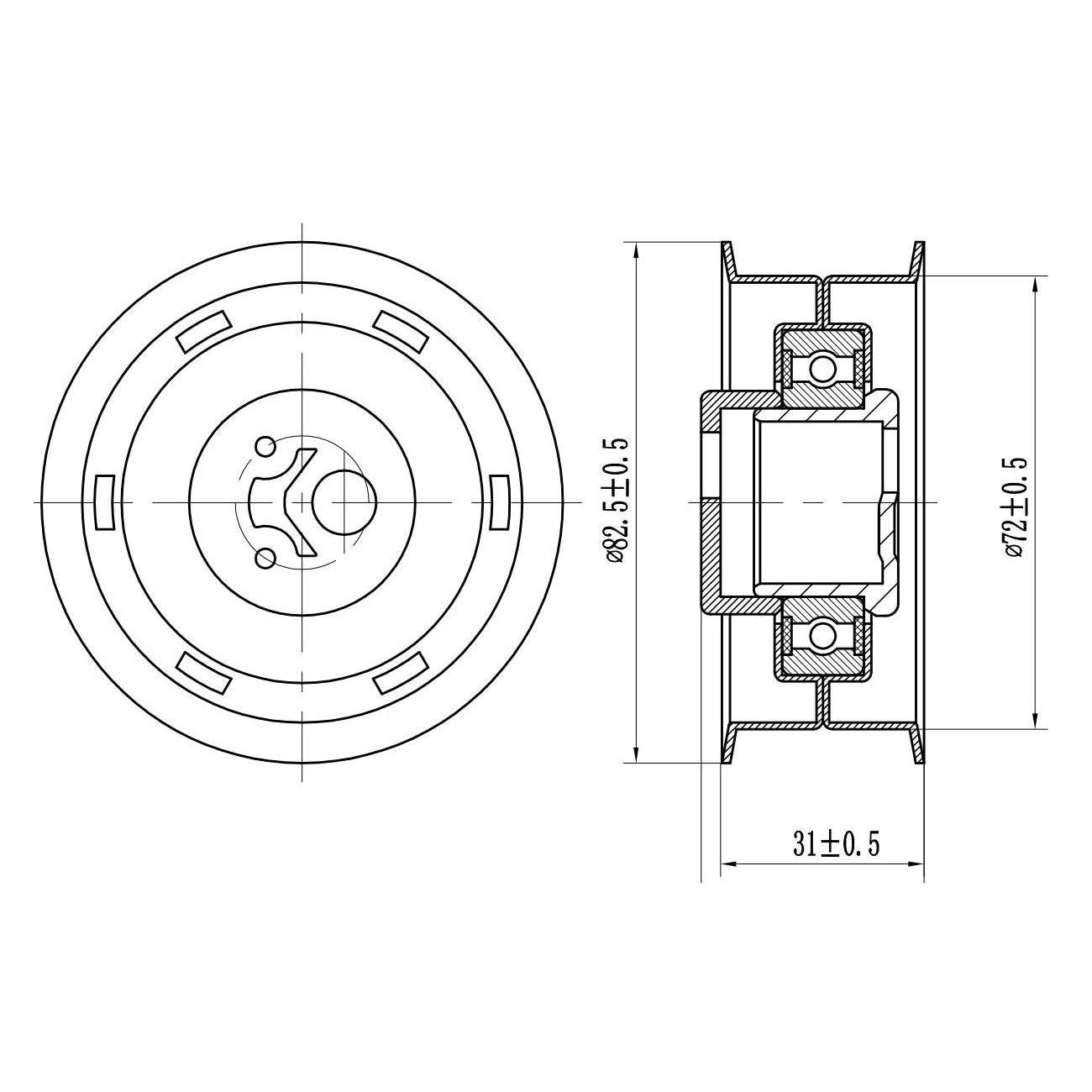

| Материал: | Комбинированный |
| Ширина, мм: | 34,5 |
| Внешний диаметр, мм: | 82,5 |
| Внутренний диаметр, мм: | 10,2 |
| Тип ролика: | Натяжной/обводной |
ОЕМ-номер
068 109 243
068 109 243 C
068 109 243 F
068 109 243 B
Основные характеристики
Материал
Комбинированный
Ширина, мм
34,5
Внешний диаметр, мм
82,5
Внутренний диаметр, мм
10,2
Тип ролика
Натяжной/обводной
Гарантийный срок
2 года / 60 000 км
Товарная линейка
BLACK
Количество на автомобиль
1
Комплектация
Ролик ГРМ
1 шт
| Марка | Модель | Модификация | Код двигателя | Мощность, лс | Объём двигателя | Год выпуска |
|---|---|---|---|---|---|---|
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 1.6 D | CR (08.80-07.82), JK (08.82-08.86) | 54 | 1588 | 1980 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | 1.6 TD | CY | 70 | 1588 | 1981 - 1986 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | 1.6 D | JK | 54 | 1588 | 1987 - 1989 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | 1.6 TD | RA (09.86-07.89), SB (08.89-08.91) | 80 | 1588 | 1986 - 1991 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | 1.9 D | 1Y (08.89-08.91) | 68 | 1896 | 1989 - 1991 |
| AUDI | 80 B4 Avant (8C5) | 1.9 TD | AAZ | 75 | 1896 | 1991 - 1994 |
| AUDI | 80 B4 Saloon (8C2) | 1.9 TD | AAZ (09.91-12.94) | 75 | 1896 | 1991 - 1994 |
| AUDI | 90 B2 (813, 814, 853) | 1.6 TD | CY | 70 | 1588 | 1985 - 1987 |
| AUDI | 90 B3 (893, 894, 8A2) | 1.6 TD | RA (.-06.89), SB (06.89-.) | 80 | 1588 | 1987 - 1991 |
| SEAT | CORDOBA (6K1, 6K2) | 1.9 D | 1Y | 68 | 1896 | 1993 - 1996 |
| SEAT | CORDOBA (6K1, 6K2) | 1.9 TD | AAZ | 75 | 1896 | 1993 - 1996 |
| SEAT | IBIZA II (6K1) | 1.9 D | 1Y | 64 | 1896 | 1993 - 1999 |
| SEAT | IBIZA II (6K1) | 1.9 TD | AAZ | 75 | 1896 | 1993 - 1996 |
| SEAT | TOLEDO I (1L2) | 1.9 D | 1Y | 68 | 1896 | 1991 - 1999 |
| SEAT | TOLEDO I (1L2) | 1.9 TD | AAZ | 75 | 1896 | 1991 - 1999 |
| VW | CADDY I (14) | 1.6 D | CR, JK, ME | 55 | 1588 | 1982 - 1992 |
| VW | GOLF I (17) | 1.5 D | CK | 50 | 1471 | 1976 - 1980 |
| VW | GOLF I (17) | 1.6 D | CR (08.80-07.82), JK (08.82-07.83) | 54 | 1588 | 1980 - 1983 |
| VW | GOLF I (17) | 1.6 TD | CY | 70 | 1588 | 1982 - 1983 |
| VW | GOLF II (19E, 1G1) | 1.6 D | ME / JP, ME (05.88-10.91) | 50,54 | 1588 | 1983 - 1991 |
| VW | GOLF II (19E, 1G1) | 1.6 TD | 1V (08.89-10.91) / RA, SB / JR, MF (05.88-10.91) | 60,80,70 | 1588 | 1983 - 1991 |
| VW | GOLF III (1H1) | 1.9 D | 1Y | 64 | 1896 | 1991 - 1997 |
| VW | GOLF III (1H1) | 1.9 TD, GTD | AAZ | 75 | 1896 | 1991 - 1997 |
| VW | GOLF III Variant (1H5) | 1.9 D | 1Y | 64 | 1896 | 1993 - 1999 |
| VW | GOLF III Variant (1H5) | 1.9 TD | AAZ | 75 | 1896 | 1993 - 1999 |
| VW | ILTIS (183) | 1.6 TD | 1C | 69 | 1588 | 1987 - 1988 |
| VW | JETTA I (16) | 1.5 D | CK | 50 | 1471 | 1978 - 1980 |
| VW | JETTA I (16) | 1.6 D | CR (08.80-02.84), JK (08.82-02.84) | 54 | 1588 | 1980 - 1984 |
| VW | JETTA I (16) | 1.6 TD | CY | 70 | 1588 | 1982 - 1984 |
| VW | JETTA II (19E, 1G2, 165) | 1.6 D | JP, ME (05.88-10.91) | 54 | 1588 | 1984 - 1991 |
| VW | JETTA II (19E, 1G2, 165) | 1.6 TD | RA, SB / JR, MF (05.88-.) / 1V (01.90-10.91) | 80,70,60 | 1588 | 1984 - 1991 |
| VW | PASSAT B1 (32) | 1.5 D | CK | 50 | 1471 | 1977 - 1980 |
| VW | PASSAT B1 Variant (33) | 1.5 D | CK | 50 | 1471 | 1977 - 1980 |
| VW | PASSAT B1 Variant (33) | 1.6 D | CR | 54 | 1588 | 1980 - 1981 |
| VW | PASSAT B2 (32B) | 1.6 D | CR (08.80-07.82), JK (08.82-03.88) | 54 | 1588 | 1980 - 1988 |
| VW | PASSAT B2 (32B) | 1.6 TD | RA / CY | 80,70 | 1588 | 1982 - 1989 |
| VW | PASSAT B2 Saloon (32B) | 1.6 D | JK | 54 | 1588 | 1984 - 1988 |
| VW | PASSAT B2 Saloon (32B) | 1.6 TD | CY | 70 | 1588 | 1985 - 1988 |
| VW | PASSAT B2 Variant (33B) | 1.6 D | CR (08.80-07.82), JK (08.82-03.88) | 54 | 1588 | 1980 - 1988 |
| VW | PASSAT B2 Variant (33B) | 1.6 TD | CY | 70 | 1588 | 1982 - 1988 |
| VW | PASSAT B3/B4 (3A2, 35I) | 1.6 TD | RA (08.88-07.89), SB (08.89-09.93) | 80 | 1588 | 1988 - 1993 |
| VW | PASSAT B3/B4 (3A2, 35I) | 1.9 D | 1Y | 68 | 1896 | 1989 - 1993 |
| VW | PASSAT B3/B4 (3A2, 35I) | 1.9 TD | AAZ | 75 | 1896 | 1991 - 1996 |
| VW | PASSAT B3/B4 Variant (3A5, 35I) | 1.6 TD | RA (08.88-07.89), SB (08.89-10.93) | 80 | 1588 | 1988 - 1993 |
| VW | PASSAT B3/B4 Variant (3A5, 35I) | 1.9 D | 1Y | 68 | 1896 | 1989 - 1993 |
| VW | PASSAT B3/B4 Variant (3A5, 35I) | 1.9 TD | AAZ | 75 | 1896 | 1991 - 1997 |
| VW | SANTANA (32B) | 1.6 D | CR (08.81-07.82), JK (08.82-12.84) | 54 | 1588 | 1981 - 1984 |
| VW | SANTANA (32B) | 1.6 TD | CY | 70 | 1588 | 1981 - 1984 |
| VW | TRANSPORTER III Platform/Chassis | 1.6 TD | JX | 69 | 1588 | 1985 - 1987 |
| VW | TRANSPORTER IV Bus (70XB, 70XC, 7DB, 7DW, 7DK) | TRANSPORTER / CARAVELLE | 1.9 D | 1X | 61 | 1896 | 1990 - 1995 |
| VW | TRANSPORTER T3 Bus (25_) | 1.6 D | CS | 50 | 1588 | 1981 - 1987 |
| VW | TRANSPORTER T3 Bus (25_) | 1.6 TD | JX | 70 | 1588 | 1984 - 1992 |
| VW | TRANSPORTER T3 Bus (25_) | 1.6 TD Syncro | JX | 70 | 1588 | 1986 - 1992 |
| VW | TRANSPORTER T3 Bus (25_) | 1.7 D | KY | 57 | 1716 | 1986 - 1992 |
| VW | TRANSPORTER T3 Platform/Chassis (24_) | 1.6 D | CS | 50 | 1588 | 1981 - 1987 |
| VW | TRANSPORTER T3 Platform/Chassis (24_) | 1.6 TD | JX | 70 | 1588 | 1984 - 1992 |
| VW | TRANSPORTER T3 Platform/Chassis (24_) | 1.6 TD Syncro | JX | 69 | 1588 | 1986 - 1992 |
| VW | TRANSPORTER T3 Platform/Chassis (24_) | 1.7 D | KY | 57 | 1715 | 1985 - 1992 |
| VW | TRANSPORTER T3 Van (24_, 25_) | 1.6 D | CS | 50 | 1588 | 1981 - 1987 |
| VW | TRANSPORTER T3 Van (24_, 25_) | 1.6 TD | JX | 69 | 1588 | 1984 - 1992 |
| VW | TRANSPORTER T3 Van (24_, 25_) | 1.6 TD Syncro | JX | 69 | 1588 | 1986 - 1992 |
| VW | TRANSPORTER T3 Van (24_, 25_) | 1.7 D | KY | 57 | 1715 | 1984 - 1992 |
| VW | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | 1.9 D | 1X | 60 | 1896 | 1990 - 1995 |
| VW | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | 1.9 TD | ABL | 68 | 1896 | 1992 - 2003 |
| VW | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | 1.9 D | 1X | 61,60 | 1896 | 1990 - 1995 |
| VW | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | 1.9 TD | ABL | 68 | 1896 | 1992 - 2003 |
| VW | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) | 1.9 D | 1X | 60,61 | 1896 | 1990 - 1995 |
| VW | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) | 1.9 TD | ABL | 68 | 1896 | 1992 - 2003 |
| VW | VENTO (1H2) | 1.9 D | 1Y | 65 | 1896 | 1991 - 1998 |
| VW | VENTO (1H2) | 1.9 TD | AAZ | 75 | 1896 | 1991 - 1998 |
Характеристики
| Материал: | Комбинированный |
| Ширина, мм: | 34,5 |
| Внешний диаметр, мм: | 82,5 |
| Внутренний диаметр, мм: | 10,2 |
| Тип ролика: | Натяжной/обводной |
| Гарантийный срок: | 2 года / 60 000 км |
| Товарная линейка: | BLACK |
| Количество на автомобиль: | 1 |
Комплектация
Ролик ГРМ
1 шт
ОЕМ номера
068 109 243
068 109 243 C
068 109 243 F
068 109 243 B
Применяемость
Информация по применяемости изделий к конкретной модели автомобиля является справочной
| Марка | Модель | Двигатель | Мощность, лс | Объём двигателя | Год |
|---|---|---|---|---|---|
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | CR (08.80-07.82), JK (08.82-08.86) | 54 | 1588 | 1980 - 1986 |
| AUDI | 80 B2 Saloon (811, 813, 814, 819, 853) | CY | 70 | 1588 | 1981 - 1986 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | JK | 54 | 1588 | 1987 - 1989 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | RA (09.86-07.89), SB (08.89-08.91) | 80 | 1588 | 1986 - 1991 |
| AUDI | 80 B3 Saloon (893, 894, 8A2) | 1Y (08.89-08.91) | 68 | 1896 | 1989 - 1991 |
| AUDI | 80 B4 Avant (8C5) | AAZ | 75 | 1896 | 1991 - 1994 |
| AUDI | 80 B4 Saloon (8C2) | AAZ (09.91-12.94) | 75 | 1896 | 1991 - 1994 |
| AUDI | 90 B2 (813, 814, 853) | CY | 70 | 1588 | 1985 - 1987 |
| AUDI | 90 B3 (893, 894, 8A2) | RA (.-06.89), SB (06.89-.) | 80 | 1588 | 1987 - 1991 |
| SEAT | CORDOBA (6K1, 6K2) | 1Y | 68 | 1896 | 1993 - 1996 |
| SEAT | CORDOBA (6K1, 6K2) | AAZ | 75 | 1896 | 1993 - 1996 |
| SEAT | IBIZA II (6K1) | 1Y | 64 | 1896 | 1993 - 1999 |
| SEAT | IBIZA II (6K1) | AAZ | 75 | 1896 | 1993 - 1996 |
| SEAT | TOLEDO I (1L2) | 1Y | 68 | 1896 | 1991 - 1999 |
| SEAT | TOLEDO I (1L2) | AAZ | 75 | 1896 | 1991 - 1999 |
| VW | CADDY I (14) | CR, JK, ME | 55 | 1588 | 1982 - 1992 |
| VW | GOLF I (17) | CK | 50 | 1471 | 1976 - 1980 |
| VW | GOLF I (17) | CR (08.80-07.82), JK (08.82-07.83) | 54 | 1588 | 1980 - 1983 |
| VW | GOLF I (17) | CY | 70 | 1588 | 1982 - 1983 |
| VW | GOLF II (19E, 1G1) | ME / JP, ME (05.88-10.91) | 50,54 | 1588 | 1983 - 1991 |
| VW | GOLF II (19E, 1G1) | 1V (08.89-10.91) / RA, SB / JR, MF (05.88-10.91) | 60,80,70 | 1588 | 1983 - 1991 |
| VW | GOLF III (1H1) | 1Y | 64 | 1896 | 1991 - 1997 |
| VW | GOLF III (1H1) | AAZ | 75 | 1896 | 1991 - 1997 |
| VW | GOLF III Variant (1H5) | 1Y | 64 | 1896 | 1993 - 1999 |
| VW | GOLF III Variant (1H5) | AAZ | 75 | 1896 | 1993 - 1999 |
| VW | ILTIS (183) | 1C | 69 | 1588 | 1987 - 1988 |
| VW | JETTA I (16) | CK | 50 | 1471 | 1978 - 1980 |
| VW | JETTA I (16) | CR (08.80-02.84), JK (08.82-02.84) | 54 | 1588 | 1980 - 1984 |
| VW | JETTA I (16) | CY | 70 | 1588 | 1982 - 1984 |
| VW | JETTA II (19E, 1G2, 165) | JP, ME (05.88-10.91) | 54 | 1588 | 1984 - 1991 |
| VW | JETTA II (19E, 1G2, 165) | RA, SB / JR, MF (05.88-.) / 1V (01.90-10.91) | 80,70,60 | 1588 | 1984 - 1991 |
| VW | PASSAT B1 (32) | CK | 50 | 1471 | 1977 - 1980 |
| VW | PASSAT B1 Variant (33) | CK | 50 | 1471 | 1977 - 1980 |
| VW | PASSAT B1 Variant (33) | CR | 54 | 1588 | 1980 - 1981 |
| VW | PASSAT B2 (32B) | CR (08.80-07.82), JK (08.82-03.88) | 54 | 1588 | 1980 - 1988 |
| VW | PASSAT B2 (32B) | RA / CY | 80,70 | 1588 | 1982 - 1989 |
| VW | PASSAT B2 Saloon (32B) | JK | 54 | 1588 | 1984 - 1988 |
| VW | PASSAT B2 Saloon (32B) | CY | 70 | 1588 | 1985 - 1988 |
| VW | PASSAT B2 Variant (33B) | CR (08.80-07.82), JK (08.82-03.88) | 54 | 1588 | 1980 - 1988 |
| VW | PASSAT B2 Variant (33B) | CY | 70 | 1588 | 1982 - 1988 |
| VW | PASSAT B3/B4 (3A2, 35I) | RA (08.88-07.89), SB (08.89-09.93) | 80 | 1588 | 1988 - 1993 |
| VW | PASSAT B3/B4 (3A2, 35I) | 1Y | 68 | 1896 | 1989 - 1993 |
| VW | PASSAT B3/B4 (3A2, 35I) | AAZ | 75 | 1896 | 1991 - 1996 |
| VW | PASSAT B3/B4 Variant (3A5, 35I) | RA (08.88-07.89), SB (08.89-10.93) | 80 | 1588 | 1988 - 1993 |
| VW | PASSAT B3/B4 Variant (3A5, 35I) | 1Y | 68 | 1896 | 1989 - 1993 |
| VW | PASSAT B3/B4 Variant (3A5, 35I) | AAZ | 75 | 1896 | 1991 - 1997 |
| VW | SANTANA (32B) | CR (08.81-07.82), JK (08.82-12.84) | 54 | 1588 | 1981 - 1984 |
| VW | SANTANA (32B) | CY | 70 | 1588 | 1981 - 1984 |
| VW | TRANSPORTER III Platform/Chassis | JX | 69 | 1588 | 1985 - 1987 |
| VW | TRANSPORTER IV Bus (70XB, 70XC, 7DB, 7DW, 7DK) | TRANSPORTER / CARAVELLE | 1X | 61 | 1896 | 1990 - 1995 |
| VW | TRANSPORTER T3 Bus (25_) | CS | 50 | 1588 | 1981 - 1987 |
| VW | TRANSPORTER T3 Bus (25_) | JX | 70 | 1588 | 1984 - 1992 |
| VW | TRANSPORTER T3 Bus (25_) | JX | 70 | 1588 | 1986 - 1992 |
| VW | TRANSPORTER T3 Bus (25_) | KY | 57 | 1716 | 1986 - 1992 |
| VW | TRANSPORTER T3 Platform/Chassis (24_) | CS | 50 | 1588 | 1981 - 1987 |
| VW | TRANSPORTER T3 Platform/Chassis (24_) | JX | 70 | 1588 | 1984 - 1992 |
| VW | TRANSPORTER T3 Platform/Chassis (24_) | JX | 69 | 1588 | 1986 - 1992 |
| VW | TRANSPORTER T3 Platform/Chassis (24_) | KY | 57 | 1715 | 1985 - 1992 |
| VW | TRANSPORTER T3 Van (24_, 25_) | CS | 50 | 1588 | 1981 - 1987 |
| VW | TRANSPORTER T3 Van (24_, 25_) | JX | 69 | 1588 | 1984 - 1992 |
| VW | TRANSPORTER T3 Van (24_, 25_) | JX | 69 | 1588 | 1986 - 1992 |
| VW | TRANSPORTER T3 Van (24_, 25_) | KY | 57 | 1715 | 1984 - 1992 |
| VW | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | 1X | 60 | 1896 | 1990 - 1995 |
| VW | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | ABL | 68 | 1896 | 1992 - 2003 |
| VW | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | 1X | 61,60 | 1896 | 1990 - 1995 |
| VW | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | ABL | 68 | 1896 | 1992 - 2003 |
| VW | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) | 1X | 60,61 | 1896 | 1990 - 1995 |
| VW | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J) | ABL | 68 | 1896 | 1992 - 2003 |
| VW | VENTO (1H2) | 1Y | 65 | 1896 | 1991 - 1998 |
| VW | VENTO (1H2) | AAZ | 75 | 1896 | 1991 - 1998 |
×
