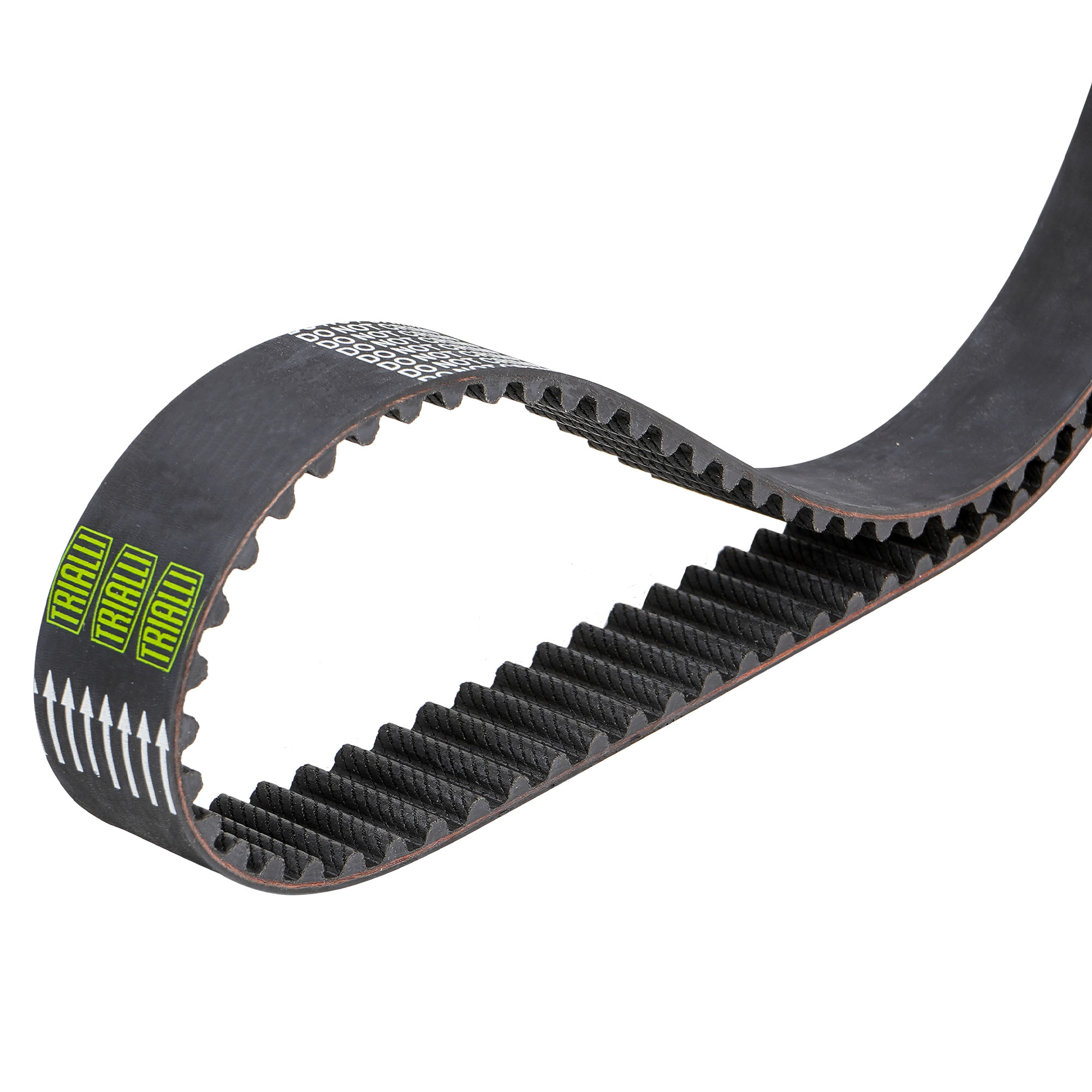

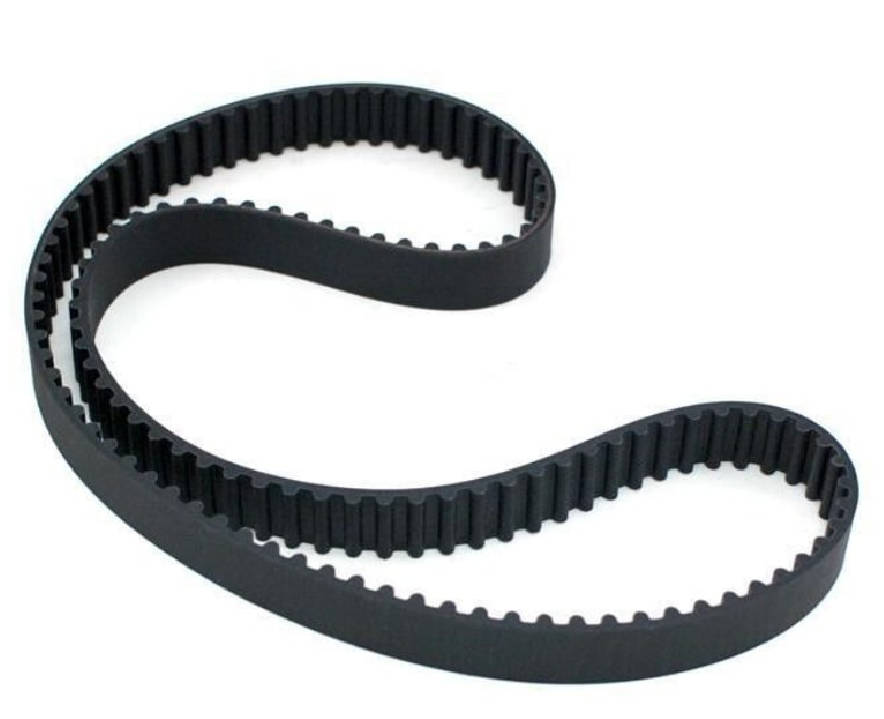

Ремень ГРМ для автомобилей VW Polo Sedan (RUS) (10-) 1.0i/1.2i/1.6i (81*10) (HNBR стекловолокно)
Характеристики
| Материал: | HNBR |
| Ширина, мм: | 10 |
| Длина, мм: | 405 |
| Количество ребер: | 81 |
| Гарантийный срок: | 2 года / 60 000 км |
ОЕМ-номер
04E 121 605 L
04C 121 605
04E 121 605 M
04E 121 605 J
Основные характеристики
Материал
HNBR
Ширина, мм
10
Длина, мм
405
Количество ребер
81
Гарантийный срок
2 года / 60 000 км
Товарная линейка
BLACK
Количество на автомобиль
1
Комплектация
Ремень ГРМ
1 шт
| Марка | Модель | Модификация | Код двигателя | Мощность, лс | Объём двигателя | Год выпуска |
|---|---|---|---|---|---|---|
| AUDI | A1 (8X1, 8XK) | 1.0 TFSI | CHZB, DKLD / CHZE | 95,82 | 999 | 2015 - 2018 |
| AUDI | A1 Sportback (8XA, 8XF) | 1.0 TFSI | CHZB, DKLD / CHZE | 95,82 | 999 | 2015 - 2018 |
| AUDI | A3 (8V1, 8VK) | 1.0 TFSI | CHZD | 115 | 999 | 2016 - 2017 |
| AUDI | A3 (8V1, 8VK) | 1.2 TFSI | CYVB / CJZA | 110,105 | 1197 | 2013 - 2016 |
| AUDI | A3 Limousine (8VS, 8VM) | 1.0 TFSI | CHZD | 115 | 999 | 2016 - 2020 |
| AUDI | A3 Limousine (8VS, 8VM) | 1.2 TFSI | CYVB / CJZA | 110,105 | 1197 | 2013 - 2016 |
| AUDI | A3 Sportback (8VA, 8VF) | 1.0 TFSI | CHZD, DKRF | 115 | 999 | 2016 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | 1.2 TFSI | CYVB / CJZA | 110,105 | 1197 | 2013 - 2016 |
| AUDI | Q2 (GAB, GAG) | 1.0 TFSI | CHZJ | 115 | 999 | 2016 - 2020 |
| SEAT | ATECA (KH7, KHP) | 1.0 TSI | CHZJ, DKRF, DUSA | 116 | 999 | 2016 - н.в. |
| SEAT | IBIZA IV (6J5, 6P1) | 1.0 | CHYB | 75 | 999 | 2015 - 2017 |
| SEAT | IBIZA IV (6J5, 6P1) | 1.0 TSI | CHZB / CHZC | 95,110 | 999 | 2015 - 2017 |
| SEAT | IBIZA IV (6J5, 6P1) | 1.2 TSI | CJZD / CJZC | 110,90 | 1197 | 2015 - 2017 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.0 | CHYB | 75 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.0 TSI | CHZB / CHZC | 95,110 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.2 TSI | CJZC / CJZD | 90,110 | 1197 | 2015 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | 1.0 | CHYB | 75 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | 1.0 TSI | CHZB / CHZC | 95,110 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | 1.2 TSI | CJZD / CJZC | 110,90 | 1197 | 2015 - 2016 |
| SEAT | IBIZA V (KJ1, KJG) | 1.0 | CHYB | 75 | 999 | 2017 - н.в. |
| SEAT | IBIZA V (KJ1, KJG) | 1.0 TSI | CHZL, DKLA, DLAC (06.21-.), DUSB (01.24-.) / CHZJ, DKJA, DKRF, DUSA (01.24-.) | 95,116 | 999 | 2017 - н.в. |
| SEAT | LEON (5F1) | 1.0 TSI | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| SEAT | LEON (5F1) | 1.2 TSI | CJZB, CYVA / CYVB / CJZA | 86,110,105 | 1197 | 2012 - 2020 |
| SEAT | LEON SC (5F5) | 1.0 TSI | CHZD | 115 | 999 | 2015 - 2018 |
| SEAT | LEON SC (5F5) | 1.2 TSI | CJZA / CYVB / CJZB, CYVA | 105,110,86 | 1197 | 2013 - 2018 |
| SEAT | LEON ST (5F8) | 1.0 TSI | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| SEAT | LEON ST (5F8) | 1.2 TSI | CYVB / CJZA / CJZB, CYVA | 110,105,86 | 1197 | 2013 - 2020 |
| SEAT | Mii (KF1, KE1) | 1.0 | CHYA / CHYB | 60,75 | 999 | 2011 - 2019 |
| SEAT | Mii (KF1, KE1) | 1.0 EcoFuel | CPGA | 68 | 999 | 2012 - 2019 |
| SKODA | CITIGO (NF1) | 1.0 | CHYA / CHYB | 60,75 | 999 | 2011 - 2019 |
| SKODA | CITIGO (NF1) | 1.0 CNG | CPGA | 68 | 999 | 2012 - 2019 |
| SKODA | FABIA III (NJ3) | 1.0 | CHYB / CHYA, CHYE | 75,60 | 999 | 2014 - 2021 |
| SKODA | FABIA III (NJ3) | 1.2 TSI | CJZC | 90 | 1197 | 2014 - 2021 |
| SKODA | FABIA III (NJ3) | 1.6 | CWVA | 110 | 1598 | 2015 - 2021 |
| SKODA | FABIA III Estate (NJ5) | 1.0 | CHYA, CHYE / CHYB | 60,75 | 999 | 2014 - 2022 |
| SKODA | FABIA III Estate (NJ5) | 1.2 TSI | CJZC | 90 | 1197 | 2014 - 2022 |
| SKODA | FABIA III Estate (NJ5) | 1.6 | CWVA | 110 | 1598 | 2015 - 2022 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | 1.0 TSI | CHZD, DKRA, DKRF | 115 | 999 | 2016 - 2020 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | 1.2 TSI | CJZA / CYVB / CJZB (.-05.15), CYVA (05.15-.) | 105,110,86 | 1197 | 2012 - 2017 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | 1.6 | CWVA | 110 | 1598 | 2014 - 2020 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | 1.0 TSI | CHZD, DKRA, DKRF | 115 | 999 | 2016 - 2020 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | 1.2 TSI | CYVB / CJZA / CJZB, CYVA | 110,105,86 | 1197 | 2012 - 2017 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | 1.6 SRE | CWVA | 110 | 1598 | 2014 - 2017 |
| SKODA | RAPID (NH3, NK3, NK6) | 1.2 TSI | CJZC | 90 | 1197 | 2015 - 2019 |
| SKODA | RAPID (NH3, NK3, NK6) | 1.6 | CWVA | 110 | 1598 | 2015 - 2022 |
| SKODA | RAPID Spaceback (NH1) | 1.2 TSI | CJZC | 90 | 1197 | 2015 - 2019 |
| SKODA | YETI (5L) | 1.2 TSI | CYVB | 110 | 1197 | 2015 - 2017 |
| SKODA | YETI (5L) | 1.6 | CWVA | 110 | 1598 | 2014 - 2017 |
| VW | BEETLE (5C1, 5C2) | 1.2 TSI 16V | CYVD | 105 | 1197 | 2014 - 2019 |
| VW | BEETLE Convertible (5C7, 5C8) | 1.2 TSI 16V | CYVD | 105 | 1197 | 2014 - 2019 |
| VW | CADDY ALLTRACK IV Box Body/MPV (SAA) | 1.0 TSI | CHZG | 102 | 999 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV Box Body/MPV (SAA) | 1.2 TSI | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV MPV (SAB) | 1.0 TSI | CHZG | 102 | 999 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV MPV (SAB) | 1.2 TSI | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | 1.0 TSI | CHZG, DKRE (11.18-.) | 102 | 999 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | 1.2 TSI | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | 1.6 SRE | CWVA | 110 | 1598 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | 1.0 TSI | CHZG, DKRE (11.18-.) | 102 | 999 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | 1.2 TSI | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | 1.6 SRE | CWVA | 110 | 1598 | 2015 - 2020 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | 1.0 TSI | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | 1.2 TSI | CYVA / CYVB | 86,110 | 1197 | 2014 - 2017 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | 1.6 | CWVA | 110 | 1598 | 2014 - 2016 |
| VW | GOLF VI Convertible (517) | 1.2 TSI 16V | CJZA, CYVD | 105 | 1197 | 2013 - 2016 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.0 TSI | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.2 TSI | CJZA / CJZB, CYVA / CYVB | 105,86,110 | 1197 | 2012 - 2017 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.6 | CWVA | 110 | 1598 | 2014 - 2017 |
| VW | GOLF VII Variant (BA5, BV5) | 1.0 TSI | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| VW | GOLF VII Variant (BA5, BV5) | 1.2 TSI | CYVB / CJZA / CJZB, CYVA | 110,105,86 | 1197 | 2013 - 2020 |
| VW | GOLF VII Variant (BA5, BV5) | 1.6 | CWVA | 110 | 1598 | 2014 - 2017 |
| VW | LOAD UP! (121, 122, BL1, BL2) | 1.0 | CHYA, DAFA | 60 | 999 | 2012 - 2019 |
| VW | LOAD UP! (121, 122, BL1, BL2) | 1.0 EcoFuel | CPGA | 68 | 999 | 2012 - 2020 |
| VW | POLO V (6R1, 6C1) | 1.0 | CHYA / CHYB | 60,75 | 999 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | 1.0 TSI | CHZC / CHZB | 110,95 | 999 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | 1.2 TSI | CJZD | 110 | 1197 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | 1.2 TSI 16V | CJZC | 90 | 1197 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | 1.6 | CWVA / CWVB | 110,90 | 1598 | 2014 - 2017 |
| VW | TOURAN (5T1) | 1.2 TSI | CYVB | 110 | 1197 | 2015 - 2018 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) | 1.0 | CHYB, CWRA / CHYA, CHYE, DAFA | 75,60 | 999 | 2011 - 2020 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) | 1.0 EcoFuel | CPGA | 68 | 999 | 2012 - 2023 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) | 1.0 TSI | CHZA, DKLC | 90 | 999 | 2016 - 2019 |
Характеристики
| Материал: | HNBR |
| Ширина, мм: | 10 |
| Длина, мм: | 405 |
| Количество ребер: | 81 |
| Гарантийный срок: | 2 года / 60 000 км |
| Товарная линейка: | BLACK |
| Количество на автомобиль: | 1 |
Комплектация
Ремень ГРМ
1 шт
ОЕМ номера
04E 121 605 L
04C 121 605
04E 121 605 M
04E 121 605 J
Применяемость
Информация по применяемости изделий к конкретной модели автомобиля является справочной
| Марка | Модель | Двигатель | Мощность, лс | Объём двигателя | Год |
|---|---|---|---|---|---|
| AUDI | A1 (8X1, 8XK) | CHZB, DKLD / CHZE | 95,82 | 999 | 2015 - 2018 |
| AUDI | A1 Sportback (8XA, 8XF) | CHZB, DKLD / CHZE | 95,82 | 999 | 2015 - 2018 |
| AUDI | A3 (8V1, 8VK) | CHZD | 115 | 999 | 2016 - 2017 |
| AUDI | A3 (8V1, 8VK) | CYVB / CJZA | 110,105 | 1197 | 2013 - 2016 |
| AUDI | A3 Limousine (8VS, 8VM) | CHZD | 115 | 999 | 2016 - 2020 |
| AUDI | A3 Limousine (8VS, 8VM) | CYVB / CJZA | 110,105 | 1197 | 2013 - 2016 |
| AUDI | A3 Sportback (8VA, 8VF) | CHZD, DKRF | 115 | 999 | 2016 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | CYVB / CJZA | 110,105 | 1197 | 2013 - 2016 |
| AUDI | Q2 (GAB, GAG) | CHZJ | 115 | 999 | 2016 - 2020 |
| SEAT | ATECA (KH7, KHP) | CHZJ, DKRF, DUSA | 116 | 999 | 2016 - н.в. |
| SEAT | IBIZA IV (6J5, 6P1) | CHYB | 75 | 999 | 2015 - 2017 |
| SEAT | IBIZA IV (6J5, 6P1) | CHZB / CHZC | 95,110 | 999 | 2015 - 2017 |
| SEAT | IBIZA IV (6J5, 6P1) | CJZD / CJZC | 110,90 | 1197 | 2015 - 2017 |
| SEAT | IBIZA IV SC (6J1, 6P5) | CHYB | 75 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV SC (6J1, 6P5) | CHZB / CHZC | 95,110 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV SC (6J1, 6P5) | CJZC / CJZD | 90,110 | 1197 | 2015 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | CHYB | 75 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | CHZB / CHZC | 95,110 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | CJZD / CJZC | 110,90 | 1197 | 2015 - 2016 |
| SEAT | IBIZA V (KJ1, KJG) | CHYB | 75 | 999 | 2017 - н.в. |
| SEAT | IBIZA V (KJ1, KJG) | CHZL, DKLA, DLAC (06.21-.), DUSB (01.24-.) / CHZJ, DKJA, DKRF, DUSA (01.24-.) | 95,116 | 999 | 2017 - н.в. |
| SEAT | LEON (5F1) | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| SEAT | LEON (5F1) | CJZB, CYVA / CYVB / CJZA | 86,110,105 | 1197 | 2012 - 2020 |
| SEAT | LEON SC (5F5) | CHZD | 115 | 999 | 2015 - 2018 |
| SEAT | LEON SC (5F5) | CJZA / CYVB / CJZB, CYVA | 105,110,86 | 1197 | 2013 - 2018 |
| SEAT | LEON ST (5F8) | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| SEAT | LEON ST (5F8) | CYVB / CJZA / CJZB, CYVA | 110,105,86 | 1197 | 2013 - 2020 |
| SEAT | Mii (KF1, KE1) | CHYA / CHYB | 60,75 | 999 | 2011 - 2019 |
| SEAT | Mii (KF1, KE1) | CPGA | 68 | 999 | 2012 - 2019 |
| SKODA | CITIGO (NF1) | CHYA / CHYB | 60,75 | 999 | 2011 - 2019 |
| SKODA | CITIGO (NF1) | CPGA | 68 | 999 | 2012 - 2019 |
| SKODA | FABIA III (NJ3) | CHYB / CHYA, CHYE | 75,60 | 999 | 2014 - 2021 |
| SKODA | FABIA III (NJ3) | CJZC | 90 | 1197 | 2014 - 2021 |
| SKODA | FABIA III (NJ3) | CWVA | 110 | 1598 | 2015 - 2021 |
| SKODA | FABIA III Estate (NJ5) | CHYA, CHYE / CHYB | 60,75 | 999 | 2014 - 2022 |
| SKODA | FABIA III Estate (NJ5) | CJZC | 90 | 1197 | 2014 - 2022 |
| SKODA | FABIA III Estate (NJ5) | CWVA | 110 | 1598 | 2015 - 2022 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | CHZD, DKRA, DKRF | 115 | 999 | 2016 - 2020 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | CJZA / CYVB / CJZB (.-05.15), CYVA (05.15-.) | 105,110,86 | 1197 | 2012 - 2017 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | CWVA | 110 | 1598 | 2014 - 2020 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | CHZD, DKRA, DKRF | 115 | 999 | 2016 - 2020 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | CYVB / CJZA / CJZB, CYVA | 110,105,86 | 1197 | 2012 - 2017 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | CWVA | 110 | 1598 | 2014 - 2017 |
| SKODA | RAPID (NH3, NK3, NK6) | CJZC | 90 | 1197 | 2015 - 2019 |
| SKODA | RAPID (NH3, NK3, NK6) | CWVA | 110 | 1598 | 2015 - 2022 |
| SKODA | RAPID Spaceback (NH1) | CJZC | 90 | 1197 | 2015 - 2019 |
| SKODA | YETI (5L) | CYVB | 110 | 1197 | 2015 - 2017 |
| SKODA | YETI (5L) | CWVA | 110 | 1598 | 2014 - 2017 |
| VW | BEETLE (5C1, 5C2) | CYVD | 105 | 1197 | 2014 - 2019 |
| VW | BEETLE Convertible (5C7, 5C8) | CYVD | 105 | 1197 | 2014 - 2019 |
| VW | CADDY ALLTRACK IV Box Body/MPV (SAA) | CHZG | 102 | 999 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV Box Body/MPV (SAA) | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV MPV (SAB) | CHZG | 102 | 999 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV MPV (SAB) | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | CHZG, DKRE (11.18-.) | 102 | 999 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | CWVA | 110 | 1598 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | CHZG, DKRE (11.18-.) | 102 | 999 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | CWVA | 110 | 1598 | 2015 - 2020 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | CYVA / CYVB | 86,110 | 1197 | 2014 - 2017 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | CWVA | 110 | 1598 | 2014 - 2016 |
| VW | GOLF VI Convertible (517) | CJZA, CYVD | 105 | 1197 | 2013 - 2016 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | CJZA / CJZB, CYVA / CYVB | 105,86,110 | 1197 | 2012 - 2017 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | CWVA | 110 | 1598 | 2014 - 2017 |
| VW | GOLF VII Variant (BA5, BV5) | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| VW | GOLF VII Variant (BA5, BV5) | CYVB / CJZA / CJZB, CYVA | 110,105,86 | 1197 | 2013 - 2020 |
| VW | GOLF VII Variant (BA5, BV5) | CWVA | 110 | 1598 | 2014 - 2017 |
| VW | LOAD UP! (121, 122, BL1, BL2) | CHYA, DAFA | 60 | 999 | 2012 - 2019 |
| VW | LOAD UP! (121, 122, BL1, BL2) | CPGA | 68 | 999 | 2012 - 2020 |
| VW | POLO V (6R1, 6C1) | CHYA / CHYB | 60,75 | 999 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | CHZC / CHZB | 110,95 | 999 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | CJZD | 110 | 1197 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | CJZC | 90 | 1197 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | CWVA / CWVB | 110,90 | 1598 | 2014 - 2017 |
| VW | TOURAN (5T1) | CYVB | 110 | 1197 | 2015 - 2018 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) | CHYB, CWRA / CHYA, CHYE, DAFA | 75,60 | 999 | 2011 - 2020 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) | CPGA | 68 | 999 | 2012 - 2023 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) | CHZA, DKLC | 90 | 999 | 2016 - 2019 |
×
