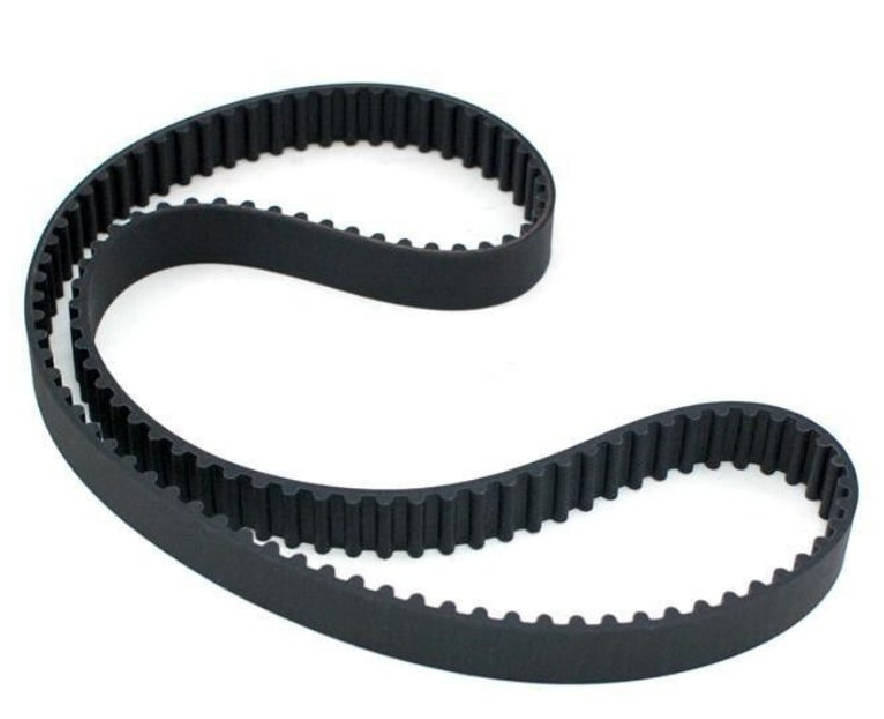

Ремень ГРМ для автомобилей Skoda Octavia A7 (13-) 1.0TSi/1.2TSi/1.4TSi/1.5TSi/1.6i (163*20) (HNBR стекловолокно)
Характеристики
| Материал: | HNBR |
| Особенности конструкции: | 163S7M20 |
| Ширина, мм: | 20 |
| Длина, мм: | 1141 |
| Количество ребер: | 163 |
ОЕМ-номер
04E 109 119 C
04E 109 119
04E 109 119 G
04E109119F
04E109119L
Основные характеристики
Материал
HNBR
Особенности конструкции
163S7M20
Ширина, мм
20
Длина, мм
1141
Количество ребер
163
Гарантийный срок
2 года / 60 000 км
Товарная линейка
BLACK
Количество на автомобиль
1
Комплектация
Ремень ГРМ
1 шт
| Марка | Модель | Модификация | Код двигателя | Мощность, лс | Объём двигателя | Год выпуска |
|---|---|---|---|---|---|---|
| AUDI | A1 (8X1, 8XK) | 1.0 TFSI | CHZB, DKLD / CHZE | 95,82 | 999 | 2015 - 2018 |
| AUDI | A1 (8X1, 8XK) | 1.4 TSI | CZEA | 150 | 1395 | 2014 - 2018 |
| AUDI | A1 (8X1, 8XK) | 1.4 TFSI | CZCA, CZDD / CPTA | 125,140 | 1395 | 2012 - 2018 |
| AUDI | A1 Sportback (8XA, 8XF) | 1.0 TFSI | CHZB, DKLD / CHZE | 95,82 | 999 | 2015 - 2018 |
| AUDI | A1 Sportback (8XA, 8XF) | 1.4 TFSI | CZCA, CZDD / CPTA | 125,140 | 1395 | 2012 - 2018 |
| AUDI | A1 Sportback (8XA, 8XF) | 1.4 TSI | CZEA | 150 | 1395 | 2014 - 2018 |
| AUDI | A3 (8V1, 8VK) | 1.0 TFSI | CHZD | 115 | 999 | 2016 - 2017 |
| AUDI | A3 (8V1, 8VK) | 1.2 TFSI | CYVB / CJZA | 110,105 | 1197 | 2013 - 2016 |
| AUDI | A3 (8V1, 8VK) | 1.4 TSI | CZEA | 150 | 1395 | 2014 - 2017 |
| AUDI | A3 (8V1, 8VK) | 1.4 TFSI | CMBA, CXSA / CPTA / CXSB, CZCA | 122,140,125 | 1395 | 2012 - 2016 |
| AUDI | A3 Convertible (8V7, 8VE) | 1.4 TFSI | CPTA / CZCC / CXSB, CZCA | 140,115,125 | 1395 | 2013 - 2020 |
| AUDI | A3 Convertible (8V7, 8VE) | 1.4 TSI | CZEA | 150 | 1395 | 2014 - 2020 |
| AUDI | A3 Limousine (8VS, 8VM) | 1.0 TFSI | CHZD | 115 | 999 | 2016 - 2020 |
| AUDI | A3 Limousine (8VS, 8VM) | 1.2 TFSI | CYVB / CJZA | 110,105 | 1197 | 2013 - 2016 |
| AUDI | A3 Limousine (8VS, 8VM) | 1.4 TFSI | CPTA / CXSB, CZCA / CXSA | 140,125,122 | 1395 | 2013 - 2020 |
| AUDI | A3 Limousine (8VS, 8VM) | 1.4 TSI | CZEA | 150 | 1395 | 2014 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | 1.0 TFSI | CHZD, DKRF | 115 | 999 | 2016 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | 1.2 TFSI | CYVB / CJZA | 110,105 | 1197 | 2013 - 2016 |
| AUDI | A3 Sportback (8VA, 8VF) | 1.4 TFSI | CXSB, CZCA / CPTA / CMBA, CXSA | 125,140,122 | 1395 | 2012 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | 1.4 TSI | CZEA | 150 | 1395 | 2014 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | 1.4 TFSI e-tron | CUKB, CXUA, DGEA (07.16-.) | 150 | 1395 | 2014 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | 1.4 TFSI g-tron | CPWA | 110 | 1395 | 2013 - 2020 |
| AUDI | A4 B9 (8W2, 8WC) | 1.4 TFSI | CVNA | 150 | 1395 | 2015 - 2019 |
| AUDI | A4 B9 Avant (8W5, 8WD) | 1.4 TFSI | CVNA | 150 | 1395 | 2016 - 2019 |
| AUDI | A5 (F53, F5P) | 1.4 TFSI | CVNA | 150 | 1395 | 2016 - 2020 |
| AUDI | A5 Sportback (F5A, F5F) | 1.4 TFSI | CVNA | 150 | 1395 | 2017 - 2020 |
| AUDI | Q2 (GAB, GAG) | 1.0 TFSI | CHZJ | 115 | 999 | 2016 - 2020 |
| AUDI | Q2 (GAB, GAG) | 1.4 TFSI | CZEA | 150 | 1395 | 2016 - н.в. |
| AUDI | Q3 (8UB, 8UG) | 1.4 TSI | CHPB, CZDA, CZEA | 150 | 1395 | 2013 - 2018 |
| AUDI | Q3 (8UB, 8UG) | 1.4 TFSI | CZDB | 125 | 1395 | 2016 - 2018 |
| SEAT | ALHAMBRA (710, 711) | 1.4 TSI | CZDA, DJKA | 150 | 1395 | 2015 - 2022 |
| SEAT | ATECA (KH7, KHP) | 1.0 TSI | CHZJ, DKRF, DUSA | 116 | 999 | 2016 - н.в. |
| SEAT | ATECA (KH7, KHP) | 1.4 TSI | CZEA, DJKA | 150 | 1395 | 2016 - н.в. |
| SEAT | ATECA (KH7, KHP) | 1.4 TSI 4Drive | CZEA | 150 | 1395 | 2016 - н.в. |
| SEAT | IBIZA IV (6J5, 6P1) | 1.0 | CHYB | 75 | 999 | 2015 - 2017 |
| SEAT | IBIZA IV (6J5, 6P1) | 1.0 TSI | CHZB / CHZC | 95,110 | 999 | 2015 - 2017 |
| SEAT | IBIZA IV (6J5, 6P1) | 1.2 TSI | CJZD / CJZC | 110,90 | 1197 | 2015 - 2017 |
| SEAT | IBIZA IV (6J5, 6P1) | 1.4 TSI | CZEA / CPTA | 150,140 | 1395 | 2013 - 2017 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.0 | CHYB | 75 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.0 TSI | CHZB / CHZC | 95,110 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.2 TSI | CJZC / CJZD | 90,110 | 1197 | 2015 - 2016 |
| SEAT | IBIZA IV SC (6J1, 6P5) | 1.4 TSI | CZEA / CPTA | 150,140 | 1395 | 2013 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | 1.0 | CHYB | 75 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | 1.0 TSI | CHZB / CHZC | 95,110 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | 1.2 TSI | CJZD / CJZC | 110,90 | 1197 | 2015 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | 1.4 TSI | CPTA / CZEA | 140,150 | 1395 | 2013 - 2016 |
| SEAT | IBIZA V (KJ1, KJG) | 1.0 | CHYB | 75 | 999 | 2017 - н.в. |
| SEAT | IBIZA V (KJ1, KJG) | 1.0 TSI | CHZL, DKLA, DLAC (06.21-.), DUSB (01.24-.) / CHZJ, DKJA, DKRF, DUSA (01.24-.) | 95,116 | 999 | 2017 - н.в. |
| SEAT | LEON (5F1) | 1.0 TSI | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| SEAT | LEON (5F1) | 1.2 TSI | CJZB, CYVA / CYVB / CJZA | 86,110,105 | 1197 | 2012 - 2020 |
| SEAT | LEON (5F1) | 1.4 TGI | CPWA | 110 | 1395 | 2013 - 2018 |
| SEAT | LEON (5F1) | 1.4 TSI | CZDA, CZEA / CMBA, CXSA / CZCA / CHPA, CPTA | 150,122,125,140 | 1395 | 2012 - 2020 |
| SEAT | LEON SC (5F5) | 1.0 TSI | CHZD | 115 | 999 | 2015 - 2018 |
| SEAT | LEON SC (5F5) | 1.2 TSI | CJZA / CYVB / CJZB, CYVA | 105,110,86 | 1197 | 2013 - 2018 |
| SEAT | LEON SC (5F5) | 1.4 TSI | CZEA / CMBA, CXSA / CHPA, CPTA / CZCA | 150,122,140,125 | 1395 | 2013 - 2018 |
| SEAT | LEON ST (5F8) | 1.0 TSI | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| SEAT | LEON ST (5F8) | 1.2 TSI | CYVB / CJZA / CJZB, CYVA | 110,105,86 | 1197 | 2013 - 2020 |
| SEAT | LEON ST (5F8) | 1.4 TGI | CPWA | 110 | 1395 | 2013 - 2018 |
| SEAT | LEON ST (5F8) | 1.4 TSI | CZEA / CHPA, CPTA / CMBA, CXSA / CZCA | 150,140,122,125 | 1395 | 2012 - 2020 |
| SEAT | Mii (KF1, KE1) | 1.0 | CHYA / CHYB | 60,75 | 999 | 2011 - 2019 |
| SEAT | Mii (KF1, KE1) | 1.0 EcoFuel | CPGA | 68 | 999 | 2012 - 2019 |
| SEAT | TOLEDO IV (KG3) | 1.2 TSI | CJZD / CJZC | 110,90 | 1197 | 2015 - 2017 |
| SEAT | TOLEDO IV (KG3) | 1.4 TSI | CZCA | 125 | 1395 | 2015 - 2019 |
| SKODA | CITIGO (NF1) | 1.0 | CHYA / CHYB | 60,75 | 999 | 2011 - 2019 |
| SKODA | CITIGO (NF1) | 1.0 CNG | CPGA | 68 | 999 | 2012 - 2019 |
| SKODA | FABIA III (NJ3) | 1.0 | CHYB / CHYA, CHYE | 75,60 | 999 | 2014 - 2021 |
| SKODA | FABIA III (NJ3) | 1.2 TSI | CJZC / CJZD | 90,110 | 1197 | 2014 - 2021 |
| SKODA | FABIA III (NJ3) | 1.6 | CWVA | 110 | 1598 | 2015 - 2021 |
| SKODA | FABIA III Estate (NJ5) | 1.0 | CHYA, CHYE / CHYB | 60,75 | 999 | 2014 - 2022 |
| SKODA | FABIA III Estate (NJ5) | 1.2 TSI | CJZD / CJZC | 110,90 | 1197 | 2014 - 2022 |
| SKODA | FABIA III Estate (NJ5) | 1.6 | CWVA | 110 | 1598 | 2015 - 2022 |
| SKODA | KODIAQ I (NS6, NS7, NV7) | 1.4 TSI | CZDA, CZEA / CZCA, CZDB (09.21-.) | 150,125 | 1395 | 2016 - н.в. |
| SKODA | KODIAQ I (NS6, NS7, NV7) | 1.4 TSI 4x4 | CZDA, CZEA | 150 | 1395 | 2016 - н.в. |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | 1.2 TSI | CJZA / CYVB / CJZB (.-05.15), CYVA (05.15-.) | 105,110,86 | 1197 | 2012 - 2017 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | 1.4 TSI | CHPB, CZDA / CHPA | 150,140 | 1395 | 2012 - 2020 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | 1.4 TSI G-TEC | CPWA | 110 | 1395 | 2013 - 2017 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | 1.6 | CWVA | 110 | 1598 | 2014 - 2020 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | 1.2 TSI | CYVB / CJZA / CJZB, CYVA | 110,105,86 | 1197 | 2012 - 2017 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | 1.4 TSI | CHPA / CHPB, CZDA | 140,150 | 1395 | 2012 - 2020 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | 1.4 TSI G-TEC | CPWA | 110 | 1395 | 2012 - 2017 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | 1.6 SRE | CWVA | 110 | 1598 | 2014 - 2017 |
| SKODA | RAPID (NH3, NK3, NK6) | 1.2 TSI | CJZD / CJZC | 110,90 | 1197 | 2015 - 2019 |
| SKODA | RAPID (NH3, NK3, NK6) | 1.4 TSI | CZCA | 125 | 1395 | 2015 - 2022 |
| SKODA | RAPID (NH3, NK3, NK6) | 1.6 | CWVA | 110 | 1598 | 2015 - 2022 |
| SKODA | RAPID Spaceback (NH1) | 1.2 TSI | CJZD / CJZC | 110,90 | 1197 | 2015 - 2019 |
| SKODA | RAPID Spaceback (NH1) | 1.4 TSI | CZCA | 125 | 1395 | 2015 - 2019 |
| SKODA | SUPERB III (3V3) | 1.4 TSI | CZDA, CZEA / CZCA | 150,125 | 1395 | 2015 - 2024 |
| SKODA | SUPERB III (3V3) | 1.4 TSI 4x4 | CZEA | 150 | 1395 | 2015 - 2024 |
| SKODA | SUPERB III Estate (3V5) | 1.4 TSI | CZDA, CZEA / CZCA | 150,125 | 1395 | 2015 - 2024 |
| SKODA | SUPERB III Estate (3V5) | 1.4 TSI 4x4 | CZEA | 150 | 1395 | 2015 - 2024 |
| SKODA | YETI (5L) | 1.2 TSI | CYVB | 110 | 1197 | 2015 - 2017 |
| SKODA | YETI (5L) | 1.4 TSI | CZCA | 125 | 1395 | 2015 - 2017 |
| SKODA | YETI (5L) | 1.4 TSI 4x4 | CZDA | 150 | 1395 | 2015 - 2017 |
| SKODA | YETI (5L) | 1.6 | CWVA | 110 | 1598 | 2014 - 2017 |
| VW | BEETLE (5C1, 5C2) | 1.2 TSI 16V | CYVD | 105 | 1197 | 2014 - 2019 |
| VW | BEETLE (5C1, 5C2) | 1.4 TSI | CZDA | 150 | 1395 | 2014 - 2019 |
| VW | BEETLE Convertible (5C7, 5C8) | 1.2 TSI 16V | CYVD | 105 | 1197 | 2014 - 2019 |
| VW | BEETLE Convertible (5C7, 5C8) | 1.4 TSI | CZDA | 150 | 1395 | 2014 - 2018 |
| VW | CADDY ALLTRACK IV Box Body/MPV (SAA) | 1.0 TSI | CHZG | 102 | 999 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV Box Body/MPV (SAA) | 1.2 TSI | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV Box Body/MPV (SAA) | 1.4 TGI CNG | CPWA | 110 | 1395 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV Box Body/MPV (SAA) | 1.4 TSI | CZCB | 125 | 1395 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV MPV (SAB) | 1.0 TSI | CHZG | 102 | 999 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV MPV (SAB) | 1.2 TSI | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV MPV (SAB) | 1.4 TGI CNG | CPWA | 110 | 1395 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV MPV (SAB) | 1.4 TSI | CZCB | 125 | 1395 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | 1.0 TSI | CHZG, DKRE (11.18-.) | 102 | 999 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | 1.2 TSI | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | 1.4 TGI CNG | CPWA | 110 | 1395 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | 1.4 TSI | CZCB | 125 | 1395 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | 1.6 SRE | CWVA | 110 | 1598 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | 1.0 TSI | CHZG, DKRE (11.18-.) | 102 | 999 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | 1.2 TSI | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | 1.4 TGI CNG | CPWA | 110 | 1395 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | 1.4 TSI | CZCB | 125 | 1395 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | 1.6 SRE | CWVA | 110 | 1598 | 2015 - 2020 |
| VW | CC B7 (358) | 1.4 TSI | CZDA | 150 | 1395 | 2015 - 2016 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | 1.0 TSI | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | 1.2 TSI | CYVA / CYVB | 86,110 | 1197 | 2014 - 2017 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | 1.4 TSI | CZDA / CZCA | 150,125 | 1395 | 2014 - 2020 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | 1.4 TSI MultiFuel | CPVB | 125 | 1395 | 2014 - 2017 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | 1.6 | CWVA | 110 | 1598 | 2014 - 2016 |
| VW | GOLF VI Convertible (517) | 1.2 TSI 16V | CJZA, CYVD | 105 | 1197 | 2013 - 2016 |
| VW | GOLF VI Convertible (517) | 1.4 TSI | CHPB, CZDA / CXSB, CZCA | 150,125 | 1395 | 2013 - 2016 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.0 TSI | CHZK, DKLB / CHZC / CHZD, DKRF | 86,110,115 | 999 | 2015 - 2020 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.2 TSI | CJZA / CJZB, CYVA / CYVB | 105,86,110 | 1197 | 2012 - 2017 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.4 GTE Hybrid | CUKB, DGEA | 204 | 1395 | 2014 - 2020 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.4 TGI CNG | CPWA, CZBA | 110 | 1395 | 2013 - 2018 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.4 TSI | CMBA, CXSA / CZCA / CHPA, CPTA / CZDA, CZEA, DGXA | 122,125,140,150 | 1395 | 2012 - 2021 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.4 TSI MultiFuel | CPVA / CPVB | 122,125 | 1395 | 2012 - 2018 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.5 TSI | DADA, DPCA | 150 | 1498 | 2017 - 2020 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | 1.6 | CWVA | 110 | 1598 | 2014 - 2017 |
| VW | GOLF VII Variant (BA5, BV5) | 1.0 TSI | CHZD, DKRF / CHZC / CHZK (01.17-07.18), DKLB (07.18-.) | 115,110,86 | 999 | 2015 - 2020 |
| VW | GOLF VII Variant (BA5, BV5) | 1.2 TSI | CYVB / CJZA / CJZB, CYVA | 110,105,86 | 1197 | 2013 - 2020 |
| VW | GOLF VII Variant (BA5, BV5) | 1.4 TGI CNG | CPWA | 110 | 1395 | 2013 - 2018 |
| VW | GOLF VII Variant (BA5, BV5) | 1.4 TSI | CXSA / CHPB, CZDA, DGXA / CHPA / CZCA, CZDD | 122,150,140,125 | 1395 | 2013 - 2021 |
| VW | GOLF VII Variant (BA5, BV5) | 1.4 TSI MultiFuel | CPVB / CPVA | 125,122 | 1395 | 2013 - 2017 |
| VW | GOLF VII Variant (BA5, BV5) | 1.5 TSI | DADA, DPCA | 150 | 1498 | 2017 - 2020 |
| VW | GOLF VII Variant (BA5, BV5) | 1.6 | CWVA | 110 | 1598 | 2014 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.4 TSI | CZCA / CZDA, CZTA | 125,150 | 1395 | 2014 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.4 TSI Hybrid | CNLA, CRJA | 170 | 1395 | 2011 - 2017 |
| VW | LOAD UP! (121, 122, BL1, BL2) | 1.0 | CHYA, DAFA | 60 | 999 | 2012 - 2019 |
| VW | LOAD UP! (121, 122, BL1, BL2) | 1.0 EcoFuel | CPGA | 68 | 999 | 2012 - 2020 |
| VW | PASSAT ALLTRACK B8 Variant (3G5, CB5) | 1.4 TSI 4motion | CZEA | 150 | 1395 | 2015 - 2018 |
| VW | PASSAT B8 (3G2, CB2) | 1.4 GTE Hybrid | CUKC, DGEB | 218 | 1395 | 2015 - 2024 |
| VW | PASSAT B8 (3G2, CB2) | 1.4 TSI | CZDA, CZEA / CZCA | 150,125 | 1395 | 2014 - 2024 |
| VW | PASSAT B8 (3G2, CB2) | 1.4 TSI 4motion | CZEA | 150 | 1395 | 2015 - 2018 |
| VW | PASSAT B8 Variant (3G5, CB5) | 1.4 GTE Hybrid | CUKC, DGEB | 218 | 1395 | 2015 - 2024 |
| VW | PASSAT B8 Variant (3G5, CB5) | 1.4 TSI | CZDA, CZEA / CZCA | 150,125 | 1395 | 2014 - 2024 |
| VW | PASSAT B8 Variant (3G5, CB5) | 1.4 TSI 4motion | CZEA | 150 | 1395 | 2015 - 2018 |
| VW | POLO V (6R1, 6C1) | 1.0 | CHYA / CHYB | 60,75 | 999 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | 1.0 TSI | CHZC / CHZB | 110,95 | 999 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | 1.2 TSI | CJZD | 110 | 1197 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | 1.2 TSI 16V | CJZC | 90 | 1197 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | 1.4 TSI | CPTA / CZEA | 140,150 | 1395 | 2012 - 2017 |
| VW | POLO V (6R1, 6C1) | 1.6 | CWVA / CWVB | 110,90 | 1598 | 2014 - 2017 |
| VW | SCIROCCO III (137, 138) | 1.4 TSI | CZDA / CXSB, CZCA | 150,125 | 1395 | 2013 - 2017 |
| VW | SHARAN (7N1, 7N2) | 1.4 TSI | CZDA, DJKA | 150 | 1395 | 2015 - 2022 |
| VW | TIGUAN (5N_) | 1.4 TSI | CZDB / CZDA | 125,150 | 1395 | 2015 - 2018 |
| VW | TIGUAN (AD1, AX1) | 1.4 TSI | CZCA (.-12.20), CZDB (12.20-.) / CZDA (05.16-.), CZEA (05.16-07.19), DJVA (05.17-07.18) | 125,150 | 1395 | 2016 - 2024 |
| VW | TIGUAN (AD1, AX1) | 1.4 TSI 4motion | CZDA (06.16-07.18), CZEA (05.16-07.18) | 150 | 1395 | 2016 - 2018 |
| VW | TOURAN (5T1) | 1.2 TSI | CYVB | 110 | 1197 | 2015 - 2018 |
| VW | TOURAN (5T1) | 1.4 TSI | CZDA | 150 | 1395 | 2015 - 2022 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) | 1.0 | CHYB, CWRA / CHYA, CHYE, DAFA | 75,60 | 999 | 2011 - 2020 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) | 1.0 EcoFuel | CPGA | 68 | 999 | 2012 - 2023 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) | 1.0 TSI | CHZA, DKLC | 90 | 999 | 2016 - 2019 |
Сертификаты
2157
Характеристики
| Материал: | HNBR |
| Особенности конструкции: | 163S7M20 |
| Ширина, мм: | 20 |
| Длина, мм: | 1141 |
| Количество ребер: | 163 |
| Гарантийный срок: | 2 года / 60 000 км |
| Товарная линейка: | BLACK |
| Количество на автомобиль: | 1 |
Комплектация
Ремень ГРМ
1 шт
ОЕМ номера
04E 109 119 C
04E 109 119
04E 109 119 G
04E109119F
04E109119L
Применяемость
Информация по применяемости изделий к конкретной модели автомобиля является справочной
| Марка | Модель | Двигатель | Мощность, лс | Объём двигателя | Год |
|---|---|---|---|---|---|
| AUDI | A1 (8X1, 8XK) | CHZB, DKLD / CHZE | 95,82 | 999 | 2015 - 2018 |
| AUDI | A1 (8X1, 8XK) | CZEA | 150 | 1395 | 2014 - 2018 |
| AUDI | A1 (8X1, 8XK) | CZCA, CZDD / CPTA | 125,140 | 1395 | 2012 - 2018 |
| AUDI | A1 Sportback (8XA, 8XF) | CHZB, DKLD / CHZE | 95,82 | 999 | 2015 - 2018 |
| AUDI | A1 Sportback (8XA, 8XF) | CZCA, CZDD / CPTA | 125,140 | 1395 | 2012 - 2018 |
| AUDI | A1 Sportback (8XA, 8XF) | CZEA | 150 | 1395 | 2014 - 2018 |
| AUDI | A3 (8V1, 8VK) | CHZD | 115 | 999 | 2016 - 2017 |
| AUDI | A3 (8V1, 8VK) | CYVB / CJZA | 110,105 | 1197 | 2013 - 2016 |
| AUDI | A3 (8V1, 8VK) | CZEA | 150 | 1395 | 2014 - 2017 |
| AUDI | A3 (8V1, 8VK) | CMBA, CXSA / CPTA / CXSB, CZCA | 122,140,125 | 1395 | 2012 - 2016 |
| AUDI | A3 Convertible (8V7, 8VE) | CPTA / CZCC / CXSB, CZCA | 140,115,125 | 1395 | 2013 - 2020 |
| AUDI | A3 Convertible (8V7, 8VE) | CZEA | 150 | 1395 | 2014 - 2020 |
| AUDI | A3 Limousine (8VS, 8VM) | CHZD | 115 | 999 | 2016 - 2020 |
| AUDI | A3 Limousine (8VS, 8VM) | CYVB / CJZA | 110,105 | 1197 | 2013 - 2016 |
| AUDI | A3 Limousine (8VS, 8VM) | CPTA / CXSB, CZCA / CXSA | 140,125,122 | 1395 | 2013 - 2020 |
| AUDI | A3 Limousine (8VS, 8VM) | CZEA | 150 | 1395 | 2014 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | CHZD, DKRF | 115 | 999 | 2016 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | CYVB / CJZA | 110,105 | 1197 | 2013 - 2016 |
| AUDI | A3 Sportback (8VA, 8VF) | CXSB, CZCA / CPTA / CMBA, CXSA | 125,140,122 | 1395 | 2012 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | CZEA | 150 | 1395 | 2014 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | CUKB, CXUA, DGEA (07.16-.) | 150 | 1395 | 2014 - 2020 |
| AUDI | A3 Sportback (8VA, 8VF) | CPWA | 110 | 1395 | 2013 - 2020 |
| AUDI | A4 B9 (8W2, 8WC) | CVNA | 150 | 1395 | 2015 - 2019 |
| AUDI | A4 B9 Avant (8W5, 8WD) | CVNA | 150 | 1395 | 2016 - 2019 |
| AUDI | A5 (F53, F5P) | CVNA | 150 | 1395 | 2016 - 2020 |
| AUDI | A5 Sportback (F5A, F5F) | CVNA | 150 | 1395 | 2017 - 2020 |
| AUDI | Q2 (GAB, GAG) | CHZJ | 115 | 999 | 2016 - 2020 |
| AUDI | Q2 (GAB, GAG) | CZEA | 150 | 1395 | 2016 - н.в. |
| AUDI | Q3 (8UB, 8UG) | CHPB, CZDA, CZEA | 150 | 1395 | 2013 - 2018 |
| AUDI | Q3 (8UB, 8UG) | CZDB | 125 | 1395 | 2016 - 2018 |
| SEAT | ALHAMBRA (710, 711) | CZDA, DJKA | 150 | 1395 | 2015 - 2022 |
| SEAT | ATECA (KH7, KHP) | CHZJ, DKRF, DUSA | 116 | 999 | 2016 - н.в. |
| SEAT | ATECA (KH7, KHP) | CZEA, DJKA | 150 | 1395 | 2016 - н.в. |
| SEAT | ATECA (KH7, KHP) | CZEA | 150 | 1395 | 2016 - н.в. |
| SEAT | IBIZA IV (6J5, 6P1) | CHYB | 75 | 999 | 2015 - 2017 |
| SEAT | IBIZA IV (6J5, 6P1) | CHZB / CHZC | 95,110 | 999 | 2015 - 2017 |
| SEAT | IBIZA IV (6J5, 6P1) | CJZD / CJZC | 110,90 | 1197 | 2015 - 2017 |
| SEAT | IBIZA IV (6J5, 6P1) | CZEA / CPTA | 150,140 | 1395 | 2013 - 2017 |
| SEAT | IBIZA IV SC (6J1, 6P5) | CHYB | 75 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV SC (6J1, 6P5) | CHZB / CHZC | 95,110 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV SC (6J1, 6P5) | CJZC / CJZD | 90,110 | 1197 | 2015 - 2016 |
| SEAT | IBIZA IV SC (6J1, 6P5) | CZEA / CPTA | 150,140 | 1395 | 2013 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | CHYB | 75 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | CHZB / CHZC | 95,110 | 999 | 2015 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | CJZD / CJZC | 110,90 | 1197 | 2015 - 2016 |
| SEAT | IBIZA IV ST (6J8, 6P8) | CPTA / CZEA | 140,150 | 1395 | 2013 - 2016 |
| SEAT | IBIZA V (KJ1, KJG) | CHYB | 75 | 999 | 2017 - н.в. |
| SEAT | IBIZA V (KJ1, KJG) | CHZL, DKLA, DLAC (06.21-.), DUSB (01.24-.) / CHZJ, DKJA, DKRF, DUSA (01.24-.) | 95,116 | 999 | 2017 - н.в. |
| SEAT | LEON (5F1) | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| SEAT | LEON (5F1) | CJZB, CYVA / CYVB / CJZA | 86,110,105 | 1197 | 2012 - 2020 |
| SEAT | LEON (5F1) | CPWA | 110 | 1395 | 2013 - 2018 |
| SEAT | LEON (5F1) | CZDA, CZEA / CMBA, CXSA / CZCA / CHPA, CPTA | 150,122,125,140 | 1395 | 2012 - 2020 |
| SEAT | LEON SC (5F5) | CHZD | 115 | 999 | 2015 - 2018 |
| SEAT | LEON SC (5F5) | CJZA / CYVB / CJZB, CYVA | 105,110,86 | 1197 | 2013 - 2018 |
| SEAT | LEON SC (5F5) | CZEA / CMBA, CXSA / CHPA, CPTA / CZCA | 150,122,140,125 | 1395 | 2013 - 2018 |
| SEAT | LEON ST (5F8) | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| SEAT | LEON ST (5F8) | CYVB / CJZA / CJZB, CYVA | 110,105,86 | 1197 | 2013 - 2020 |
| SEAT | LEON ST (5F8) | CPWA | 110 | 1395 | 2013 - 2018 |
| SEAT | LEON ST (5F8) | CZEA / CHPA, CPTA / CMBA, CXSA / CZCA | 150,140,122,125 | 1395 | 2012 - 2020 |
| SEAT | Mii (KF1, KE1) | CHYA / CHYB | 60,75 | 999 | 2011 - 2019 |
| SEAT | Mii (KF1, KE1) | CPGA | 68 | 999 | 2012 - 2019 |
| SEAT | TOLEDO IV (KG3) | CJZD / CJZC | 110,90 | 1197 | 2015 - 2017 |
| SEAT | TOLEDO IV (KG3) | CZCA | 125 | 1395 | 2015 - 2019 |
| SKODA | CITIGO (NF1) | CHYA / CHYB | 60,75 | 999 | 2011 - 2019 |
| SKODA | CITIGO (NF1) | CPGA | 68 | 999 | 2012 - 2019 |
| SKODA | FABIA III (NJ3) | CHYB / CHYA, CHYE | 75,60 | 999 | 2014 - 2021 |
| SKODA | FABIA III (NJ3) | CJZC / CJZD | 90,110 | 1197 | 2014 - 2021 |
| SKODA | FABIA III (NJ3) | CWVA | 110 | 1598 | 2015 - 2021 |
| SKODA | FABIA III Estate (NJ5) | CHYA, CHYE / CHYB | 60,75 | 999 | 2014 - 2022 |
| SKODA | FABIA III Estate (NJ5) | CJZD / CJZC | 110,90 | 1197 | 2014 - 2022 |
| SKODA | FABIA III Estate (NJ5) | CWVA | 110 | 1598 | 2015 - 2022 |
| SKODA | KODIAQ I (NS6, NS7, NV7) | CZDA, CZEA / CZCA, CZDB (09.21-.) | 150,125 | 1395 | 2016 - н.в. |
| SKODA | KODIAQ I (NS6, NS7, NV7) | CZDA, CZEA | 150 | 1395 | 2016 - н.в. |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | CJZA / CYVB / CJZB (.-05.15), CYVA (05.15-.) | 105,110,86 | 1197 | 2012 - 2017 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | CHPB, CZDA / CHPA | 150,140 | 1395 | 2012 - 2020 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | CPWA | 110 | 1395 | 2013 - 2017 |
| SKODA | OCTAVIA III (5E3, NL3, NR3) | CWVA | 110 | 1598 | 2014 - 2020 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | CYVB / CJZA / CJZB, CYVA | 110,105,86 | 1197 | 2012 - 2017 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | CHPA / CHPB, CZDA | 140,150 | 1395 | 2012 - 2020 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | CPWA | 110 | 1395 | 2012 - 2017 |
| SKODA | OCTAVIA III Combi (5E5, 5E6) | CWVA | 110 | 1598 | 2014 - 2017 |
| SKODA | RAPID (NH3, NK3, NK6) | CJZD / CJZC | 110,90 | 1197 | 2015 - 2019 |
| SKODA | RAPID (NH3, NK3, NK6) | CZCA | 125 | 1395 | 2015 - 2022 |
| SKODA | RAPID (NH3, NK3, NK6) | CWVA | 110 | 1598 | 2015 - 2022 |
| SKODA | RAPID Spaceback (NH1) | CJZD / CJZC | 110,90 | 1197 | 2015 - 2019 |
| SKODA | RAPID Spaceback (NH1) | CZCA | 125 | 1395 | 2015 - 2019 |
| SKODA | SUPERB III (3V3) | CZDA, CZEA / CZCA | 150,125 | 1395 | 2015 - 2024 |
| SKODA | SUPERB III (3V3) | CZEA | 150 | 1395 | 2015 - 2024 |
| SKODA | SUPERB III Estate (3V5) | CZDA, CZEA / CZCA | 150,125 | 1395 | 2015 - 2024 |
| SKODA | SUPERB III Estate (3V5) | CZEA | 150 | 1395 | 2015 - 2024 |
| SKODA | YETI (5L) | CYVB | 110 | 1197 | 2015 - 2017 |
| SKODA | YETI (5L) | CZCA | 125 | 1395 | 2015 - 2017 |
| SKODA | YETI (5L) | CZDA | 150 | 1395 | 2015 - 2017 |
| SKODA | YETI (5L) | CWVA | 110 | 1598 | 2014 - 2017 |
| VW | BEETLE (5C1, 5C2) | CYVD | 105 | 1197 | 2014 - 2019 |
| VW | BEETLE (5C1, 5C2) | CZDA | 150 | 1395 | 2014 - 2019 |
| VW | BEETLE Convertible (5C7, 5C8) | CYVD | 105 | 1197 | 2014 - 2019 |
| VW | BEETLE Convertible (5C7, 5C8) | CZDA | 150 | 1395 | 2014 - 2018 |
| VW | CADDY ALLTRACK IV Box Body/MPV (SAA) | CHZG | 102 | 999 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV Box Body/MPV (SAA) | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV Box Body/MPV (SAA) | CPWA | 110 | 1395 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV Box Body/MPV (SAA) | CZCB | 125 | 1395 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV MPV (SAB) | CHZG | 102 | 999 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV MPV (SAB) | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV MPV (SAB) | CPWA | 110 | 1395 | 2015 - 2020 |
| VW | CADDY ALLTRACK IV MPV (SAB) | CZCB | 125 | 1395 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | CHZG, DKRE (11.18-.) | 102 | 999 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | CPWA | 110 | 1395 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | CZCB | 125 | 1395 | 2015 - 2020 |
| VW | CADDY IV Box Body/MPV (SAA, SAH) | CWVA | 110 | 1598 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | CHZG, DKRE (11.18-.) | 102 | 999 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | CYVC | 84 | 1197 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | CPWA | 110 | 1395 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | CZCB | 125 | 1395 | 2015 - 2020 |
| VW | CADDY IV MPV (SAB, SAJ) | CWVA | 110 | 1598 | 2015 - 2020 |
| VW | CC B7 (358) | CZDA | 150 | 1395 | 2015 - 2016 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | CHZD, DKRF | 115 | 999 | 2015 - 2020 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | CYVA / CYVB | 86,110 | 1197 | 2014 - 2017 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | CZDA / CZCA | 150,125 | 1395 | 2014 - 2020 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | CPVB | 125 | 1395 | 2014 - 2017 |
| VW | GOLF SPORTSVAN VII (AM1, AN1) | CWVA | 110 | 1598 | 2014 - 2016 |
| VW | GOLF VI Convertible (517) | CJZA, CYVD | 105 | 1197 | 2013 - 2016 |
| VW | GOLF VI Convertible (517) | CHPB, CZDA / CXSB, CZCA | 150,125 | 1395 | 2013 - 2016 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | CHZK, DKLB / CHZC / CHZD, DKRF | 86,110,115 | 999 | 2015 - 2020 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | CJZA / CJZB, CYVA / CYVB | 105,86,110 | 1197 | 2012 - 2017 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | CUKB, DGEA | 204 | 1395 | 2014 - 2020 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | CPWA, CZBA | 110 | 1395 | 2013 - 2018 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | CMBA, CXSA / CZCA / CHPA, CPTA / CZDA, CZEA, DGXA | 122,125,140,150 | 1395 | 2012 - 2021 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | CPVA / CPVB | 122,125 | 1395 | 2012 - 2018 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | DADA, DPCA | 150 | 1498 | 2017 - 2020 |
| VW | GOLF VII (5G1, BQ1, BE1, BE2) | CWVA | 110 | 1598 | 2014 - 2017 |
| VW | GOLF VII Variant (BA5, BV5) | CHZD, DKRF / CHZC / CHZK (01.17-07.18), DKLB (07.18-.) | 115,110,86 | 999 | 2015 - 2020 |
| VW | GOLF VII Variant (BA5, BV5) | CYVB / CJZA / CJZB, CYVA | 110,105,86 | 1197 | 2013 - 2020 |
| VW | GOLF VII Variant (BA5, BV5) | CPWA | 110 | 1395 | 2013 - 2018 |
| VW | GOLF VII Variant (BA5, BV5) | CXSA / CHPB, CZDA, DGXA / CHPA / CZCA, CZDD | 122,150,140,125 | 1395 | 2013 - 2021 |
| VW | GOLF VII Variant (BA5, BV5) | CPVB / CPVA | 125,122 | 1395 | 2013 - 2017 |
| VW | GOLF VII Variant (BA5, BV5) | DADA, DPCA | 150 | 1498 | 2017 - 2020 |
| VW | GOLF VII Variant (BA5, BV5) | CWVA | 110 | 1598 | 2014 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | CZCA / CZDA, CZTA | 125,150 | 1395 | 2014 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | CNLA, CRJA | 170 | 1395 | 2011 - 2017 |
| VW | LOAD UP! (121, 122, BL1, BL2) | CHYA, DAFA | 60 | 999 | 2012 - 2019 |
| VW | LOAD UP! (121, 122, BL1, BL2) | CPGA | 68 | 999 | 2012 - 2020 |
| VW | PASSAT ALLTRACK B8 Variant (3G5, CB5) | CZEA | 150 | 1395 | 2015 - 2018 |
| VW | PASSAT B8 (3G2, CB2) | CUKC, DGEB | 218 | 1395 | 2015 - 2024 |
| VW | PASSAT B8 (3G2, CB2) | CZDA, CZEA / CZCA | 150,125 | 1395 | 2014 - 2024 |
| VW | PASSAT B8 (3G2, CB2) | CZEA | 150 | 1395 | 2015 - 2018 |
| VW | PASSAT B8 Variant (3G5, CB5) | CUKC, DGEB | 218 | 1395 | 2015 - 2024 |
| VW | PASSAT B8 Variant (3G5, CB5) | CZDA, CZEA / CZCA | 150,125 | 1395 | 2014 - 2024 |
| VW | PASSAT B8 Variant (3G5, CB5) | CZEA | 150 | 1395 | 2015 - 2018 |
| VW | POLO V (6R1, 6C1) | CHYA / CHYB | 60,75 | 999 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | CHZC / CHZB | 110,95 | 999 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | CJZD | 110 | 1197 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | CJZC | 90 | 1197 | 2014 - 2017 |
| VW | POLO V (6R1, 6C1) | CPTA / CZEA | 140,150 | 1395 | 2012 - 2017 |
| VW | POLO V (6R1, 6C1) | CWVA / CWVB | 110,90 | 1598 | 2014 - 2017 |
| VW | SCIROCCO III (137, 138) | CZDA / CXSB, CZCA | 150,125 | 1395 | 2013 - 2017 |
| VW | SHARAN (7N1, 7N2) | CZDA, DJKA | 150 | 1395 | 2015 - 2022 |
| VW | TIGUAN (5N_) | CZDB / CZDA | 125,150 | 1395 | 2015 - 2018 |
| VW | TIGUAN (AD1, AX1) | CZCA (.-12.20), CZDB (12.20-.) / CZDA (05.16-.), CZEA (05.16-07.19), DJVA (05.17-07.18) | 125,150 | 1395 | 2016 - 2024 |
| VW | TIGUAN (AD1, AX1) | CZDA (06.16-07.18), CZEA (05.16-07.18) | 150 | 1395 | 2016 - 2018 |
| VW | TOURAN (5T1) | CYVB | 110 | 1197 | 2015 - 2018 |
| VW | TOURAN (5T1) | CZDA | 150 | 1395 | 2015 - 2022 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) | CHYB, CWRA / CHYA, CHYE, DAFA | 75,60 | 999 | 2011 - 2020 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) | CPGA | 68 | 999 | 2012 - 2023 |
| VW | UP! (121, 122, BL1, BL2, BL3, 123) | CHZA, DKLC | 90 | 999 | 2016 - 2019 |
×
