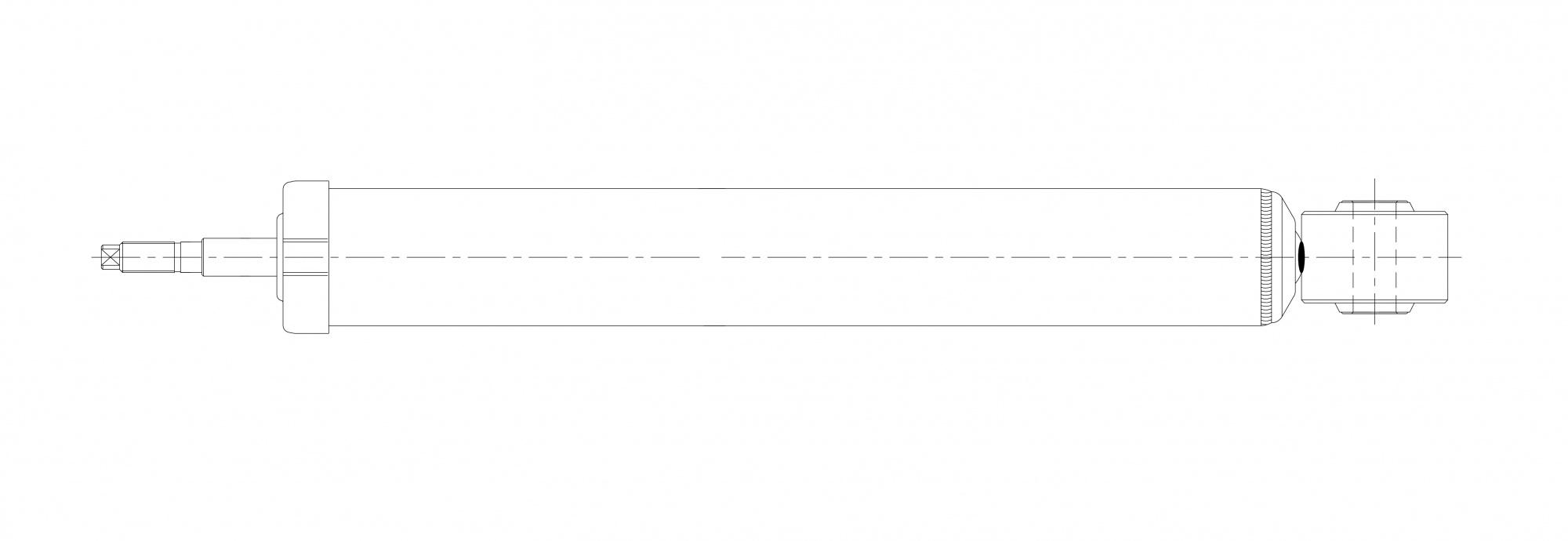

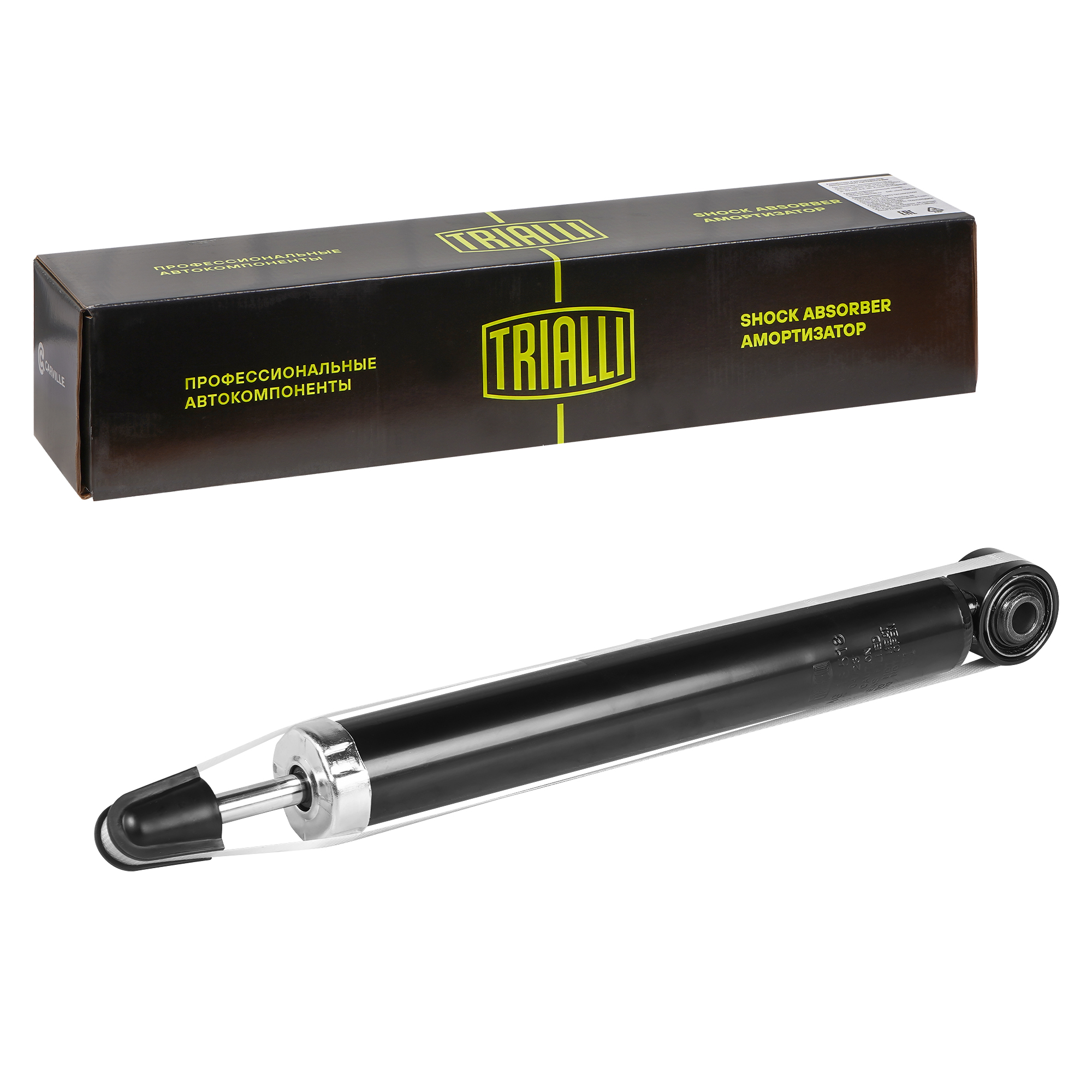

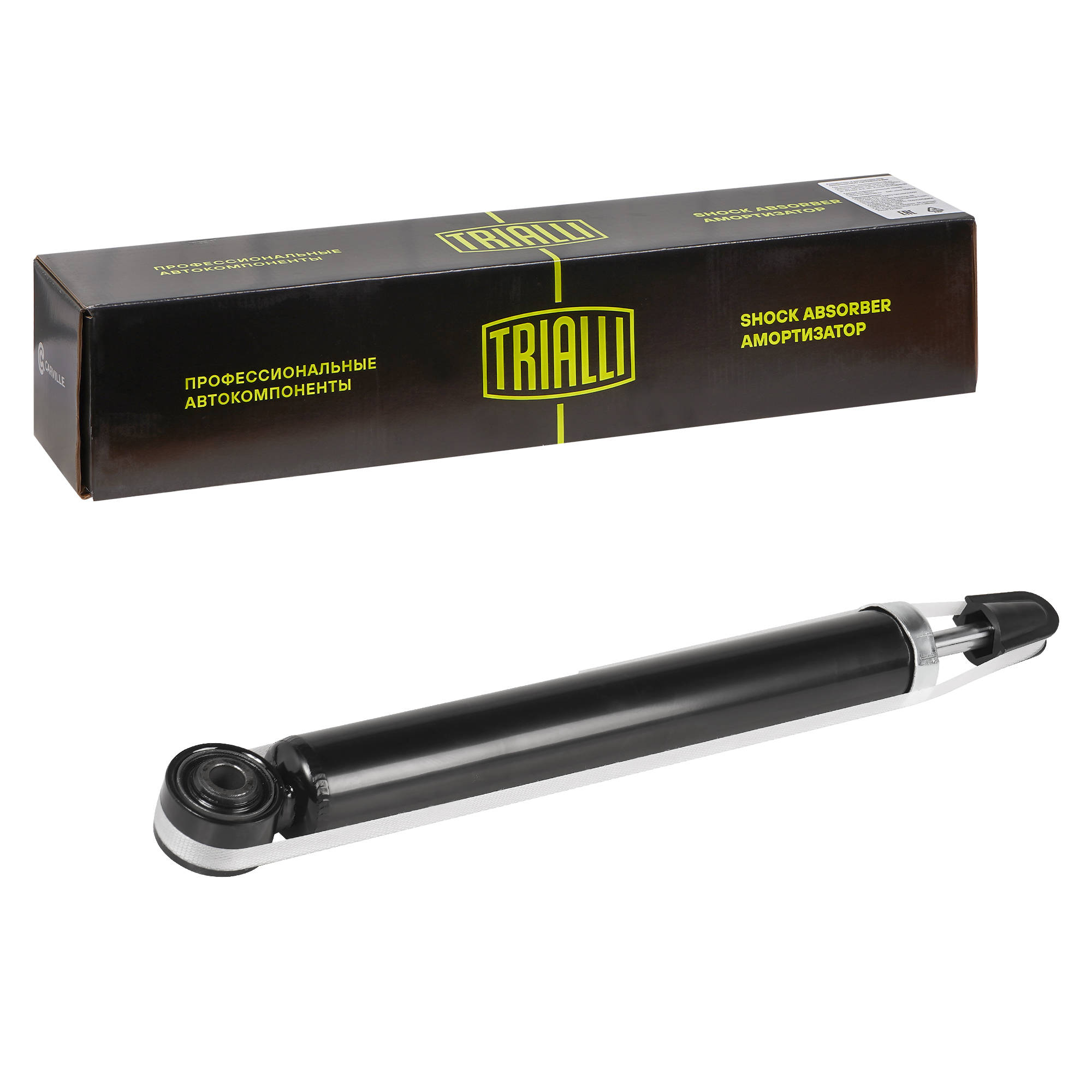

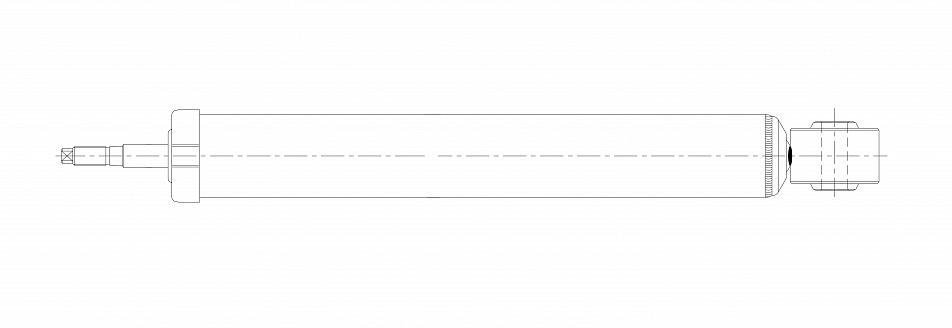

Амортизатор для автомобилей Skoda Octavia A5 (04-) усиленный задний
Характеристики
| Ход штока, мм: | 215 |
| Ось (сторона установки): | Сзади, слева/справа |
| Тип амортизатора: | Двухтрубный, гидравлический |
| Вид амортизатора: | Масляный с газовым подпором низкого давления |
| Тип верхнего крепления: | Шток |
ОЕМ-номер
1K0513029ET
1K0513029ES
1K0513029EQ
1K0513029GA
1K0513029DA
1K0513029DB
Основные характеристики
Ход штока, мм
215
Ось (сторона установки)
Сзади, слева/справа
Тип амортизатора
Двухтрубный, гидравлический
Вид амортизатора
Масляный с газовым подпором низкого давления
Тип верхнего крепления
Шток
Тип нижнего крепления
Проушина/сайлентблок
Диаметр корпуса, мм
45
Диаметр штока, мм
12,5
Размер резьбы штока
M10x1
Дополнительная информация
Для а/м с пакетом для плохих дорог
Гарантийный срок
2 года / 60 000 км
Присоединительная длина 1, мм
363±3
Присоединительная длина 2, мм
578±3
Товарная линейка
BLACK
Количество на автомобиль
2
Комплектация
Амортизатор задний
1 шт
Шарнир резинометаллический
1 шт
Гайка крепежная
1 шт
| Марка | Модель | Модификация | Код двигателя | Мощность, лс | Объём двигателя | Год выпуска |
|---|---|---|---|---|---|---|
| AUDI | A3 (8P1) | 1.6 | BGU (05.03-05.05), BSE (06.05-.), BSF (06.05-.), CCSA (05.08-.) | 102 | 1595 | 2003 - 2012 |
| AUDI | A3 (8P1) | 1.6 FSI | BAG (08.03-.), BLF, BLP (06.04-.) | 115 | 1598 | 2003 - 2007 |
| AUDI | A3 (8P1) | 1.6 TDI | CAYC | 105 | 1598 | 2009 - 2012 |
| AUDI | A3 (8P1) | 1.8 TFSI | BYT, BZB, CDAA | 160 | 1798 | 2006 - 2012 |
| AUDI | A3 (8P1) | 1.9 TDI | BKC (05.03-.), BLS, BXE | 105 | 1896 | 2003 - 2010 |
| AUDI | A3 (8P1) | 2.0 FSI | AXW (05.03-.), BLR, BLX (06.04-.), BLY (06.04-.), BMB (01.04-.), BVY, BVZ | 150 | 1984 | 2003 - 2008 |
| AUDI | A3 (8P1) | 2.0 TDI 16V | BKD (05.03-.), CBAB, CBEA, CFFB, CLJA | 140 | 1968 | 2003 - 2012 |
| AUDI | A3 (8P1) | 2.0 TFSI | AXX, BWA, CAWB, CCZA | 200 | 1984 | 2004 - 2012 |
| AUDI | A3 Sportback (8PA) | 1.4 TFSI | CAXC, CMSA | 125 | 1390 | 2007 - 2013 |
| AUDI | A3 Sportback (8PA) | 1.8 FSI | BPU | 150 | 1781 | 2006 - 2008 |
| SEAT | ALHAMBRA (710, 711) | 1.4 TSI | CZDA, DJKA / CAVA, CNWB, CTHA | 150 | 1395,1390 | 2010 - 2022 |
| SEAT | ALHAMBRA (710, 711) | 1.8 TSI | CDAA | 160 | 1798 | 2012 - 2015 |
| SEAT | ALHAMBRA (710, 711) | 2.0 TDI | CUWA, DFMA / CFFA / CFFB / CFGB / CFGC, DLUB / CFFE, CUVA, DFLD, DLTC / CUVC, DFLA, DLTA | 184,136,140,170,177,115,150 | 1968 | 2010 - 2022 |
| SEAT | ALHAMBRA (710, 711) | 2.0 TDI 4Drive | CFFB / CUVC, DFLA, DLTA / DFMA | 140,150,184 | 1968 | 2011 - 2022 |
| SEAT | ALHAMBRA (710, 711) | 2.0 TSI | CCZA / DEDA | 200,220 | 1984 | 2010 - 2022 |
| SEAT | ALTEA (5P1) | 1.2 TSI | CBZB | 105 | 1197 | 2010 - 2015 |
| SEAT | ALTEA (5P1) | 1.4 16V | BXW, CGGB | 86 | 1390 | 2006 - 2011 |
| SEAT | ALTEA (5P1) | 1.4 TSI | CAXC | 125 | 1390 | 2007 - 2015 |
| SEAT | ALTEA (5P1) | 1.6 | BGU (06.04-.), BSE, BSF, CCSA | 102 | 1595 | 2004 - 2010 |
| SEAT | ALTEA (5P1) | 1.6 LPG | CHGA | 102 | 1595 | 2009 - 2013 |
| SEAT | ALTEA (5P1) | 1.6 TDI | CAYC / CAYB | 105,90 | 1598 | 2009 - 2015 |
| SEAT | ALTEA (5P1) | 1.8 TFSI | BYT, BZB, CDAA | 160 | 1798 | 2007 - 2015 |
| SEAT | ALTEA (5P1) | 1.9 TDI | BJB (06.04-.), BKC (06.04-.), BLS, BXE / BXF | 105,90 | 1896 | 2004 - 2010 |
| SEAT | ALTEA (5P1) | 2.0 FSI | BLR (06.04-.), BLY (06.04-.), BVY, BVZ | 150 | 1984 | 2004 - 2009 |
| SEAT | ALTEA (5P1) | 2.0 TDI | BMN, CEGA / BMM / AZV | 170,140,136 | 1968 | 2004 - 2010 |
| SEAT | ALTEA (5P1) | 2.0 TDI 16V | BKD (06.04-.), CFHC | 140 | 1968 | 2004 - 2015 |
| SEAT | ALTEA (5P1) | 2.0 TFSI | BWA | 200 | 1984 | 2006 - 2009 |
| SEAT | ALTEA (5P1) | 1.6 Multifuel | CMXA | 102 | 1595 | 2010 - 2011 |
| SEAT | ALTEA XL (5P5, 5P8) | 1.2 TSI | CBZB | 105 | 1197 | 2010 - 2015 |
| SEAT | ALTEA XL (5P5, 5P8) | 1.4 16V | BXW, CGGB | 86 | 1390 | 2006 - 2013 |
| SEAT | ALTEA XL (5P5, 5P8) | 1.4 TSI | CAXC | 125 | 1390 | 2007 - 2015 |
| SEAT | ALTEA XL (5P5, 5P8) | 1.6 | BGU, BSE, BSF, CCSA | 102 | 1595 | 2006 - 2010 |
| SEAT | ALTEA XL (5P5, 5P8) | 1.6 LPG | CHGA | 102 | 1595 | 2009 - 2013 |
| SEAT | ALTEA XL (5P5, 5P8) | 1.6 TDI | CAYC / CAYB | 105,90 | 1598 | 2009 - 2015 |
| SEAT | ALTEA XL (5P5, 5P8) | 1.8 TFSI | BYT, BZB, CDAA | 160 | 1798 | 2007 - 2015 |
| SEAT | ALTEA XL (5P5, 5P8) | 1.9 TDI | BKC, BLS, BXE / BXF | 105,90 | 1896 | 2006 - 2010 |
| SEAT | ALTEA XL (5P5, 5P8) | 1.9 TDI 4x4 | BLS | 105 | 1896 | 2009 - 2010 |
| SEAT | ALTEA XL (5P5, 5P8) | 2.0 FSI | BVY, BVZ | 150 | 1984 | 2006 - 2009 |
| SEAT | ALTEA XL (5P5, 5P8) | 2.0 TDI | BMN, CEGA / BMM | 170,140 | 1968 | 2006 - 2013 |
| SEAT | ALTEA XL (5P5, 5P8) | 2.0 TDI 16V | BKD, CFHC | 140 | 1968 | 2006 - 2015 |
| SEAT | ALTEA XL (5P5, 5P8) | 2.0 TDI 16V 4x4 | CFHC | 140 | 1968 | 2010 - 2015 |
| SEAT | ALTEA XL (5P5, 5P8) | 2.0 TDI 4x4 | BMM / BMN, CEGA, CFJA | 140,170 | 1968 | 2007 - 2013 |
| SEAT | ALTEA XL (5P5, 5P8) | 2.0 TFSI | BWA | 200 | 1984 | 2006 - 2009 |
| SEAT | ALTEA XL (5P5, 5P8) | 2.0 TFSI 4x4 | CCZB / BWA | 211,200 | 1984 | 2007 - 2015 |
| SEAT | ALTEA XL (5P5, 5P8) | 1.6 Multifuel | BSE, BSF, CCSA, CMXA | 102 | 1595 | 2006 - 2010 |
| SEAT | LEON (1P1) | 1.2 TSI | CBZB | 105 | 1197 | 2010 - 2012 |
| SEAT | LEON (1P1) | 1.4 16V | BXW, CGGB | 86 | 1390 | 2006 - 2012 |
| SEAT | LEON (1P1) | 1.4 TSI | CAXC | 125 | 1390 | 2007 - 2012 |
| SEAT | LEON (1P1) | 1.6 | BSE, BSF, CCSA | 102 | 1595 | 2005 - 2012 |
| SEAT | LEON (1P1) | 1.6 LPG | CHGA | 102 | 1595 | 2009 - 2012 |
| SEAT | LEON (1P1) | 1.6 TDI | CAYB / CAYC | 90,105 | 1598 | 2010 - 2012 |
| SEAT | LEON (1P1) | 1.8 TSI | BZB, CDAA | 160 | 1798 | 2007 - 2012 |
| SEAT | LEON (1P1) | 1.9 TDI | BKC, BLS, BXE / BXF | 105,90 | 1896 | 2005 - 2010 |
| SEAT | LEON (1P1) | 2.0 Cupra R | CDLA | 265 | 1984 | 2009 - 2012 |
| SEAT | LEON (1P1) | 2.0 FSI | BLR, BLY, BVY, BVZ | 150 | 1984 | 2005 - 2010 |
| SEAT | LEON (1P1) | 2.0 TDI | AZV / BMM / BMN, CEGA, CFJA | 136,140,170 | 1968 | 2005 - 2012 |
| SEAT | LEON (1P1) | 2.0 TDI 16V | BKD, CFHC, CLCB | 140 | 1968 | 2005 - 2012 |
| SEAT | LEON (1P1) | 2.0 TFSI | BWA / CCZB / BWJ, CDLD | 200,185,211,240 | 1984 | 2005 - 2012 |
| SEAT | LEON (1P1) | 1.6 MultiFuel | BSE, CCSA, CMXA | 102 | 1595 | 2005 - 2013 |
| SEAT | TOLEDO III (5P2) | 1.4 16V | BXW | 86 | 1390 | 2006 - 2009 |
| SEAT | TOLEDO III (5P2) | 1.4 TSI | CAXC | 125 | 1390 | 2007 - 2009 |
| SEAT | TOLEDO III (5P2) | 1.6 | BGU, BSE, BSF, CCSA | 102 | 1595 | 2004 - 2009 |
| SEAT | TOLEDO III (5P2) | 1.8 TFSI | BYT, BZB, CDAA | 160 | 1798 | 2007 - 2009 |
| SEAT | TOLEDO III (5P2) | 1.9 TDI | BJB, BKC, BLS, BXE | 105 | 1896 | 2004 - 2009 |
| SEAT | TOLEDO III (5P2) | 2.0 FSI | BLR, BLY, BVY, BVZ | 150 | 1984 | 2004 - 2009 |
| SEAT | TOLEDO III (5P2) | 2.0 TDI | BMN, CEGA / BMM / AZV | 170,140,136 | 1968 | 2004 - 2009 |
| SEAT | TOLEDO III (5P2) | 2.0 TDI 16V | BKD | 140 | 1968 | 2004 - 2009 |
| SEAT | TOLEDO III (5P2) | 2.0 TFSI | BWA | 200 | 1984 | 2005 - 2009 |
| SKODA | OCTAVIA II (1Z3) | 1.2 TSI | CBZB | 105 | 1197 | 2010 - 2013 |
| SKODA | OCTAVIA II (1Z3) | 1.4 | BUD, CGGA / BCA | 80,75 | 1390 | 2004 - 2013 |
| SKODA | OCTAVIA II (1Z3) | 1.4 TSI | CAXA | 122 | 1390 | 2008 - 2013 |
| SKODA | OCTAVIA II (1Z3) | 1.6 | BGU, BSE, BSF, CCSA | 102 | 1595 | 2004 - 2013 |
| SKODA | OCTAVIA II (1Z3) | 1.6 FSI | BLF | 115 | 1598 | 2004 - 2008 |
| SKODA | OCTAVIA II (1Z3) | 1.6 LPG | BSE, CHGA | 102 | 1595 | 2009 - 2012 |
| SKODA | OCTAVIA II (1Z3) | 1.6 MultiFuel | CCSA, CMXA | 102 | 1595 | 2008 - 2013 |
| SKODA | OCTAVIA II (1Z3) | 1.6 TDI | CAYC | 105 | 1598 | 2009 - 2013 |
| SKODA | OCTAVIA II (1Z3) | 1.8 TSI | BZB, CDAA / CDAB | 160,152 | 1798 | 2007 - 2013 |
| SKODA | OCTAVIA II (1Z3) | 1.9 TDI | BJB, BKC, BLS, BXE | 105 | 1896 | 2004 - 2010 |
| SKODA | OCTAVIA II (1Z3) | 2.0 FSI | BLR, BLY, BVY, BVZ | 150 | 1984 | 2004 - 2008 |
| SKODA | OCTAVIA II (1Z3) | 2.0 TFSI | BWA, CCZA | 200 | 1984 | 2005 - 2013 |
| SKODA | OCTAVIA II (1Z3) | 2.0 TDI | CFHF, CLCA / BMM / AZV | 110,140,136 | 1968 | 2004 - 2013 |
| SKODA | OCTAVIA II (1Z3) | 2.0 TDI 16V | BKD, CFHC, CLCB | 140 | 1968 | 2004 - 2013 |
| SKODA | OCTAVIA II (1Z3) | 2.0 TDI RS | BMN, CEGA | 170 | 1968 | 2006 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.2 TSI | CBZB | 105 | 1197 | 2010 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.4 | BCA / BUD, CGGA | 75,80 | 1390 | 2004 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.4 TSI | CAXA | 122 | 1390 | 2008 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.6 | BGU, BSE, BSF, CCSA | 102 | 1595 | 2004 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.6 FSI | BLF | 115 | 1598 | 2004 - 2008 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.6 LPG | CHGA | 102 | 1595 | 2009 - 2012 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.6 MultiFuel | CCSA, CMXA | 102 | 1595 | 2008 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.6 TDI | CAYC | 105 | 1598 | 2009 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.6 TDI 4x4 | CAYC | 105 | 1598 | 2009 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.8 TSI | BZB, CDAA / CDAB | 160,152 | 1798 | 2007 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.8 TSI 4x4 | CDAB / CDAA | 152,160 | 1798 | 2008 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.9 TDI | BJB, BKC, BLS, BXE | 105 | 1896 | 2004 - 2010 |
| SKODA | OCTAVIA II Combi (1Z5) | 1.9 TDI 4x4 | BKC, BLS, BXE | 105 | 1896 | 2004 - 2010 |
| SKODA | OCTAVIA II Combi (1Z5) | 2.0 FSI | BLR, BLY, BVY, BVZ | 150 | 1984 | 2004 - 2008 |
| SKODA | OCTAVIA II Combi (1Z5) | 2.0 FSI 4x4 | BLX, BLY, BVX | 150 | 1984 | 2004 - 2009 |
| SKODA | OCTAVIA II Combi (1Z5) | 2.0 TFSI | BWA, CCZA | 200 | 1984 | 2005 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 2.0 TDI | BMM / CFHF, CLCA | 140,110 | 1968 | 2005 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 2.0 TDI 16V | BKD, CFHC, CLCB / AZV | 140,136 | 1968 | 2004 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 2.0 TDI 16V 4x4 | BKD, CFHC, CLCB | 140 | 1968 | 2010 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | 2.0 TDI 4x4 | BMM / CFHF | 140,110 | 1968 | 2006 - 2013 |
| SKODA | SUPERB II (3T4) | 1.4 TSI | CAXC | 125 | 1390 | 2008 - 2015 |
| SKODA | SUPERB II (3T4) | 1.6 TDI | CAYC | 105 | 1598 | 2010 - 2015 |
| SKODA | SUPERB II (3T4) | 1.8 TSI | BZB, CDAA / CDAB | 160,152 | 1798 | 2008 - 2015 |
| SKODA | SUPERB II (3T4) | 1.9 TDI | BLS, BXE | 105 | 1896 | 2008 - 2010 |
| SKODA | SUPERB II (3T4) | 2.0 TDI | CBBB, CFGB / BMP | 170,140 | 1968 | 2008 - 2015 |
| SKODA | SUPERB II (3T4) | 2.0 TDI 16V | BKD, CFFB, CLJA | 140 | 1968 | 2009 - 2015 |
| SKODA | SUPERB II (3T4) | 2.0 TDI 16V 4x4 | CFFB | 140 | 1968 | 2010 - 2015 |
| SKODA | SUPERB II (3T4) | 2.0 TDI 4x4 | CBBB, CFGB | 170 | 1968 | 2008 - 2015 |
| SKODA | SUPERB II (3T4) | 2.0 TFSI | CCZA | 200 | 1984 | 2010 - 2015 |
| SKODA | SUPERB II (3T4) | 3.6 FSI 4x4 | CDVA | 260 | 3597 | 2008 - 2015 |
| SKODA | SUPERB II Estate (3T5) | 1.6 TDI | CAYC | 105 | 1598 | 2010 - 2015 |
| SKODA | SUPERB II Estate (3T5) | 1.8 TSI | CDAB | 152 | 1798 | 2009 - 2015 |
| SKODA | SUPERB II Estate (3T5) | 1.9 TDI | BLS, BXE | 105 | 1896 | 2009 - 2010 |
| SKODA | SUPERB II Estate (3T5) | 2.0 TDI | BMP / CBBB, CFGB | 140,170 | 1968 | 2009 - 2015 |
| SKODA | SUPERB II Estate (3T5) | 2.0 TDI 16V | BKD, CFFB, CLJA | 140 | 1968 | 2009 - 2015 |
| SKODA | SUPERB II Estate (3T5) | 2.0 TDI 16V 4x4 | CFFB | 140 | 1968 | 2010 - 2015 |
| SKODA | SUPERB II Estate (3T5) | 2.0 TDI 4x4 | CBBB, CFGB | 170 | 1968 | 2009 - 2015 |
| SKODA | SUPERB II Estate (3T5) | 2.0 TFSI | CCZA | 200 | 1984 | 2010 - 2015 |
| SKODA | SUPERB II Estate (3T5) | 3.6 V6 4x4 | CDVA | 260 | 3597 | 2009 - 2015 |
| SKODA | YETI (5L) | 1.2 TSI | CBZB / CYVB | 105,110 | 1197 | 2009 - 2017 |
| SKODA | YETI (5L) | 1.4 TSI | CAXA / CZCA | 122,125 | 1390,1395 | 2010 - 2017 |
| SKODA | YETI (5L) | 1.4 TSI 4x4 | CZDA | 150 | 1395 | 2015 - 2017 |
| SKODA | YETI (5L) | 1.6 | CWVA | 110 | 1598 | 2014 - 2017 |
| SKODA | YETI (5L) | 1.6 TDI | CAYC | 105 | 1598 | 2010 - 2015 |
| SKODA | YETI (5L) | 1.8 TSI 4x4 | CDAA / CDAB | 160,152 | 1798 | 2009 - 2017 |
| SKODA | YETI (5L) | 2.0 TDI | CUUB, DFSB / CFHA, CLCA, CUUA, DFSA / CFHC, CLCB | 150,110,140 | 1968 | 2009 - 2017 |
| SKODA | YETI (5L) | 2.0 TDI 4x4 | CUUB, DFSB / CBDB, CFHC, CLCB / CEGA, CFJA / CFHF, CUUA, DFSA | 150,140,170,110 | 1968 | 2009 - 2017 |
| VW | GOLF PLUS V (5M1, 521) | 1.2 TSI | CBZB / CBZA | 105,86 | 1197 | 2009 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | 1.4 16V | BCA / BUD, CGGA | 75,80 | 1390 | 2005 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | 1.4 FSI | BLN | 90 | 1390 | 2005 - 2006 |
| VW | GOLF PLUS V (5M1, 521) | 1.4 TSI | BMY / CAVD, CNWA, CTHD / CAXA / BLG | 140,160,122,170 | 1390 | 2006 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | 1.6 | BSE, BSF, CCSA, CMXA | 102 | 1595 | 2005 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | 1.6 BiFuel | CHGA | 102 | 1595 | 2009 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | 1.6 FSI | BLF | 115 | 1598 | 2004 - 2008 |
| VW | GOLF PLUS V (5M1, 521) | 1.6 MultiFuel | CCSA, CMXA | 102 | 1595 | 2007 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | 1.6 TDI | CAYC / CAYB | 105,90 | 1598 | 2009 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | 1.9 TDI | BRU, BXF, BXJ / BKC, BLS, BXE | 90,105 | 1896 | 2005 - 2009 |
| VW | GOLF PLUS V (5M1, 521) | 2.0 FSI | BLR, BLY, BVY, BVZ | 150 | 1984 | 2005 - 2008 |
| VW | GOLF PLUS V (5M1, 521) | 2.0 TDI | BEE / BMM / AZV, CBDA, CFHB / CBDC, CLCA | 131,140,136,110 | 1968 | 2005 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | 2.0 TDI 16V | BKD, CBDB, CFHC | 140 | 1968 | 2005 - 2013 |
| VW | GOLF V (1K1) | 1.4 16V | BCA (10.03-.) / BUD | 75,80 | 1390 | 2003 - 2008 |
| VW | GOLF V (1K1) | 1.4 FSI | BKG (10.03-.), BLN | 90 | 1390 | 2003 - 2006 |
| VW | GOLF V (1K1) | 1.4 TSI | CAXA / BLG / BMY | 122,170,140 | 1390 | 2005 - 2008 |
| VW | GOLF V (1K1) | 1.6 | BGU (01.04-.), BSE, BSF, CCSA | 102 | 1595 | 2004 - 2008 |
| VW | GOLF V (1K1) | 1.6 FSI | BAG (10.03-.), BLF, BLP | 115 | 1598 | 2003 - 2008 |
| VW | GOLF V (1K1) | 1.9 TDI | BKC (10.03-.), BLS, BXE / BRU (05.04-.), BXF, BXJ | 105,90 | 1896 | 2003 - 2008 |
| VW | GOLF V (1K1) | 2.0 | BEV, BHY | 116 | 1984 | 2005 - 2008 |
| VW | GOLF V (1K1) | 2.0 FSI | AXW (01.04-.), BLR, BLX, BLY, BVX, BVY, BVZ | 150 | 1984 | 2004 - 2008 |
| VW | GOLF V (1K1) | 2.0 FSI 4motion | BLX, BVX | 150 | 1984 | 2004 - 2008 |
| VW | GOLF V (1K1) | 2.0 GTI | AXX, BPY, BWA, CAWB, CBFA, CCTA / BYD | 200,230 | 1984 | 2004 - 2009 |
| VW | GOLF V (1K1) | 2.0 SDI | BDK (01.04-.) | 75 | 1968 | 2004 - 2008 |
| VW | GOLF V (1K1) | 2.0 TDI | BMM / BMN / AZV | 140,170,136 | 1968 | 2003 - 2008 |
| VW | GOLF V (1K1) | 2.0 TDI 16V | BKD (10.03-.) | 140 | 1968 | 2003 - 2008 |
| VW | GOLF V (1K1) | 3.2 R32 4motion | BUB, CBRA | 250 | 3189 | 2005 - 2008 |
| VW | GOLF V Variant (1K5) | 1.4 | BUD | 80 | 1390 | 2007 - 2009 |
| VW | GOLF V Variant (1K5) | 1.4 TSI | CAXA / BLG / BMY / CAVD | 122,170,140,160 | 1390 | 2007 - 2009 |
| VW | GOLF V Variant (1K5) | 1.6 | BSE, BSF, CCSA | 102 | 1595 | 2007 - 2009 |
| VW | GOLF V Variant (1K5) | 1.9 TDI | BLS, BXE | 105 | 1896 | 2007 - 2009 |
| VW | GOLF V Variant (1K5) | 2.0 TFSI | BWA, CAWB, CBFA, CCTA | 200 | 1984 | 2007 - 2009 |
| VW | GOLF V Variant (1K5) | 2.0 TDI | AZV, CBDA / BMM | 136,140 | 1968 | 2007 - 2009 |
| VW | GOLF V Variant (1K5) | 2.0 TDI 16V | BKD, CBDB | 140 | 1968 | 2007 - 2009 |
| VW | GOLF VI (5K1) | 1.2 TSI | CBZB / CBZA | 105,86 | 1197 | 2008 - 2012 |
| VW | GOLF VI (5K1) | 1.4 | CGGA | 80 | 1390 | 2008 - 2012 |
| VW | GOLF VI (5K1) | 1.4 TSI | CAXA / CAVD, CNWA, CTHD | 122,160 | 1390 | 2008 - 2012 |
| VW | GOLF VI (5K1) | 1.6 | BSE, BSF, CCSA, CMXA | 102 | 1595 | 2008 - 2012 |
| VW | GOLF VI (5K1) | 1.6 BiFuel | CHGA | 102 | 1595 | 2009 - 2012 |
| VW | GOLF VI (5K1) | 1.6 MultiFuel | CCSA, CMXA | 102 | 1595 | 2008 - 2012 |
| VW | GOLF VI (5K1) | 1.6 TDI | CAYC / CAYB | 105,90 | 1598 | 2009 - 2012 |
| VW | GOLF VI (5K1) | 1.8 TSI | CDAA | 160 | 1798 | 2009 - 2011 |
| VW | GOLF VI (5K1) | 2.0 GTi | CBFA, CCTA / CDLG / CCZB | 200,235,210 | 1984 | 2009 - 2013 |
| VW | GOLF VI (5K1) | 2.0 R 4motion | CDLC, CRZA | 256 | 1984 | 2009 - 2013 |
| VW | GOLF VI (5K1) | 2.0 TDI | CBBB, CFGB / CBDC, CLCA / CBAB, CFFB, CJAA / CBAA, CFFA | 170,110,140,136 | 1968 | 2008 - 2013 |
| VW | GOLF VI (5K1) | 2.0 TDI 4motion | CBAB, CFFB | 140 | 1968 | 2009 - 2012 |
| VW | GOLF VI Convertible (517) | 1.2 TSI | CBZB | 105 | 1197 | 2011 - 2016 |
| VW | GOLF VI Convertible (517) | 1.4 TSI | CAVD, CNWA, CTHD, CTKA | 160 | 1390 | 2011 - 2016 |
| VW | GOLF VI Convertible (517) | 1.6 TDI | CAYC | 105 | 1598 | 2011 - 2016 |
| VW | GOLF VI Variant (AJ5) | 1.2 TSI | CBZB / CBZA | 105,86 | 1197 | 2009 - 2013 |
| VW | GOLF VI Variant (AJ5) | 1.4 | CGGA | 80 | 1390 | 2009 - 2013 |
| VW | GOLF VI Variant (AJ5) | 1.4 TSI | CAVD, CNWA, CTHD, CTKA / CAXA | 160,122 | 1390 | 2009 - 2013 |
| VW | GOLF VI Variant (AJ5) | 1.6 | BSE, BSF, CCSA | 102 | 1595 | 2009 - 2013 |
| VW | GOLF VI Variant (AJ5) | 1.6 TDI | CAYB / CAYC | 90,105 | 1598 | 2009 - 2013 |
| VW | GOLF VI Variant (AJ5) | 1.6 TDI 4motion | CAYC | 105 | 1598 | 2009 - 2013 |
| VW | GOLF VI Variant (AJ5) | 2.0 TDI | CLCA / CBDB, CFHC, CJAA | 110,140 | 1968 | 2009 - 2013 |
| VW | GOLF VI Variant (AJ5) | 2.0 TFSI | CCZA | 200 | 1984 | 2009 - 2013 |
| VW | GOLF VII Variant (BA5, BV5) | 1.2 TSI | CJZA | 105 | 1197 | 2013 - 2020 |
| VW | JETTA III (1K2) | 1.4 TSI | BMY / BLG / CAVD / CAXA | 140,170,160,122 | 1390 | 2006 - 2010 |
| VW | JETTA III (1K2) | 1.6 | BGU, BSE, BSF, CCSA | 102 | 1595 | 2004 - 2010 |
| VW | JETTA III (1K2) | 1.6 FSI | BLF | 115 | 1598 | 2005 - 2010 |
| VW | JETTA III (1K2) | 2.0 FSI | BLR, BLX, BLY, BVY, BVZ | 150 | 1984 | 2005 - 2010 |
| VW | JETTA III (1K2) | 2.0 TDI | AZV, CBDA / BMN, CEGA / BMM | 136,170,140 | 1968 | 2005 - 2010 |
| VW | JETTA III (1K2) | 2.0 TDI 16V | BKD, CBDB, CBEA, CJAA | 140 | 1968 | 2005 - 2010 |
| VW | JETTA III (1K2) | 2.0 TFSI | AXX, BPY, BWA, CAWB, CBFA, CCTA | 200 | 1984 | 2005 - 2010 |
| VW | JETTA III (1K2) | 2.5 | BGP, BGQ, BTK | 150 | 2480 | 2006 - 2010 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.2 TSI | CBZB | 105 | 1197 | 2010 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.2 TSI 16V | CYVD | 105 | 1197 | 2014 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.4 TSI | CZCA / CAVA, CTHA / CZDA, CZTA / CAVD, CTHD / CAXA, CMSB | 125,150,160,122 | 1395,1390 | 2011 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.4 TSI Hybrid | CNLA, CRJA | 170 | 1395 | 2011 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.6 | CWVA / CFNA, CLRA / CFNB | 110,105,86 | 1598 | 2011 - 2018 |
| VW | JETTA IV (162, 163, AV3, AV2) | 2.0 | CBPA, CKJA | 115 | 1984 | 2010 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | 2.0 TDI | CUUB, CVCA, DELA, DGMA / CLCA, CUUA (08.14-12.17) / CFFB, CFHC, CJAA, CLCB | 150,110,140 | 1968 | 2010 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | 2.0 TSI | CPLA, CPPA | 211 | 1984 | 2012 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | 2.0 TFSI | CBFA, CCTA, CCZA | 200 | 1984 | 2010 - 2014 |
| VW | JETTA IV (162, 163, AV3, AV2) | 2.5 | CBTA, CBUA, CCCA | 170 | 2480 | 2010 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | 1.6 MPi | CWVB | 90 | 1598 | 2015 - 2018 |
| VW | PASSAT B5.5 Variant (3B6) | 1.6 | ALZ | 102 | 1595 | 2000 - 2005 |
| VW | PASSAT B6 (3C2) | 1.4 TSI | CAXA | 122 | 1390 | 2007 - 2010 |
| VW | PASSAT B6 (3C2) | 1.4 TSI EcoFuel | CDGA | 150 | 1390 | 2009 - 2010 |
| VW | PASSAT B6 (3C2) | 1.6 | BSE, BSF | 102 | 1595 | 2005 - 2010 |
| VW | PASSAT B6 (3C2) | 1.6 FSI | BLF | 115 | 1598 | 2005 - 2008 |
| VW | PASSAT B6 (3C2) | 1.6 TDI | CAYC | 105 | 1598 | 2009 - 2010 |
| VW | PASSAT B6 (3C2) | 1.8 TSI | CDAB, CGYA / BZB, CDAA | 152,160 | 1798 | 2007 - 2010 |
| VW | PASSAT B6 (3C2) | 1.9 TDI | BKC, BLS, BXE | 105 | 1896 | 2005 - 2010 |
| VW | PASSAT B6 (3C2) | 2.0 TFSI | AXX, BPY, BWA, CAWB, CBFA, CCTA, CCZA | 200 | 1984 | 2005 - 2010 |
| VW | PASSAT B6 (3C2) | 2.0 FSI 4motion | BLX, BLY, BVX | 150 | 1984 | 2005 - 2010 |
| VW | PASSAT B6 (3C2) | 2.0 TDI | BMR, CBBB | 170 | 1968 | 2005 - 2010 |
| VW | PASSAT B6 (3C2) | 2.0 TDI 16V | BKP, CBAB | 140 | 1968 | 2005 - 2010 |
| VW | PASSAT B6 (3C2) | 3.2 FSI 4motion | AXZ | 250 | 3168 | 2005 - 2010 |
| VW | PASSAT B6 (3C2) | 3.6 R36 4motion | BWS | 300 | 3597 | 2007 - 2010 |
| VW | PASSAT B6 Variant (3C5) | 1.4 TSI | CAXA | 122 | 1390 | 2007 - 2010 |
| VW | PASSAT B6 Variant (3C5) | 1.4 TSI EcoFuel | CDGA | 150 | 1390 | 2009 - 2010 |
| VW | PASSAT B6 Variant (3C5) | 1.6 | BSE, BSF | 102 | 1595 | 2005 - 2010 |
| VW | PASSAT B6 Variant (3C5) | 1.6 FSI | BLF | 115 | 1598 | 2005 - 2008 |
| VW | PASSAT B6 Variant (3C5) | 1.6 TDI | CAYC | 105 | 1598 | 2009 - 2010 |
| VW | PASSAT B6 Variant (3C5) | 1.8 TSI | CDAB, CGYA / BZB, CDAA | 152,160 | 1798 | 2007 - 2011 |
| VW | PASSAT B6 Variant (3C5) | 1.9 TDI | BKC, BLS, BXE | 105 | 1896 | 2005 - 2010 |
| VW | PASSAT B6 Variant (3C5) | 2.0 TFSI | AXX, BPY, BWA, CAWB, CBFA, CCTA, CCZA | 200 | 1984 | 2005 - 2010 |
| VW | PASSAT B6 Variant (3C5) | 2.0 FSI | BLR, BLY, BVY, BVZ | 150 | 1984 | 2005 - 2010 |
| VW | PASSAT B6 Variant (3C5) | 2.0 TDI | BMR, CBBB / CBDC / BMA, CBAA | 170,110,136 | 1968 | 2005 - 2010 |
| VW | PASSAT B6 Variant (3C5) | 2.0 TDI 16V | BKP, CBAB | 140 | 1968 | 2005 - 2010 |
| VW | PASSAT B7 (362) | 1.4 TSI | CAXA | 122 | 1390 | 2010 - 2014 |
| VW | PASSAT B7 (362) | 1.6 TDI | CAYC | 105 | 1598 | 2010 - 2014 |
| VW | PASSAT B7 (362) | 1.8 TSI | CDAA / CDAB | 160,152 | 1798 | 2010 - 2014 |
| VW | PASSAT B7 (362) | 2.0 TDI | CFFB / CFGC / CFGB, CLLA / CFFA | 140,177,170,136 | 1968 | 2010 - 2014 |
| VW | PASSAT B7 (362) | 2.0 TDI 4motion | CFFB / CFGB / CFGC | 140,170,177 | 1968 | 2010 - 2014 |
| VW | PASSAT B7 (362) | 2.0 TSI | CCZB | 210 | 1984 | 2010 - 2014 |
| VW | PASSAT B7 (362) | 3.6 FSI 4motion | BWS | 300 | 3597 | 2011 - 2014 |
| VW | PASSAT B7 (A32, A33) | 2.0 TSI | DDSA | 177 | 1984 | 2017 - 2019 |
| VW | PASSAT B7 (A32, A33) | 1.8 TSI | CPKA, CPRA | 170 | 1798 | 2013 - 2017 |
| VW | PASSAT B7 Variant (365) | 1.4 TSI | CAXA | 122 | 1390 | 2010 - 2014 |
| VW | PASSAT B7 Variant (365) | 1.6 TDI | CAYC | 105 | 1598 | 2010 - 2014 |
| VW | PASSAT B7 Variant (365) | 1.8 TSI | CDAB | 152 | 1798 | 2011 - 2014 |
| VW | PASSAT B7 Variant (365) | 2.0 TDI 4motion | CFGB | 170 | 1968 | 2010 - 2013 |
| VW | PASSAT B7 Variant (365) | 2.0 TSI | CCZB | 210 | 1984 | 2010 - 2015 |
| VW | PASSAT B7 Variant (365) | 3.6 FSI 4motion | BWS | 300 | 3597 | 2011 - 2014 |
| VW | PASSAT CC B6 (357) | 1.4 TSI MultiFuel | CKMA | 160 | 1390 | 2011 - 2012 |
| VW | PASSAT CC B6 (357) | 1.8 TSI | BZB, CDAA / CDAB, CGYA | 160,152 | 1798 | 2008 - 2012 |
| VW | PASSAT CC B6 (357) | 2.0 TDI | CBBB, CFGB, CLLA / CBAA, CFFA / CBAB, CFFB | 170,136,140 | 1968 | 2008 - 2012 |
| VW | PASSAT CC B6 (357) | 2.0 TDI 4motion | CBAB, CFFB | 140 | 1968 | 2009 - 2012 |
| VW | PASSAT CC B6 (357) | 2.0 TSI | CCZB | 211 | 1984 | 2010 - 2012 |
| VW | PASSAT CC B6 (357) | 2.0 TFSI | CAWB, CBFA, CCTA, CCZA | 200 | 1984 | 2008 - 2012 |
| VW | PASSAT CC B6 (357) | 3.6 FSI 4motion | BWS | 300 | 3597 | 2008 - 2011 |
| VW | SCIROCCO III (137, 138) | 1.4 TSI | CAVD, CNWA, CTHD, CTKA / CZDA / CXSB, CZCA / CAXA, CMSB | 160,150,125,122 | 1390,1395 | 2008 - 2017 |
| VW | SCIROCCO III (137, 138) | 2.0 R | CDLK / CDLA / CDLC | 280,265,256 | 1984 | 2009 - 2017 |
| VW | SCIROCCO III (137, 138) | 2.0 TDI | CFGC / CBDB, CFHC / CBBB, CFGB / CUWA, CUXA / CUUB / CFHB | 177,140,170,184,150,136 | 1968 | 2008 - 2017 |
| VW | SCIROCCO III (137, 138) | 2.0 TFSI | CAWB | 200 | 1984 | 2008 - 2009 |
| VW | SCIROCCO III (137, 138) | 2.0 TSI | CULA / CCZB / CULC | 180,210,220 | 1984 | 2009 - 2017 |
| VW | SHARAN (7N1, 7N2) | 1.4 TSI | CAVA, CTHA / CZDA, DJKA | 150 | 1390,1395 | 2010 - 2022 |
| VW | SHARAN (7N1, 7N2) | 2.0 TDI | CFGC (.-11.15), DLUB (11.18-.) / CUWA, DFMA / CUVC (.-11.15), DFLA (.-11.18), DLTA (07.18-.) / CFFB / CFGB / CFFA / CFFE, CUVA, DFLD, DLTC | 177,184,150,140,170,136,115 | 1968 | 2010 - 2022 |
| VW | SHARAN (7N1, 7N2) | 2.0 TDI 4motion | DFMA / CFFB / CUVC, DFLA, DLTA / DLUB | 184,140,150,177 | 1968 | 2011 - 2020 |
| VW | SHARAN (7N1, 7N2) | 2.0 TSI | DEDA | 220 | 1984 | 2015 - 2020 |
| VW | SHARAN (7N1, 7N2) | 2.0 TFSI | CCZA | 200 | 1984 | 2010 - 2015 |
| VW | TOURAN (1T1, 1T2) | 1.4 TSI | BLG, CAVB / BMY, CAVC | 170,140 | 1390 | 2006 - 2010 |
| VW | TOURAN (1T1, 1T2) | 1.4 TSI EcoFuel | CDGA | 150 | 1390 | 2009 - 2010 |
| VW | TOURAN (1T1, 1T2) | 1.6 | BGU (07.03-.), BSE, BSF | 102 | 1595 | 2003 - 2010 |
| VW | TOURAN (1T1, 1T2) | 1.6 FSI | BAG (02.03-.), BLF, BLP | 115 | 1598 | 2003 - 2007 |
| VW | TOURAN (1T1, 1T2) | 1.9 TDI | BKC (08.03-.), BLS, BXE / AVQ (02.03-.) / BRU, BXF, BXJ | 105,100,90 | 1896 | 2003 - 2010 |
| VW | TOURAN (1T1, 1T2) | 2.0 EcoFuel | BSX | 109 | 1984 | 2006 - 2009 |
| VW | TOURAN (1T1, 1T2) | 2.0 FSI | AXW, BLR, BLX, BLY, BVY, BVZ | 150 | 1984 | 2003 - 2007 |
| VW | TOURAN (1T1, 1T2) | 2.0 TDI | BMM / BMN, CFJA / AZV | 140,170,136 | 1968 | 2003 - 2010 |
| VW | TOURAN (1T1, 1T2) | 2.0 TDI 16V | BKD (08.03-.) | 140 | 1968 | 2003 - 2010 |
| VW | TOURAN Box Body/MPV (1T1, 1T2) | 2.0 EcoFuel | BSX | 109 | 1984 | 2006 - н.в. |
| VW | TOURAN Box Body/MPV (1T1, 1T2) | 2.0 FSI | BLR, BLX, BLY, BVY, BVZ | 150 | 1984 | 2004 - 2007 |
| VW | TOURAN Box Body/MPV (1T1, 1T2) | FSI | BAG (.-05.04), BLF (01.05-.), BLP (05.04-05.05) | 116 | 1598 | 2003 - 2006 |
1K0513029ET
1K0513029ES
1K0513029EQ
1K0513029GA
1K0513029DA
1K0513029DB
1K0513029MN
1K0513029GL
1K0513029GQ
1K0513029MM
JZW513025F
Сертификаты
2024
Инструкции
Рекомендации по установке и эксплуатации
Характеристики
| Ход штока, мм: | 215 |
| Ось (сторона установки): | Сзади, слева/справа |
| Тип амортизатора: | Двухтрубный, гидравлический |
| Вид амортизатора: | Масляный с газовым подпором низкого давления |
| Тип верхнего крепления: | Шток |
| Тип нижнего крепления: | Проушина/сайлентблок |
| Диаметр корпуса, мм: | 45 |
| Диаметр штока, мм: | 12,5 |
| Размер резьбы штока: | M10x1 |
| Дополнительная информация: | Для а/м с пакетом для плохих дорог |
| Гарантийный срок: | 2 года / 60 000 км |
| Присоединительная длина 1, мм: | 363±3 |
| Присоединительная длина 2, мм: | 578±3 |
| Товарная линейка: | BLACK |
| Количество на автомобиль: | 2 |
Комплектация
Амортизатор задний
1 шт
Шарнир резинометаллический
1 шт
Гайка крепежная
1 шт
ОЕМ номера
1K0513029ET
1K0513029ES
1K0513029EQ
1K0513029GA
1K0513029DA
1K0513029DB
1K0513029MN
1K0513029GL
1K0513029GQ
1K0513029MM
JZW513025F
Применяемость
Информация по применяемости изделий к конкретной модели автомобиля является справочной
| Марка | Модель | Двигатель | Мощность, лс | Объём двигателя | Год |
|---|---|---|---|---|---|
| AUDI | A3 (8P1) | BGU (05.03-05.05), BSE (06.05-.), BSF (06.05-.), CCSA (05.08-.) | 102 | 1595 | 2003 - 2012 |
| AUDI | A3 (8P1) | BAG (08.03-.), BLF, BLP (06.04-.) | 115 | 1598 | 2003 - 2007 |
| AUDI | A3 (8P1) | CAYC | 105 | 1598 | 2009 - 2012 |
| AUDI | A3 (8P1) | BYT, BZB, CDAA | 160 | 1798 | 2006 - 2012 |
| AUDI | A3 (8P1) | BKC (05.03-.), BLS, BXE | 105 | 1896 | 2003 - 2010 |
| AUDI | A3 (8P1) | AXW (05.03-.), BLR, BLX (06.04-.), BLY (06.04-.), BMB (01.04-.), BVY, BVZ | 150 | 1984 | 2003 - 2008 |
| AUDI | A3 (8P1) | BKD (05.03-.), CBAB, CBEA, CFFB, CLJA | 140 | 1968 | 2003 - 2012 |
| AUDI | A3 (8P1) | AXX, BWA, CAWB, CCZA | 200 | 1984 | 2004 - 2012 |
| AUDI | A3 Sportback (8PA) | CAXC, CMSA | 125 | 1390 | 2007 - 2013 |
| AUDI | A3 Sportback (8PA) | BPU | 150 | 1781 | 2006 - 2008 |
| SEAT | ALHAMBRA (710, 711) | CZDA, DJKA / CAVA, CNWB, CTHA | 150 | 1395,1390 | 2010 - 2022 |
| SEAT | ALHAMBRA (710, 711) | CDAA | 160 | 1798 | 2012 - 2015 |
| SEAT | ALHAMBRA (710, 711) | CUWA, DFMA / CFFA / CFFB / CFGB / CFGC, DLUB / CFFE, CUVA, DFLD, DLTC / CUVC, DFLA, DLTA | 184,136,140,170,177,115,150 | 1968 | 2010 - 2022 |
| SEAT | ALHAMBRA (710, 711) | CFFB / CUVC, DFLA, DLTA / DFMA | 140,150,184 | 1968 | 2011 - 2022 |
| SEAT | ALHAMBRA (710, 711) | CCZA / DEDA | 200,220 | 1984 | 2010 - 2022 |
| SEAT | ALTEA (5P1) | CBZB | 105 | 1197 | 2010 - 2015 |
| SEAT | ALTEA (5P1) | BXW, CGGB | 86 | 1390 | 2006 - 2011 |
| SEAT | ALTEA (5P1) | CAXC | 125 | 1390 | 2007 - 2015 |
| SEAT | ALTEA (5P1) | BGU (06.04-.), BSE, BSF, CCSA | 102 | 1595 | 2004 - 2010 |
| SEAT | ALTEA (5P1) | CHGA | 102 | 1595 | 2009 - 2013 |
| SEAT | ALTEA (5P1) | CAYC / CAYB | 105,90 | 1598 | 2009 - 2015 |
| SEAT | ALTEA (5P1) | BYT, BZB, CDAA | 160 | 1798 | 2007 - 2015 |
| SEAT | ALTEA (5P1) | BJB (06.04-.), BKC (06.04-.), BLS, BXE / BXF | 105,90 | 1896 | 2004 - 2010 |
| SEAT | ALTEA (5P1) | BLR (06.04-.), BLY (06.04-.), BVY, BVZ | 150 | 1984 | 2004 - 2009 |
| SEAT | ALTEA (5P1) | BMN, CEGA / BMM / AZV | 170,140,136 | 1968 | 2004 - 2010 |
| SEAT | ALTEA (5P1) | BKD (06.04-.), CFHC | 140 | 1968 | 2004 - 2015 |
| SEAT | ALTEA (5P1) | BWA | 200 | 1984 | 2006 - 2009 |
| SEAT | ALTEA (5P1) | CMXA | 102 | 1595 | 2010 - 2011 |
| SEAT | ALTEA XL (5P5, 5P8) | CBZB | 105 | 1197 | 2010 - 2015 |
| SEAT | ALTEA XL (5P5, 5P8) | BXW, CGGB | 86 | 1390 | 2006 - 2013 |
| SEAT | ALTEA XL (5P5, 5P8) | CAXC | 125 | 1390 | 2007 - 2015 |
| SEAT | ALTEA XL (5P5, 5P8) | BGU, BSE, BSF, CCSA | 102 | 1595 | 2006 - 2010 |
| SEAT | ALTEA XL (5P5, 5P8) | CHGA | 102 | 1595 | 2009 - 2013 |
| SEAT | ALTEA XL (5P5, 5P8) | CAYC / CAYB | 105,90 | 1598 | 2009 - 2015 |
| SEAT | ALTEA XL (5P5, 5P8) | BYT, BZB, CDAA | 160 | 1798 | 2007 - 2015 |
| SEAT | ALTEA XL (5P5, 5P8) | BKC, BLS, BXE / BXF | 105,90 | 1896 | 2006 - 2010 |
| SEAT | ALTEA XL (5P5, 5P8) | BLS | 105 | 1896 | 2009 - 2010 |
| SEAT | ALTEA XL (5P5, 5P8) | BVY, BVZ | 150 | 1984 | 2006 - 2009 |
| SEAT | ALTEA XL (5P5, 5P8) | BMN, CEGA / BMM | 170,140 | 1968 | 2006 - 2013 |
| SEAT | ALTEA XL (5P5, 5P8) | BKD, CFHC | 140 | 1968 | 2006 - 2015 |
| SEAT | ALTEA XL (5P5, 5P8) | CFHC | 140 | 1968 | 2010 - 2015 |
| SEAT | ALTEA XL (5P5, 5P8) | BMM / BMN, CEGA, CFJA | 140,170 | 1968 | 2007 - 2013 |
| SEAT | ALTEA XL (5P5, 5P8) | BWA | 200 | 1984 | 2006 - 2009 |
| SEAT | ALTEA XL (5P5, 5P8) | CCZB / BWA | 211,200 | 1984 | 2007 - 2015 |
| SEAT | ALTEA XL (5P5, 5P8) | BSE, BSF, CCSA, CMXA | 102 | 1595 | 2006 - 2010 |
| SEAT | LEON (1P1) | CBZB | 105 | 1197 | 2010 - 2012 |
| SEAT | LEON (1P1) | BXW, CGGB | 86 | 1390 | 2006 - 2012 |
| SEAT | LEON (1P1) | CAXC | 125 | 1390 | 2007 - 2012 |
| SEAT | LEON (1P1) | BSE, BSF, CCSA | 102 | 1595 | 2005 - 2012 |
| SEAT | LEON (1P1) | CHGA | 102 | 1595 | 2009 - 2012 |
| SEAT | LEON (1P1) | CAYB / CAYC | 90,105 | 1598 | 2010 - 2012 |
| SEAT | LEON (1P1) | BZB, CDAA | 160 | 1798 | 2007 - 2012 |
| SEAT | LEON (1P1) | BKC, BLS, BXE / BXF | 105,90 | 1896 | 2005 - 2010 |
| SEAT | LEON (1P1) | CDLA | 265 | 1984 | 2009 - 2012 |
| SEAT | LEON (1P1) | BLR, BLY, BVY, BVZ | 150 | 1984 | 2005 - 2010 |
| SEAT | LEON (1P1) | AZV / BMM / BMN, CEGA, CFJA | 136,140,170 | 1968 | 2005 - 2012 |
| SEAT | LEON (1P1) | BKD, CFHC, CLCB | 140 | 1968 | 2005 - 2012 |
| SEAT | LEON (1P1) | BWA / CCZB / BWJ, CDLD | 200,185,211,240 | 1984 | 2005 - 2012 |
| SEAT | LEON (1P1) | BSE, CCSA, CMXA | 102 | 1595 | 2005 - 2013 |
| SEAT | TOLEDO III (5P2) | BXW | 86 | 1390 | 2006 - 2009 |
| SEAT | TOLEDO III (5P2) | CAXC | 125 | 1390 | 2007 - 2009 |
| SEAT | TOLEDO III (5P2) | BGU, BSE, BSF, CCSA | 102 | 1595 | 2004 - 2009 |
| SEAT | TOLEDO III (5P2) | BYT, BZB, CDAA | 160 | 1798 | 2007 - 2009 |
| SEAT | TOLEDO III (5P2) | BJB, BKC, BLS, BXE | 105 | 1896 | 2004 - 2009 |
| SEAT | TOLEDO III (5P2) | BLR, BLY, BVY, BVZ | 150 | 1984 | 2004 - 2009 |
| SEAT | TOLEDO III (5P2) | BMN, CEGA / BMM / AZV | 170,140,136 | 1968 | 2004 - 2009 |
| SEAT | TOLEDO III (5P2) | BKD | 140 | 1968 | 2004 - 2009 |
| SEAT | TOLEDO III (5P2) | BWA | 200 | 1984 | 2005 - 2009 |
| SKODA | OCTAVIA II (1Z3) | CBZB | 105 | 1197 | 2010 - 2013 |
| SKODA | OCTAVIA II (1Z3) | BUD, CGGA / BCA | 80,75 | 1390 | 2004 - 2013 |
| SKODA | OCTAVIA II (1Z3) | CAXA | 122 | 1390 | 2008 - 2013 |
| SKODA | OCTAVIA II (1Z3) | BGU, BSE, BSF, CCSA | 102 | 1595 | 2004 - 2013 |
| SKODA | OCTAVIA II (1Z3) | BLF | 115 | 1598 | 2004 - 2008 |
| SKODA | OCTAVIA II (1Z3) | BSE, CHGA | 102 | 1595 | 2009 - 2012 |
| SKODA | OCTAVIA II (1Z3) | CCSA, CMXA | 102 | 1595 | 2008 - 2013 |
| SKODA | OCTAVIA II (1Z3) | CAYC | 105 | 1598 | 2009 - 2013 |
| SKODA | OCTAVIA II (1Z3) | BZB, CDAA / CDAB | 160,152 | 1798 | 2007 - 2013 |
| SKODA | OCTAVIA II (1Z3) | BJB, BKC, BLS, BXE | 105 | 1896 | 2004 - 2010 |
| SKODA | OCTAVIA II (1Z3) | BLR, BLY, BVY, BVZ | 150 | 1984 | 2004 - 2008 |
| SKODA | OCTAVIA II (1Z3) | BWA, CCZA | 200 | 1984 | 2005 - 2013 |
| SKODA | OCTAVIA II (1Z3) | CFHF, CLCA / BMM / AZV | 110,140,136 | 1968 | 2004 - 2013 |
| SKODA | OCTAVIA II (1Z3) | BKD, CFHC, CLCB | 140 | 1968 | 2004 - 2013 |
| SKODA | OCTAVIA II (1Z3) | BMN, CEGA | 170 | 1968 | 2006 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | CBZB | 105 | 1197 | 2010 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | BCA / BUD, CGGA | 75,80 | 1390 | 2004 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | CAXA | 122 | 1390 | 2008 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | BGU, BSE, BSF, CCSA | 102 | 1595 | 2004 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | BLF | 115 | 1598 | 2004 - 2008 |
| SKODA | OCTAVIA II Combi (1Z5) | CHGA | 102 | 1595 | 2009 - 2012 |
| SKODA | OCTAVIA II Combi (1Z5) | CCSA, CMXA | 102 | 1595 | 2008 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | CAYC | 105 | 1598 | 2009 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | CAYC | 105 | 1598 | 2009 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | BZB, CDAA / CDAB | 160,152 | 1798 | 2007 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | CDAB / CDAA | 152,160 | 1798 | 2008 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | BJB, BKC, BLS, BXE | 105 | 1896 | 2004 - 2010 |
| SKODA | OCTAVIA II Combi (1Z5) | BKC, BLS, BXE | 105 | 1896 | 2004 - 2010 |
| SKODA | OCTAVIA II Combi (1Z5) | BLR, BLY, BVY, BVZ | 150 | 1984 | 2004 - 2008 |
| SKODA | OCTAVIA II Combi (1Z5) | BLX, BLY, BVX | 150 | 1984 | 2004 - 2009 |
| SKODA | OCTAVIA II Combi (1Z5) | BWA, CCZA | 200 | 1984 | 2005 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | BMM / CFHF, CLCA | 140,110 | 1968 | 2005 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | BKD, CFHC, CLCB / AZV | 140,136 | 1968 | 2004 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | BKD, CFHC, CLCB | 140 | 1968 | 2010 - 2013 |
| SKODA | OCTAVIA II Combi (1Z5) | BMM / CFHF | 140,110 | 1968 | 2006 - 2013 |
| SKODA | SUPERB II (3T4) | CAXC | 125 | 1390 | 2008 - 2015 |
| SKODA | SUPERB II (3T4) | CAYC | 105 | 1598 | 2010 - 2015 |
| SKODA | SUPERB II (3T4) | BZB, CDAA / CDAB | 160,152 | 1798 | 2008 - 2015 |
| SKODA | SUPERB II (3T4) | BLS, BXE | 105 | 1896 | 2008 - 2010 |
| SKODA | SUPERB II (3T4) | CBBB, CFGB / BMP | 170,140 | 1968 | 2008 - 2015 |
| SKODA | SUPERB II (3T4) | BKD, CFFB, CLJA | 140 | 1968 | 2009 - 2015 |
| SKODA | SUPERB II (3T4) | CFFB | 140 | 1968 | 2010 - 2015 |
| SKODA | SUPERB II (3T4) | CBBB, CFGB | 170 | 1968 | 2008 - 2015 |
| SKODA | SUPERB II (3T4) | CCZA | 200 | 1984 | 2010 - 2015 |
| SKODA | SUPERB II (3T4) | CDVA | 260 | 3597 | 2008 - 2015 |
| SKODA | SUPERB II Estate (3T5) | CAYC | 105 | 1598 | 2010 - 2015 |
| SKODA | SUPERB II Estate (3T5) | CDAB | 152 | 1798 | 2009 - 2015 |
| SKODA | SUPERB II Estate (3T5) | BLS, BXE | 105 | 1896 | 2009 - 2010 |
| SKODA | SUPERB II Estate (3T5) | BMP / CBBB, CFGB | 140,170 | 1968 | 2009 - 2015 |
| SKODA | SUPERB II Estate (3T5) | BKD, CFFB, CLJA | 140 | 1968 | 2009 - 2015 |
| SKODA | SUPERB II Estate (3T5) | CFFB | 140 | 1968 | 2010 - 2015 |
| SKODA | SUPERB II Estate (3T5) | CBBB, CFGB | 170 | 1968 | 2009 - 2015 |
| SKODA | SUPERB II Estate (3T5) | CCZA | 200 | 1984 | 2010 - 2015 |
| SKODA | SUPERB II Estate (3T5) | CDVA | 260 | 3597 | 2009 - 2015 |
| SKODA | YETI (5L) | CBZB / CYVB | 105,110 | 1197 | 2009 - 2017 |
| SKODA | YETI (5L) | CAXA / CZCA | 122,125 | 1390,1395 | 2010 - 2017 |
| SKODA | YETI (5L) | CZDA | 150 | 1395 | 2015 - 2017 |
| SKODA | YETI (5L) | CWVA | 110 | 1598 | 2014 - 2017 |
| SKODA | YETI (5L) | CAYC | 105 | 1598 | 2010 - 2015 |
| SKODA | YETI (5L) | CDAA / CDAB | 160,152 | 1798 | 2009 - 2017 |
| SKODA | YETI (5L) | CUUB, DFSB / CFHA, CLCA, CUUA, DFSA / CFHC, CLCB | 150,110,140 | 1968 | 2009 - 2017 |
| SKODA | YETI (5L) | CUUB, DFSB / CBDB, CFHC, CLCB / CEGA, CFJA / CFHF, CUUA, DFSA | 150,140,170,110 | 1968 | 2009 - 2017 |
| VW | GOLF PLUS V (5M1, 521) | CBZB / CBZA | 105,86 | 1197 | 2009 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | BCA / BUD, CGGA | 75,80 | 1390 | 2005 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | BLN | 90 | 1390 | 2005 - 2006 |
| VW | GOLF PLUS V (5M1, 521) | BMY / CAVD, CNWA, CTHD / CAXA / BLG | 140,160,122,170 | 1390 | 2006 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | BSE, BSF, CCSA, CMXA | 102 | 1595 | 2005 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | CHGA | 102 | 1595 | 2009 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | BLF | 115 | 1598 | 2004 - 2008 |
| VW | GOLF PLUS V (5M1, 521) | CCSA, CMXA | 102 | 1595 | 2007 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | CAYC / CAYB | 105,90 | 1598 | 2009 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | BRU, BXF, BXJ / BKC, BLS, BXE | 90,105 | 1896 | 2005 - 2009 |
| VW | GOLF PLUS V (5M1, 521) | BLR, BLY, BVY, BVZ | 150 | 1984 | 2005 - 2008 |
| VW | GOLF PLUS V (5M1, 521) | BEE / BMM / AZV, CBDA, CFHB / CBDC, CLCA | 131,140,136,110 | 1968 | 2005 - 2013 |
| VW | GOLF PLUS V (5M1, 521) | BKD, CBDB, CFHC | 140 | 1968 | 2005 - 2013 |
| VW | GOLF V (1K1) | BCA (10.03-.) / BUD | 75,80 | 1390 | 2003 - 2008 |
| VW | GOLF V (1K1) | BKG (10.03-.), BLN | 90 | 1390 | 2003 - 2006 |
| VW | GOLF V (1K1) | CAXA / BLG / BMY | 122,170,140 | 1390 | 2005 - 2008 |
| VW | GOLF V (1K1) | BGU (01.04-.), BSE, BSF, CCSA | 102 | 1595 | 2004 - 2008 |
| VW | GOLF V (1K1) | BAG (10.03-.), BLF, BLP | 115 | 1598 | 2003 - 2008 |
| VW | GOLF V (1K1) | BKC (10.03-.), BLS, BXE / BRU (05.04-.), BXF, BXJ | 105,90 | 1896 | 2003 - 2008 |
| VW | GOLF V (1K1) | BEV, BHY | 116 | 1984 | 2005 - 2008 |
| VW | GOLF V (1K1) | AXW (01.04-.), BLR, BLX, BLY, BVX, BVY, BVZ | 150 | 1984 | 2004 - 2008 |
| VW | GOLF V (1K1) | BLX, BVX | 150 | 1984 | 2004 - 2008 |
| VW | GOLF V (1K1) | AXX, BPY, BWA, CAWB, CBFA, CCTA / BYD | 200,230 | 1984 | 2004 - 2009 |
| VW | GOLF V (1K1) | BDK (01.04-.) | 75 | 1968 | 2004 - 2008 |
| VW | GOLF V (1K1) | BMM / BMN / AZV | 140,170,136 | 1968 | 2003 - 2008 |
| VW | GOLF V (1K1) | BKD (10.03-.) | 140 | 1968 | 2003 - 2008 |
| VW | GOLF V (1K1) | BUB, CBRA | 250 | 3189 | 2005 - 2008 |
| VW | GOLF V Variant (1K5) | BUD | 80 | 1390 | 2007 - 2009 |
| VW | GOLF V Variant (1K5) | CAXA / BLG / BMY / CAVD | 122,170,140,160 | 1390 | 2007 - 2009 |
| VW | GOLF V Variant (1K5) | BSE, BSF, CCSA | 102 | 1595 | 2007 - 2009 |
| VW | GOLF V Variant (1K5) | BLS, BXE | 105 | 1896 | 2007 - 2009 |
| VW | GOLF V Variant (1K5) | BWA, CAWB, CBFA, CCTA | 200 | 1984 | 2007 - 2009 |
| VW | GOLF V Variant (1K5) | AZV, CBDA / BMM | 136,140 | 1968 | 2007 - 2009 |
| VW | GOLF V Variant (1K5) | BKD, CBDB | 140 | 1968 | 2007 - 2009 |
| VW | GOLF VI (5K1) | CBZB / CBZA | 105,86 | 1197 | 2008 - 2012 |
| VW | GOLF VI (5K1) | CGGA | 80 | 1390 | 2008 - 2012 |
| VW | GOLF VI (5K1) | CAXA / CAVD, CNWA, CTHD | 122,160 | 1390 | 2008 - 2012 |
| VW | GOLF VI (5K1) | BSE, BSF, CCSA, CMXA | 102 | 1595 | 2008 - 2012 |
| VW | GOLF VI (5K1) | CHGA | 102 | 1595 | 2009 - 2012 |
| VW | GOLF VI (5K1) | CCSA, CMXA | 102 | 1595 | 2008 - 2012 |
| VW | GOLF VI (5K1) | CAYC / CAYB | 105,90 | 1598 | 2009 - 2012 |
| VW | GOLF VI (5K1) | CDAA | 160 | 1798 | 2009 - 2011 |
| VW | GOLF VI (5K1) | CBFA, CCTA / CDLG / CCZB | 200,235,210 | 1984 | 2009 - 2013 |
| VW | GOLF VI (5K1) | CDLC, CRZA | 256 | 1984 | 2009 - 2013 |
| VW | GOLF VI (5K1) | CBBB, CFGB / CBDC, CLCA / CBAB, CFFB, CJAA / CBAA, CFFA | 170,110,140,136 | 1968 | 2008 - 2013 |
| VW | GOLF VI (5K1) | CBAB, CFFB | 140 | 1968 | 2009 - 2012 |
| VW | GOLF VI Convertible (517) | CBZB | 105 | 1197 | 2011 - 2016 |
| VW | GOLF VI Convertible (517) | CAVD, CNWA, CTHD, CTKA | 160 | 1390 | 2011 - 2016 |
| VW | GOLF VI Convertible (517) | CAYC | 105 | 1598 | 2011 - 2016 |
| VW | GOLF VI Variant (AJ5) | CBZB / CBZA | 105,86 | 1197 | 2009 - 2013 |
| VW | GOLF VI Variant (AJ5) | CGGA | 80 | 1390 | 2009 - 2013 |
| VW | GOLF VI Variant (AJ5) | CAVD, CNWA, CTHD, CTKA / CAXA | 160,122 | 1390 | 2009 - 2013 |
| VW | GOLF VI Variant (AJ5) | BSE, BSF, CCSA | 102 | 1595 | 2009 - 2013 |
| VW | GOLF VI Variant (AJ5) | CAYB / CAYC | 90,105 | 1598 | 2009 - 2013 |
| VW | GOLF VI Variant (AJ5) | CAYC | 105 | 1598 | 2009 - 2013 |
| VW | GOLF VI Variant (AJ5) | CLCA / CBDB, CFHC, CJAA | 110,140 | 1968 | 2009 - 2013 |
| VW | GOLF VI Variant (AJ5) | CCZA | 200 | 1984 | 2009 - 2013 |
| VW | GOLF VII Variant (BA5, BV5) | CJZA | 105 | 1197 | 2013 - 2020 |
| VW | JETTA III (1K2) | BMY / BLG / CAVD / CAXA | 140,170,160,122 | 1390 | 2006 - 2010 |
| VW | JETTA III (1K2) | BGU, BSE, BSF, CCSA | 102 | 1595 | 2004 - 2010 |
| VW | JETTA III (1K2) | BLF | 115 | 1598 | 2005 - 2010 |
| VW | JETTA III (1K2) | BLR, BLX, BLY, BVY, BVZ | 150 | 1984 | 2005 - 2010 |
| VW | JETTA III (1K2) | AZV, CBDA / BMN, CEGA / BMM | 136,170,140 | 1968 | 2005 - 2010 |
| VW | JETTA III (1K2) | BKD, CBDB, CBEA, CJAA | 140 | 1968 | 2005 - 2010 |
| VW | JETTA III (1K2) | AXX, BPY, BWA, CAWB, CBFA, CCTA | 200 | 1984 | 2005 - 2010 |
| VW | JETTA III (1K2) | BGP, BGQ, BTK | 150 | 2480 | 2006 - 2010 |
| VW | JETTA IV (162, 163, AV3, AV2) | CBZB | 105 | 1197 | 2010 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | CYVD | 105 | 1197 | 2014 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | CZCA / CAVA, CTHA / CZDA, CZTA / CAVD, CTHD / CAXA, CMSB | 125,150,160,122 | 1395,1390 | 2011 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | CNLA, CRJA | 170 | 1395 | 2011 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | CWVA / CFNA, CLRA / CFNB | 110,105,86 | 1598 | 2011 - 2018 |
| VW | JETTA IV (162, 163, AV3, AV2) | CBPA, CKJA | 115 | 1984 | 2010 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | CUUB, CVCA, DELA, DGMA / CLCA, CUUA (08.14-12.17) / CFFB, CFHC, CJAA, CLCB | 150,110,140 | 1968 | 2010 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | CPLA, CPPA | 211 | 1984 | 2012 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | CBFA, CCTA, CCZA | 200 | 1984 | 2010 - 2014 |
| VW | JETTA IV (162, 163, AV3, AV2) | CBTA, CBUA, CCCA | 170 | 2480 | 2010 - 2017 |
| VW | JETTA IV (162, 163, AV3, AV2) | CWVB | 90 | 1598 | 2015 - 2018 |
| VW | PASSAT B5.5 Variant (3B6) | ALZ | 102 | 1595 | 2000 - 2005 |
| VW | PASSAT B6 (3C2) | CAXA | 122 | 1390 | 2007 - 2010 |
| VW | PASSAT B6 (3C2) | CDGA | 150 | 1390 | 2009 - 2010 |
| VW | PASSAT B6 (3C2) | BSE, BSF | 102 | 1595 | 2005 - 2010 |
| VW | PASSAT B6 (3C2) | BLF | 115 | 1598 | 2005 - 2008 |
| VW | PASSAT B6 (3C2) | CAYC | 105 | 1598 | 2009 - 2010 |
| VW | PASSAT B6 (3C2) | CDAB, CGYA / BZB, CDAA | 152,160 | 1798 | 2007 - 2010 |
| VW | PASSAT B6 (3C2) | BKC, BLS, BXE | 105 | 1896 | 2005 - 2010 |
| VW | PASSAT B6 (3C2) | AXX, BPY, BWA, CAWB, CBFA, CCTA, CCZA | 200 | 1984 | 2005 - 2010 |
| VW | PASSAT B6 (3C2) | BLX, BLY, BVX | 150 | 1984 | 2005 - 2010 |
| VW | PASSAT B6 (3C2) | BMR, CBBB | 170 | 1968 | 2005 - 2010 |
| VW | PASSAT B6 (3C2) | BKP, CBAB | 140 | 1968 | 2005 - 2010 |
| VW | PASSAT B6 (3C2) | AXZ | 250 | 3168 | 2005 - 2010 |
| VW | PASSAT B6 (3C2) | BWS | 300 | 3597 | 2007 - 2010 |
| VW | PASSAT B6 Variant (3C5) | CAXA | 122 | 1390 | 2007 - 2010 |
| VW | PASSAT B6 Variant (3C5) | CDGA | 150 | 1390 | 2009 - 2010 |
| VW | PASSAT B6 Variant (3C5) | BSE, BSF | 102 | 1595 | 2005 - 2010 |
| VW | PASSAT B6 Variant (3C5) | BLF | 115 | 1598 | 2005 - 2008 |
| VW | PASSAT B6 Variant (3C5) | CAYC | 105 | 1598 | 2009 - 2010 |
| VW | PASSAT B6 Variant (3C5) | CDAB, CGYA / BZB, CDAA | 152,160 | 1798 | 2007 - 2011 |
| VW | PASSAT B6 Variant (3C5) | BKC, BLS, BXE | 105 | 1896 | 2005 - 2010 |
| VW | PASSAT B6 Variant (3C5) | AXX, BPY, BWA, CAWB, CBFA, CCTA, CCZA | 200 | 1984 | 2005 - 2010 |
| VW | PASSAT B6 Variant (3C5) | BLR, BLY, BVY, BVZ | 150 | 1984 | 2005 - 2010 |
| VW | PASSAT B6 Variant (3C5) | BMR, CBBB / CBDC / BMA, CBAA | 170,110,136 | 1968 | 2005 - 2010 |
| VW | PASSAT B6 Variant (3C5) | BKP, CBAB | 140 | 1968 | 2005 - 2010 |
| VW | PASSAT B7 (362) | CAXA | 122 | 1390 | 2010 - 2014 |
| VW | PASSAT B7 (362) | CAYC | 105 | 1598 | 2010 - 2014 |
| VW | PASSAT B7 (362) | CDAA / CDAB | 160,152 | 1798 | 2010 - 2014 |
| VW | PASSAT B7 (362) | CFFB / CFGC / CFGB, CLLA / CFFA | 140,177,170,136 | 1968 | 2010 - 2014 |
| VW | PASSAT B7 (362) | CFFB / CFGB / CFGC | 140,170,177 | 1968 | 2010 - 2014 |
| VW | PASSAT B7 (362) | CCZB | 210 | 1984 | 2010 - 2014 |
| VW | PASSAT B7 (362) | BWS | 300 | 3597 | 2011 - 2014 |
| VW | PASSAT B7 (A32, A33) | DDSA | 177 | 1984 | 2017 - 2019 |
| VW | PASSAT B7 (A32, A33) | CPKA, CPRA | 170 | 1798 | 2013 - 2017 |
| VW | PASSAT B7 Variant (365) | CAXA | 122 | 1390 | 2010 - 2014 |
| VW | PASSAT B7 Variant (365) | CAYC | 105 | 1598 | 2010 - 2014 |
| VW | PASSAT B7 Variant (365) | CDAB | 152 | 1798 | 2011 - 2014 |
| VW | PASSAT B7 Variant (365) | CFGB | 170 | 1968 | 2010 - 2013 |
| VW | PASSAT B7 Variant (365) | CCZB | 210 | 1984 | 2010 - 2015 |
| VW | PASSAT B7 Variant (365) | BWS | 300 | 3597 | 2011 - 2014 |
| VW | PASSAT CC B6 (357) | CKMA | 160 | 1390 | 2011 - 2012 |
| VW | PASSAT CC B6 (357) | BZB, CDAA / CDAB, CGYA | 160,152 | 1798 | 2008 - 2012 |
| VW | PASSAT CC B6 (357) | CBBB, CFGB, CLLA / CBAA, CFFA / CBAB, CFFB | 170,136,140 | 1968 | 2008 - 2012 |
| VW | PASSAT CC B6 (357) | CBAB, CFFB | 140 | 1968 | 2009 - 2012 |
| VW | PASSAT CC B6 (357) | CCZB | 211 | 1984 | 2010 - 2012 |
| VW | PASSAT CC B6 (357) | CAWB, CBFA, CCTA, CCZA | 200 | 1984 | 2008 - 2012 |
| VW | PASSAT CC B6 (357) | BWS | 300 | 3597 | 2008 - 2011 |
| VW | SCIROCCO III (137, 138) | CAVD, CNWA, CTHD, CTKA / CZDA / CXSB, CZCA / CAXA, CMSB | 160,150,125,122 | 1390,1395 | 2008 - 2017 |
| VW | SCIROCCO III (137, 138) | CDLK / CDLA / CDLC | 280,265,256 | 1984 | 2009 - 2017 |
| VW | SCIROCCO III (137, 138) | CFGC / CBDB, CFHC / CBBB, CFGB / CUWA, CUXA / CUUB / CFHB | 177,140,170,184,150,136 | 1968 | 2008 - 2017 |
| VW | SCIROCCO III (137, 138) | CAWB | 200 | 1984 | 2008 - 2009 |
| VW | SCIROCCO III (137, 138) | CULA / CCZB / CULC | 180,210,220 | 1984 | 2009 - 2017 |
| VW | SHARAN (7N1, 7N2) | CAVA, CTHA / CZDA, DJKA | 150 | 1390,1395 | 2010 - 2022 |
| VW | SHARAN (7N1, 7N2) | CFGC (.-11.15), DLUB (11.18-.) / CUWA, DFMA / CUVC (.-11.15), DFLA (.-11.18), DLTA (07.18-.) / CFFB / CFGB / CFFA / CFFE, CUVA, DFLD, DLTC | 177,184,150,140,170,136,115 | 1968 | 2010 - 2022 |
| VW | SHARAN (7N1, 7N2) | DFMA / CFFB / CUVC, DFLA, DLTA / DLUB | 184,140,150,177 | 1968 | 2011 - 2020 |
| VW | SHARAN (7N1, 7N2) | DEDA | 220 | 1984 | 2015 - 2020 |
| VW | SHARAN (7N1, 7N2) | CCZA | 200 | 1984 | 2010 - 2015 |
| VW | TOURAN (1T1, 1T2) | BLG, CAVB / BMY, CAVC | 170,140 | 1390 | 2006 - 2010 |
| VW | TOURAN (1T1, 1T2) | CDGA | 150 | 1390 | 2009 - 2010 |
| VW | TOURAN (1T1, 1T2) | BGU (07.03-.), BSE, BSF | 102 | 1595 | 2003 - 2010 |
| VW | TOURAN (1T1, 1T2) | BAG (02.03-.), BLF, BLP | 115 | 1598 | 2003 - 2007 |
| VW | TOURAN (1T1, 1T2) | BKC (08.03-.), BLS, BXE / AVQ (02.03-.) / BRU, BXF, BXJ | 105,100,90 | 1896 | 2003 - 2010 |
| VW | TOURAN (1T1, 1T2) | BSX | 109 | 1984 | 2006 - 2009 |
| VW | TOURAN (1T1, 1T2) | AXW, BLR, BLX, BLY, BVY, BVZ | 150 | 1984 | 2003 - 2007 |
| VW | TOURAN (1T1, 1T2) | BMM / BMN, CFJA / AZV | 140,170,136 | 1968 | 2003 - 2010 |
| VW | TOURAN (1T1, 1T2) | BKD (08.03-.) | 140 | 1968 | 2003 - 2010 |
| VW | TOURAN Box Body/MPV (1T1, 1T2) | BSX | 109 | 1984 | 2006 - н.в. |
| VW | TOURAN Box Body/MPV (1T1, 1T2) | BLR, BLX, BLY, BVY, BVZ | 150 | 1984 | 2004 - 2007 |
| VW | TOURAN Box Body/MPV (1T1, 1T2) | BAG (.-05.04), BLF (01.05-.), BLP (05.04-05.05) | 116 | 1598 | 2003 - 2006 |
×
